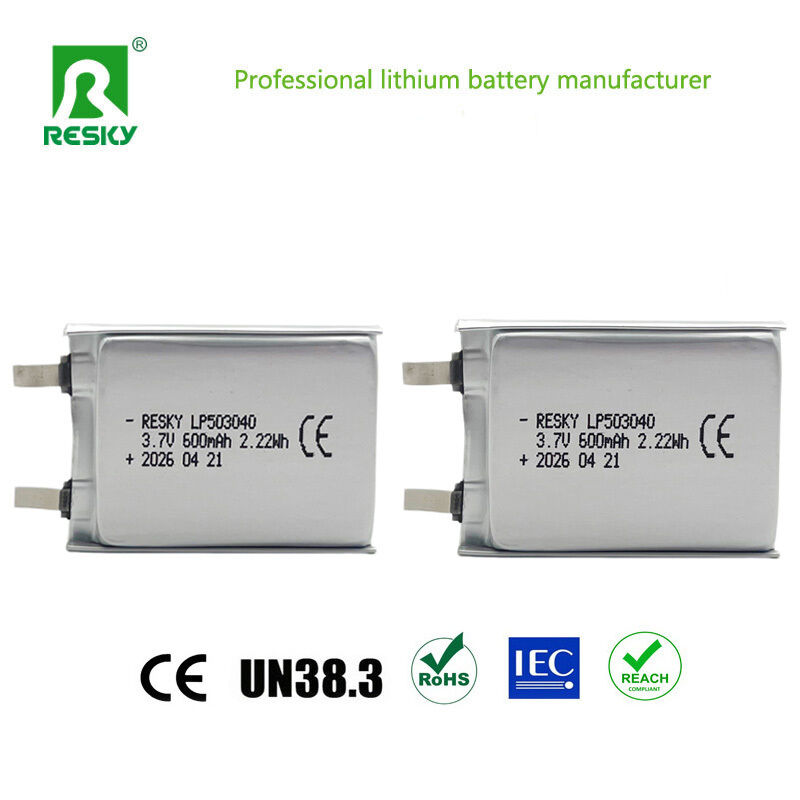

600mAh 3.7V Lithium Polymer Battery - Compact 5x30x40mm LiPo for GPS Trackers

Brand Name:	RESKY
Model Number:	LP503040
MOQ:	100pcs
Price:	Negotiable
Packaging Details:	Paper box
Payment Terms:	Western Union,T/T

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

CE, RoHS, MSDS, Un38.3

Document:

Model NO.:

LP503040

Nominal Capacity:

600mAh

Charging Current:

Continuous Discharging Current:

Max Discharging Current:

Weight:

10PCS

Lead Time:

3-7workdays

Connector:

Jst, Molex....

Specification:

5*30*40mm

Supply Ability:

50000pcs/day

Highlight:

600mAh lithium polymer battery

3.7V LiPo battery for GPS trackers

compact 5x30x40mm lithium polymer battery

Product Description

503040 600mAh 3.7V Lithium Ion Polymer Battery

Compact lithium polymer battery cell designed for GPS trackers and other low-power electronic devices with high energy density and reliable performance.

Product Specifications

Item	Specifications
Batteries	3.7V 600mAh LiPo Battery
Charge Voltage	4.2V
Nominal Voltage	3.7V
Nominal Capacity	600mAh (0.2C Discharge)
Charge Current	Standard Charging: 0.5C Rapid Charge: 1.0C
Standard Charging Method	0.5C CC charge to 4.2V, then CV charge till current ≤0.05C
Charging Time	Standard Charging: 2.75 hours (Ref.) Rapid Charge: 2 hours (Ref.)
Max Charge Current	0.5C
Max Discharge Current	1.0C
Discharge Cut-off Voltage	2.5V ±0.25V (0.2C)
Operating Temperature	Charging: 0°C ~ 45°C Discharging: 0°C ~ 45°C
Storage Temperature	-10°C ~ +45°C
Dimensions	Length: 40±2mm (excluding tabs) Width: 30±0.5mm Thickness: 5±0.2mm
Drop Test	1 meter drop onto concrete ground twice - No fire, no leakage
Cycle Time	≥500 cycles

Key Features

Compact & Lightweight: Small form factor ideal for space-constrained applications
High Nominal Voltage: 3.7V operating voltage compatible with most low-power circuits
High Energy Density: Ternary material system enables over 200Wh/kg energy density
Extended Cycle Life: Supports approximately 300 charge-discharge cycles
Enhanced Safety: Low risk of polymer electrolyte leakage with protection board
Stable Performance: Low internal resistance supports 0.3A-0.6A discharge current

Product Measurements

Applications

Bluetooth headsets and TWS earphones
Smart wearable devices: smart bracelets, smart rings, health monitors
Miniature IoT devices: GPS trackers, shared bicycle lock modules, asset tags
Portable audio devices: small Bluetooth speakers, voice recorders
Medical electronic devices: thermometers, blood glucose meters, portable diagnostic instruments

Product Images
