Lithium Polymer Battery Cell 602535 3.7V 4.2V 400mAh 500mAh 1.85wh Power Lipo Batteries

Brand Name:	RESKY
Model Number:	LP602535
MOQ:	10pcs
Price:	Negotiable
Packaging Details:	Paper box
Payment Terms:	,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, RoHS, MSDS, Un38.3

Model NO.:

LP602535

Electrolyte:

Li(Nicomn)O2

Rechargeable:

Chargeable

Nominal Capacity:

500mAh

Weight:

10PCS

Shipping:

UPS, DHL, FedEx, TNT, By Air, By Sea, Special Line

Specification:

6*25*35mm

HS Code:

8507600090

Supply Ability:

100000PCS/Day

Supply Ability:

50000pcs/day

Highlight:

Lithium Polymer Battery Cell 602535

3.7V Lipo Battery 400mAh

Power Lipo Batteries 500mAh

Product Description

Product Description

Lithium Polymer Battery Cell 602535 3.7V 4.2V 400mAh 500mAh 1.85wh Power Lipo Batteries

NO.	Items	Specifications
1	batteries	3.7v 500mah lipo battery
2	Charge voltage	4.2V
3	Nominal voltage	3.7V
4	Nominal capacity	500mAh 0.2C Discharge
5	Charge current	Standard Charging:0.5C Rapid charge: 1.0C
6	Standard Charging method	0.5C CC(constant current)charge to 4.2V, then CV(constant voltage 4.2V)charge till charge current decline to ≤0.05C
7	Charging time	Standard Charging:2.75hours(Ref.) Rapid charge: 2hours(Ref.)
8	Max.charge current	1.0C
9	Max.discharge current	1.0C
10	Discharge cut-off voltage	2.75V(0.2C)
11	Operating temperature	Charging: 0 °C ~45 °C Discharging:0 °C ~45 °C
12	Storage temperature	-10°C~ +45 °C
13	Dimension	Length: 35±2mm (not including tabs) Width: 25±0.5mm Thickness:6±0.2mm
14	Drop Test	The cell is to be dropped from a height of meter twice onto concrete ground. No fire, no leakage
15	cycle time	≥500times

Application:

Portable Devices:

Laptops and Notebooks: Li-poly batteries contribute to the sleek and lightweight design of modern laptops.

Portable Game Consoles: These devices rely on Li-poly batteries for extended gaming sessions without being tethered to a power outlet.

E-readers: Devices like Kindles use Li-poly batteries to ensure long reading times on a single charge.

Military and Aerospace:

Portable Military Electronics: Li-poly batteries are used in various military devices for their high energy density and reliability.

Satellites and Spacecraft: In aerospace applications, Li-poly batteries are carefully engineered to meet strict safety and performance requirements.

Product features:

1. High security performance

2. Thin thickness, adjustable thickness

3. Lightweight

4. High energy density, compared to other types of lithium batteries, the same size capacity can be achieved

5. Low internal resistance and long cycle life

6. Flexible size available

7. Good discharge performance

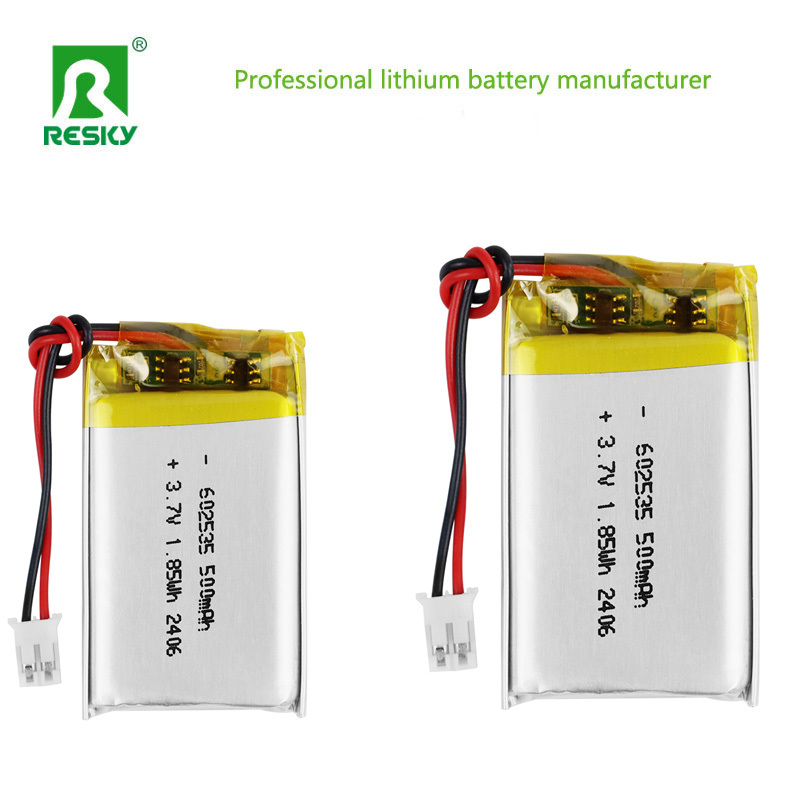

Product Picures:

Lithium Polymer Battery Cell 602535 3.7V 4.2V 400mAh 500mAh 1.85wh Power Lipo Batteries 0
