Lithium Polymer Battery Cell
>
Lithium Ion Polymer Battery 403048 3.7V 600mAh 2.22wh Lipo Battery Cell For Pet Gps Tracker

Lithium Ion Polymer Battery 403048 3.7V 600mAh 2.22wh Lipo Battery Cell For Pet Gps Tracker

Brand Name: RESKY
Model Number: LP403048
MOQ: 100pcs
Price: Negotiable
Packaging Details: Paper box
Payment Terms: Western Union,T/T
Detail Information
Place of Origin:
China
Certification:
CE, RoHS, MSDS, Un38.3, IEC62133
Model NO.:
LP403048
Nominal Capacity:
600mAh
Charging Current:
0.2c
Continuous Discharging Current:
0.5c
Max Discharging Current:
1c
Weight:
11g
MOQ:
100PCS
Lead Time:
5-10workdays
Connector:
Jst, Molex....
Specification:
4*30*48mm
Supply Ability:
50000pcs/day
Highlight:

403048 3.7V Lipo Battery Cell

,

600mAh Lipo Battery Cell

,

2.22wh Lipo Battery Cell

Product Description
Product Description


Lithium Ion Polymer Battery 403048 3.7V 600mAh 2.22wh Lipo Battery Cell For Pet Gps Tracker



NO. Items Specifications
1 batteries  3.7v 600mah lipo battery
2 Charge voltage 4.2V
3 Nominal voltage 3.7V
4 Nominal capacity 600mAh     0.2C Discharge
5 Charge current

Standard Charging:0.5C
Rapid charge:     1.0C
6 Standard Charging method 0.5C CC(constant current)charge to 4.2V, then CV(constant voltage 4.2V)charge till charge current decline to ≤0.05C
7 Charging time

Standard Charging:2.75hours(Ref.)
       Rapid charge:     2hours(Ref.)
8 Max.charge current 0.5C
9 Max.discharge current 1.0C
10 Discharge cut-off voltage 2.5V0.25V(0.2C)
11 Operating temperature Charging:  0 °C ~45 °C
Discharging:0 °C ~45 °C
12 Storage temperature -10°C~ +45 °C
13  Dimension Length: 48±2mm (not including tabs)
Width: 30±0.5mm
Thickness:4±0.2mm
14 Drop Test The cell is to be dropped from a height of meter twice onto concrete ground. No fire, no leakage
15 cycle time ≥500times



Application:





Consumer Electronics:



Smartphones and Tablets: Li-poly batteries are the primary power source for these devices, enabling long battery life and compact designs.



Wearable Devices: From smartwatches to fitness trackers, Li-poly batteries provide the necessary power for extended use without adding significant weight.



Cameras: Digital cameras, especially mirrorless and DSLR models, often use Li-poly batteries to support high-energy operations like continuous shooting and video recording.



Military and Aerospace:



Portable Military Electronics: Li-poly batteries are used in various military devices for their high energy density and reliability.



Satellites and Spacecraft: In aerospace applications, Li-poly batteries are carefully engineered to meet strict safety and performance requirements.



Production steps for lithium polymer battery cell:



‌Positive electrode material preparation‌:



Using ternary materials (composite oxides of nickel, cobalt and manganese) as active materials, positive electrode plates are made through stirring, coating and other processes. ‌

‌Negative electrode materials‌: Carbon materials such as graphite are usually used, and negative electrode plates are made through coating and rolling. ‌

‌Electrolyte‌: It is a mixture of lithium salt (such as lithium hexafluorophosphate) and organic solvent, which directly affects the performance of the battery. ‌

Key production steps:


‌Slurry preparation‌: The positive and negative active materials are mixed with the binder to form a uniform slurry, which is then coated on metal foil (such as copper foil or aluminum foil) after being stirred by a vacuum mixer without bubbles. ‌

‌Pole plate processing‌: The coated pole plates are dried, rolled (densified) and cut to form pole plates of specific sizes. ‌

‌Battery assembly‌: The positive and negative pole plates, separators, etc. are assembled into a battery cell and injected with electrolyte. ‌

‌Formation and testing‌: Activate battery performance through charge and discharge cycles and screen out unqualified products

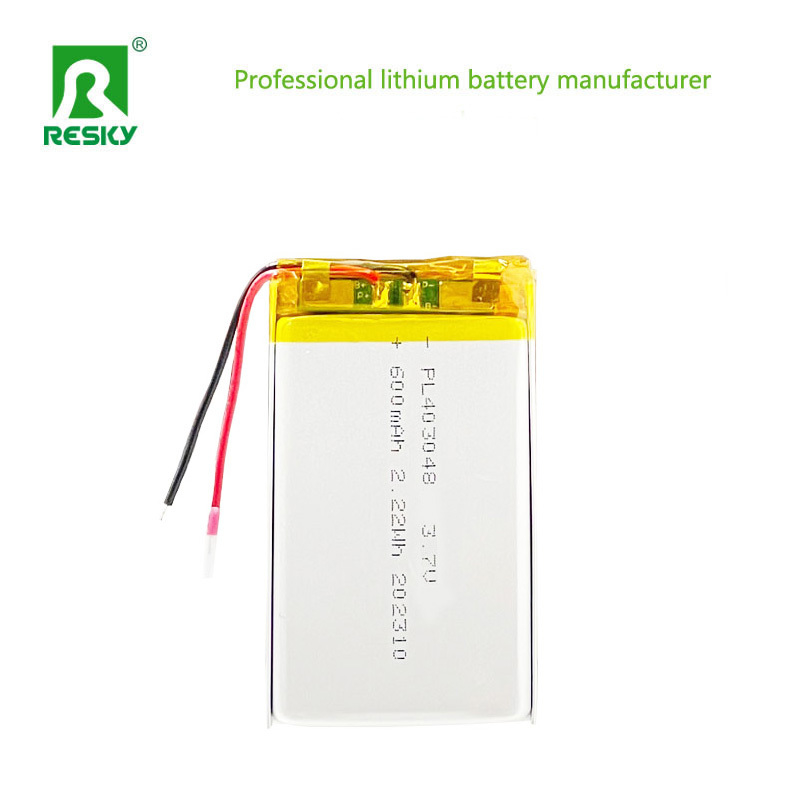

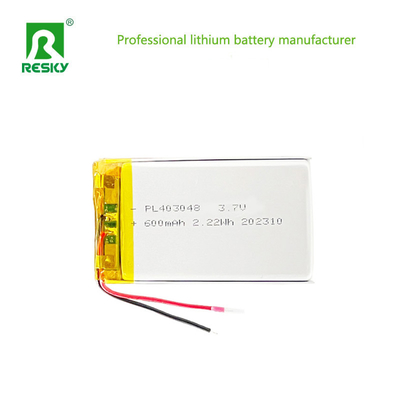

Pictures:

Lithium Ion Polymer Battery 403048 3.7V 600mAh 2.22wh Lipo Battery Cell For Pet Gps Tracker 0Lithium Ion Polymer Battery 403048 3.7V 600mAh 2.22wh Lipo Battery Cell For Pet Gps Tracker 1Lithium Ion Polymer Battery 403048 3.7V 600mAh 2.22wh Lipo Battery Cell For Pet Gps Tracker 2Lithium Ion Polymer Battery 403048 3.7V 600mAh 2.22wh Lipo Battery Cell For Pet Gps Tracker 3Lithium Ion Polymer Battery 403048 3.7V 600mAh 2.22wh Lipo Battery Cell For Pet Gps Tracker 4
