Lithium Polymer Battery Cell

Rechargeable Lipo Batteries 502030 3.7v 250mAh Lithium Ion Battery Cells For Audiovisual

All Category

RC Accessories

Mrs. Alice

alice@szresky.com

0086 13530058480

0086 13530058480

Contact Now

Rechargeable Lipo Batteries 502030 3.7v 250mAh Lithium Ion Battery Cells For Audiovisual

Brand Name:	RESKY
Model Number:	LP502030
MOQ:	100pcs
Price:	Negotiable
Packaging Details:	Paper box
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, RoHS, MSDS, Un38.3

Document:

Nominal Capacity:

250mAh

Charging Current:

Continuous Discharging Current:

Max Discharging Current:

Weight:

Cycle Life:

500cycles

Warranty:

12months

Connector:

Jst, Molex....

OEM Service:

Specification:

9*20*40mm

Supply Ability:

50000pcs/day

Highlight:

Rechargeable Lipo battery 3.7v 250mAh

Lithium Ion battery for audiovisual

502030 Lipo battery with warranty

Product Description

Rechargeable Lipo Batteries 502030 3.7v 250mAh Lithium Ion Battery Cells For Audiovisual

Product Specifications

NO.	Items	Specifications
1	Batteries	3.7v 250mah lipo battery
2	Charge voltage	4.2V
3	Nominal voltage	3.7V
4	Nominal capacity	250mAh 0.2C Discharge
5	Charge current	Standard Charging: 0.5C Rapid charge: 1.0C
6	Standard Charging method	0.5C CC(constant current)charge to 4.2V, then CV(constant voltage 4.2V)charge till charge current decline to ≤0.05C
7	Charging time	Standard Charging: 2.75hours(Ref.) Rapid charge: 2hours(Ref.)
8	Max.charge current	1.0C
9	Max.discharge current	1.0C
10	Discharge cut-off voltage	2.75V(0.2C)
11	Operating temperature	Charging: 0°C ~45°C Discharging: 0°C ~45°C
12	Storage temperature	-10°C~ +45°C
13	Dimension	Length: 50±2mm (not including tabs) Width: 20±0.5mm Thickness: 5±0.2mm
14	Drop Test	The cell is to be dropped from a height of meter twice onto concrete ground. No fire, no leakage
15	Cycle time	≥500times

Main Features

Ultra-Thin & Compact Form Factor: With dimensions of 5mm (thickness) × 20mm (width) × 30mm (length) and a typical weight of 4-6g, it features an ultra-slim, miniaturized design--perfect for devices with strict space constraints.
Balanced Electrical Performance: Boasts a nominal voltage of 3.7V (working voltage range: 3.0V-4.2V) and 250mAh capacity (0.925Wh energy), striking a balance between runtime and size.
Reliable Safety Protection: Adopts a soft-package lithium battery structure with a built-in protection IC. It effectively prevents overcharge, over-discharge, short circuits, and overcurrent.
Durable Cycle Life: Supports 300-500 charge-discharge cycles (under standard conditions). After 300 cycles, it retains over 80% of its initial capacity.
Low Self-Discharge Rate: Loses only 5%-8% of capacity per month at room temperature, making it suitable for devices that require occasional use or long standby.
Wide Environmental Adaptability: Operates stably in a temperature range of -10℃-60℃ (discharge) and 0℃-45℃ (charge).

Main Applications

Mini Wearable Devices:

Children's basic smartwatches
Mini health monitors (e.g., portable oximeter, heart rate trackers)
Smart jewelry (e.g., mini smart bracelets, smart rings)

IoT Micro Sensors:

Smart home mini sensors (e.g., door/window contact sensors)
Industrial mini sensors (e.g., micro pressure sensors)
Agricultural micro sensors (e.g., mini soil moisture sensors)

Small Consumer Electronics:

Wireless earbud charging cases
Mini digital devices (e.g., portable mini voice recorders)
Portable mini LED lights

Medical & Emergency Gadgets:

Fingertip mini blood glucose meters
Emergency mini devices (e.g., portable mini alarms)

Mini Toys & Models:

Micro remote-controlled (RC) toys
Electronic educational toys

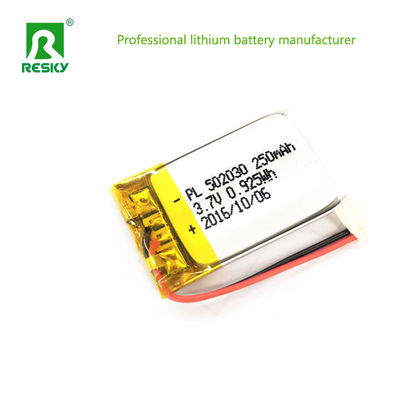

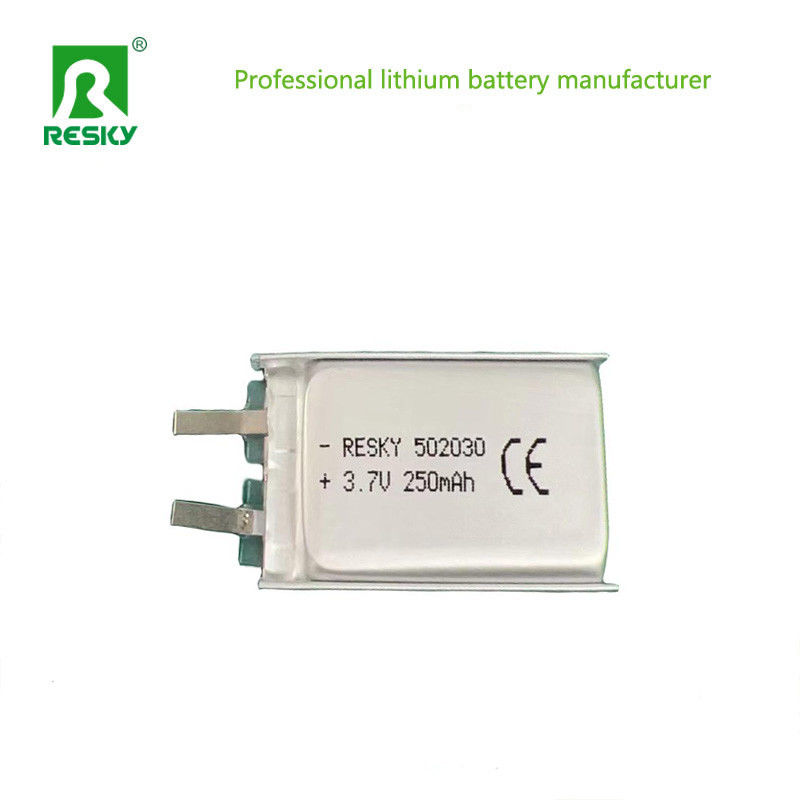

Product Images
