Power Lipo Battery 906090 3.7v 6000mAh 22.2wh Rechargeable Lithium Ion Polymer Battery For Smart Lock

Brand Name:	RESKY
Model Number:	LP906090
MOQ:	10pcs
Price:	Negotiable
Packaging Details:	Exporting standard package
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, RoHS, MSDS, Un38.3,IEC62133,ect

Document:

Model NO.:

LP906090

Nominal Capacity:

6000mAh

Continuous Discharging Current:

Max Discharging Current:

Weight:

10PCS

Cycle Life:

500cycles

Specification:

9*60*90mm

HS Code:

8507600090

Supply Ability:

10000PCS/Day

Supply Ability:

50000pcs/day

Highlight:

3.7v 6000mAh lithium polymer battery

rechargeable lipo battery for smart lock

906090 lithium ion battery with warranty

Product Description

Power Lipo Battery 906090 3.7v 6000mAh 22.2wh Rechargeable Lithium Ion Polymer Battery For Smart Lock

Product Specifications

NO.	Items	Specifications
1	Batteries	3.7v 6000mah lipo battery
2	Charge voltage	4.2V
3	Nominal voltage	3.7V
4	Nominal capacity	6000mAh 0.2C Discharge
5	Charge current	Standard Charging: 0.5C Rapid charge: 1.0C
6	Standard Charging method	0.5C CC(constant current) charge to 4.2V, then CV(constant voltage 4.2V) charge till charge current decline to ≤0.05C
7	Charging time	Standard Charging: 2.75hours(Ref.) Rapid charge: 2hours(Ref.)
Max.charge current	1.0C
9	Max.discharge current	1.0C
10	Discharge cut-off voltage	2.5V±0.25V(0.2C)
11	Operating temperature	Charging: 0°C ~45°C Discharging: 0°C ~45°C
12	Storage temperature	- Johor Bahru10°C~ +45°C
13	Dimension	Length: 90±2mm (not including tabs) Width: 60±0.5mm Thickness: 9±0.5mm
14	Drop Test	The cell is to be dropped from a height of 1 meter twice onto concrete ground. No fire, no leakage
15	Cycle time	≥500 times

Key Advantages

Compact Size & Lightweight: Measures 90×60×9mm (48.6cm³) with 6000m capacity and 457Wh/L energy density

High Safety: Fireproof aluminum-plastic film package with solid/gel electrolyterolyte

Customizable Shapes: Can be designed into L-shaped, curved, or stepped configurations

Long Life: 300+ cycles at 0.5C discharge with ≥80% capacity retention

stacked

Applications

Smart locks and home automation systems
Portable power banks and charging devices
Drones and model aircraft power systems
Camping lanterns and emergency equipment
Medical devices and health monitoring equipment
Portable monitors and display systems
Beauty devices requiring high-rate discharge

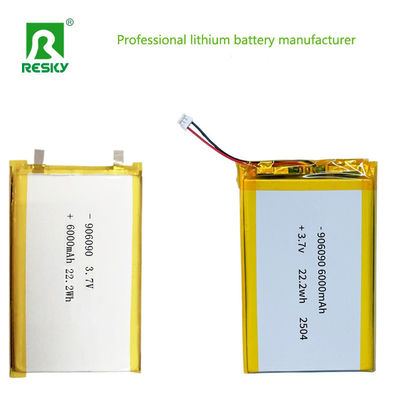

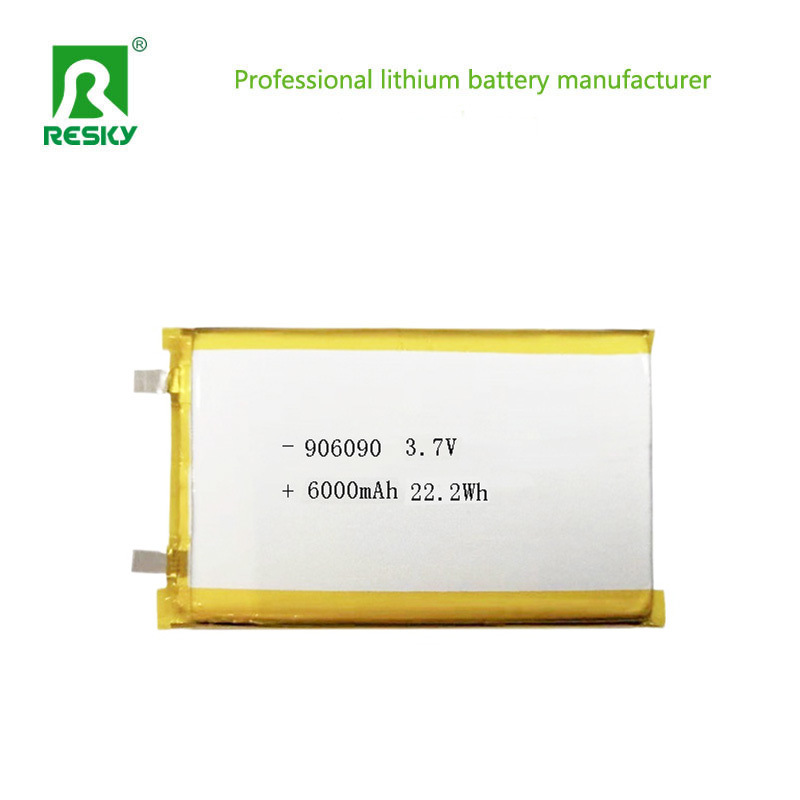

Product Images
