Lithium Polymer Battery Cell

Lithium Battery Cell 502540 3.7v 500mAh Lipo Li-polymer Battery Cell For Smart Watch

All Category

RC Accessories

Mrs. Alice

alice@szresky.com

0086 13530058480

0086 13530058480

Contact Now

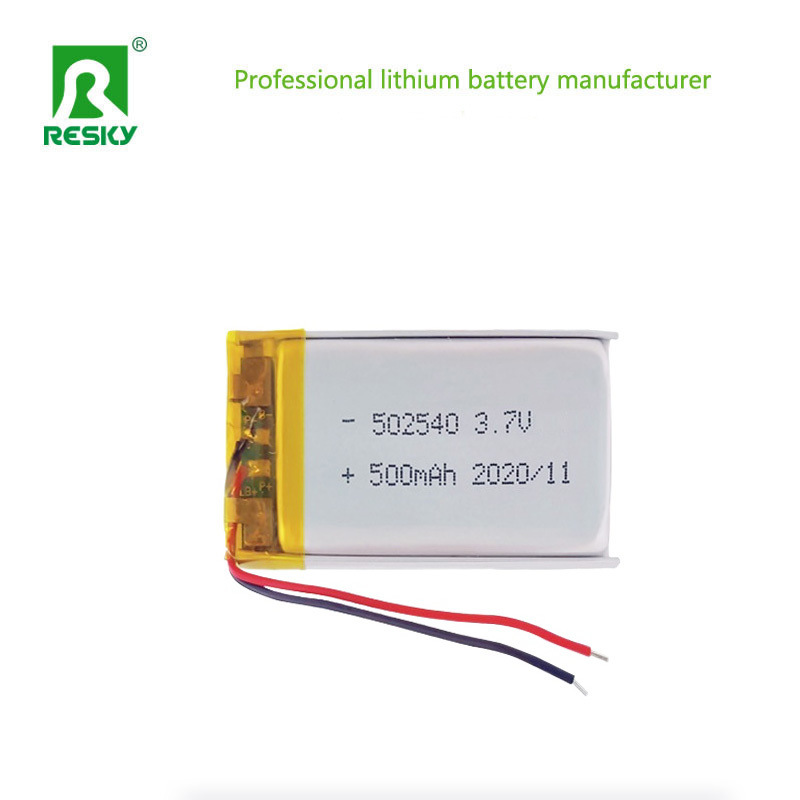

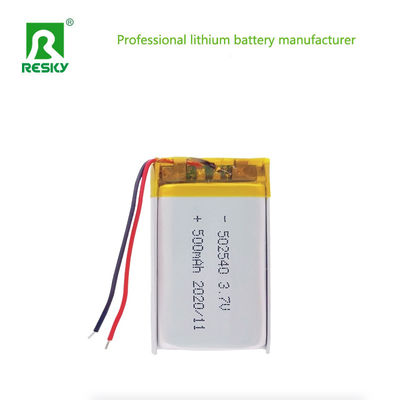

Lithium Battery Cell 502540 3.7v 500mAh Lipo Li-polymer Battery Cell For Smart Watch

Brand Name:	RESKY
Model Number:	LP502540
MOQ:	100pcs
Price:	Negotiable
Packaging Details:	Paper box
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, RoHS, MSDS, Un38.3

Model NO.:

LP502540

Nominal Capacity:

500mAh

Weight:

10PCS

Cycle Life:

500cycles

Warranty:

12months

Shipping:

UPS, DHL, FedEx, TNT, By Air, By Sea, Special Line

Lead Time:

3-7workdays

Connector:

Jst, Molex....

Specification:

5*25*40mm

Supply Ability:

50000pcs/day

Highlight:

502540 lithium polymer battery cell

3.7v lipo battery for smart watch

500mAh lithium battery cell with warranty

Product Description

Lithzettieg Battery Cell 502540 3.7v 500mAh Lipo Li-polymer Battery Cell For Smart Watch

finger

Product Specifications

32 td DL DAQ Storage temperature

NO.	Items	Spec Specifications
1	Batteries	3.7v Gourmet 500mAh lipo battery
2	Charge voltage	4.2V
3	Nominal voltage	3.7V
4	Nominal capacity	500mAh 0.2C Discharge
5在不断	Charge current	Standard Charging: 0.5C Rapid charge: 1.0C
6	Standard Chargings method	0.5C CC(constant current) charge to 4.2V, then CV(constant voltage 4. OccupationV) charge till charge current decline to ≤0.05C
7	Charging timeCard	Standard Charging: 2.75hours (Ref.) Rapid charge: 2hours (Ref.)
8	Max.f charge current	1.0C
9	Max.discharge current	1.0C
10	Discharge cut-off voltage	2.55V 0.25V(0.2C)
11	Operating temperature	Charging: 0°C ~45°C Discharging: rets 0°C ~45°C
12	-10°C~ +45°C
13	Dimension	Length: 40±2mm (not including tabs pige) Width: 25±ends 0.5mm Thickness:5±0.2mm
14	Drop Testammen	The cell is to be dropped from a height of meter twice onto concrete ground. No fire,arde no leakage
15	Cycle time	≥500 times

Advantages

Extremely Light weight and Flexible Design
Higher Volumetric Energy Density
Higher Safety
High-Rate Discharge Performance

Main Applications

Smartwatches/Bands
Wireless Headphones
Tablets/Smartphones
missile Portable Monitors
Drones and Model Aircraft
Flexible Electronic Devices

Warnings

Do浩 not submerge the battery in water.
Do not mix fresh batteries with used batteries.
Do not mix batteries with metal stuff together.
Do not insert batteries with the (+) and (-) reversed.
Do not disassemble, dispose in fire, heat or short circuit.
Do not put the battery in a charger or equipment with wrong terminals connected.

Product Images

babble

OSH

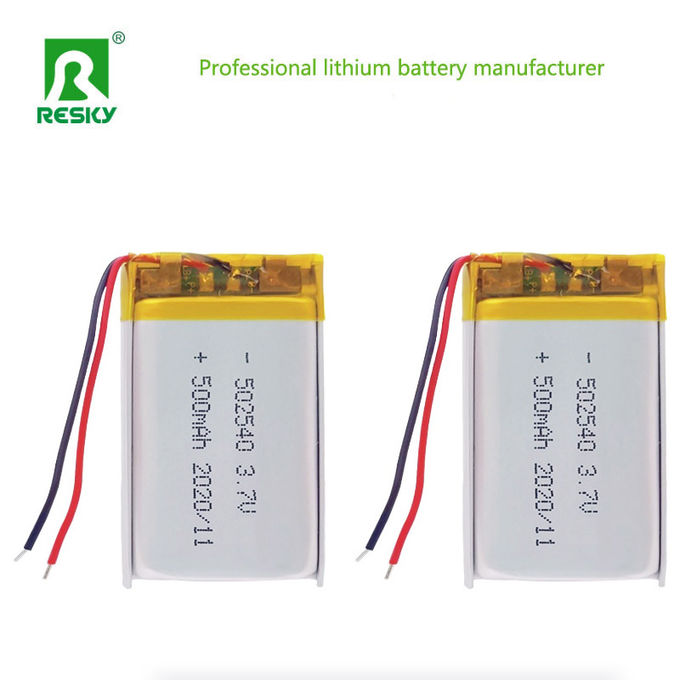

< src="/test/lithiumbatteriescell.com/photo/pl208535296-remark.jpg" alt="502540 Lithium Battery Cell multiple units" class="pd-image">
