Lithium Ion Polymer Battery 602560 3.7v 4.2v 1000mAh 3.7wh Rechargeable Lithium Ion Batteries

Brand Name:	RESKY
Model Number:	LP602560
MOQ:	100pcs
Price:	Negotiable
Packaging Details:	Paper box
Payment Terms:	Western Union,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, RoHS, MSDS, Un38.3, IEC62133,ect

Shape:

Square Battery

Electrolyte:

Li(Nicomn)O2

Rechargeable:

Chargeable

Nominal Capacity:

1000mAh

Weight:

Connector:

Jst, Molex....

Color:

Blue PVC

Specification:

6*25*60mm

HS Code:

8507600090

Supply Ability:

100000PCS/Day

Supply Ability:

50000pcs/day

Highlight:

3.7v lithium polymer battery

1000mAh rechargeable battery

602560 lithium ion battery

Product Description

Lithium Ion Polymer Battery 602560 3.7V 4.2V 1000mAh 3.7Wh Rechargeable Battery

Technical Specifications

Item	Specification
Battery Type	3.7V 1000mAh LiPo Battery
Charge Voltage	4.2V
Nominal Voltage	3.7V
Nominal Capacity	1000mAh @ 0.2C Discharge
Charge Current	Standard: 0.2C Rapid: 1.0C
Standard Charging Method	0.5C CC charge to 4.2V, then CV charge till current ≤0.05C
Charging Time	Standard: 2.75 hours Rapid: 2 hours
Max Charge Current	0.5C
Max Discharge Current	1.0C
Discharge Cut-off Voltage	2.5V±0.25V (0.2C)
Operating Temperature	Charging: 0°C to 45°C Discharging: 0°C to 45°C
Storage Temperature	-10°C to +45°C
Dimensions	60±0.5mm (L) * 25±0.5mm (W) * 6±0.2mm (T)
Drop Test	1m drop onto concrete twice - no fire, no leakage
Cycle Life	≥800 cycles

Ternary Lithium (LiNiCoMnO₂) Advantages

Higher Energy Density: More compact than traditional batteries while maintaining 1000mAh capacity
Extended Cycle Life: 500-1000 charge cycles, outperforming standard lithium batteries
Enhanced Safety: Stable polymer structure with built-in protection against overcharge/over-discharge
Thermal Stability: Reduced heat generation during operation

Recommended Applications

Bluetooth headsets and audio devices
Smart wearables and fitness trackers
Tire pressure monitoring systems
Electronic scales and measurement devices
Other compact electronics requiring stable power

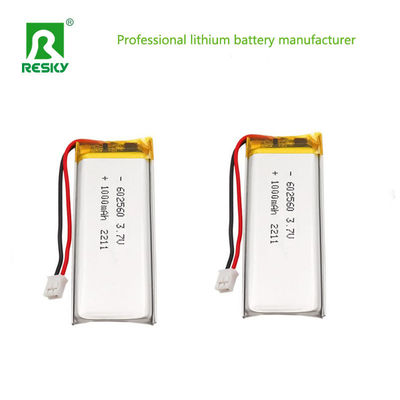

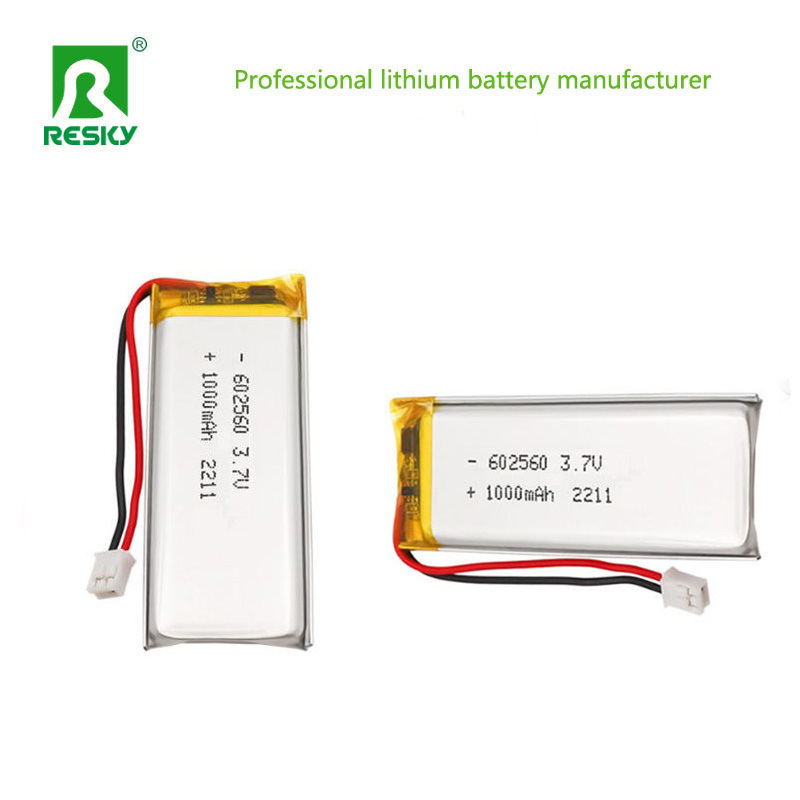

Product Images
