Rechargeable Lithium Ion Batteries LP602560 3.7v 4.2v 1000mAh 3.7wh Lithium Polymer Lipo Batteries

Brand Name:	RESKY
Model Number:	LP602560
MOQ:	100pcs
Price:	Negotiable
Packaging Details:	Paper box
Payment Terms:	Western Union,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, RoHS, MSDS, Un38.3, IEC62133,ect

Shape:

Square Battery

Electrolyte:

Li(Nicomn)O2

Rechargeable:

Chargeable

Nominal Capacity:

1000mAh

Weight:

Connector:

Jst, Molex....

Color:

Blue PVC

Specification:

6*25*60mm

HS Code:

8507600090

Supply Ability:

100000PCS/Day

Supply Ability:

50000pcs/day

Highlight:

rechargeable lithium ion battery 1000mAh

3.7v lithium polymer battery cell

LP602560 lipo battery with warranty

Product Description

Rechargeable Lithium Ion Batteries LP602560 3.7v 4.2v 1000mAh 3.7wh Lithium Polymer Lipo Batteries

Product Specifications

NO.	Items	Specifications
1	Batteries	3.7v 1000mah lipo battery
2	Charge voltage	4.2V
3	Nominal voltage	3.7V
4	Nominal capacity	400mAh @ 0.2C Discharge
5	Charge current	Standard Charging: 0.2C Rapid charge: 1.0C
6	Standard Charging method	0.5C CC(constant current) charge to 4.2V, then CV(constant voltage 4.2V) charge till charge current decline to ≤0.05C
7	Charging time	Standard Charging: 2.75 hours (Ref.) Rapid charge: 2 hours (Ref.)
8	Max. charge current	0.5C
9	Max. discharge current	1.0C
10	Discharge cut-off voltage	2.5V ± 0.25V (0.2C)
11	Operating temperature	Charging: 0°C ~45°C Discharging: 0°C ~45°C
12	Storage temperature	-10°C ~ +45°C
13	Dimension	Length: 60±0.5mm (not including tabs) Width: 25±0.5mm Thickness: 6±0.2mm
14	Drop Test	The cell is to be dropped from a height of meter twice onto concrete ground. No fire, no leakage
15	Cycle time	≥800 times

Advantages of Li(NiCoMn)O₂ Polymer Battery

High Energy Density: Utilizing ternary lithium-ion technology, this battery offers compact size with high capacity, ideal for devices requiring long battery life and lightweight design.
Safety Protection: Built-in protection board provides short-circuit, overcharge, and over-discharge protection for enhanced safety.
Stable Output: Smooth discharge prevents sudden power outages, making it suitable for devices requiring consistent power supply.
Cycle Life: Minimal capacity degradation after 10 cycles demonstrates long-term reliability.

Considerations

Higher Cost: Polymer batteries are more expensive than conventional battery types.
Compatibility Requirements: Requires matching device voltage, capacity, and other parameters - not a universal battery solution.

Main Applications

Small Electronic Devices: Remote-controlled toys, wireless peripherals (mice, keyboards), and mini robots benefit from compact size and long battery life.
Beauty Devices: Rechargeable power source for hydrating and cleansing devices.
Industrial Equipment: Small tools (flashlights) and applications requiring high energy density (drones, power tools).

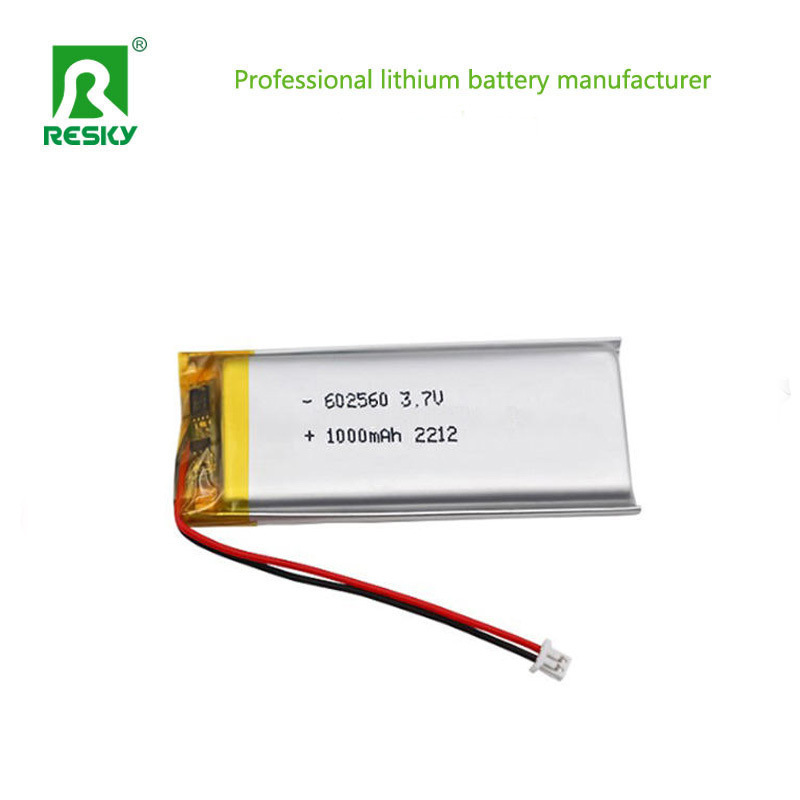

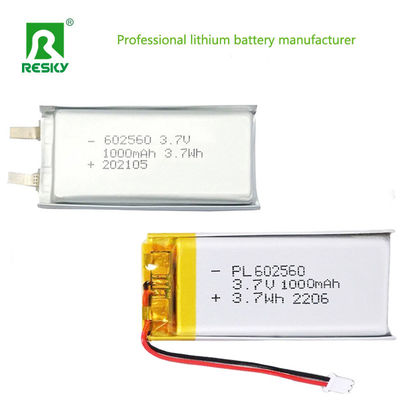

Product Images
