Li-ion Battery LP602530 3.7V 400mAh 1.48wh Solar Lithium Lipo Polymer Battery Cell For Pulse Oximeter

Brand Name:	RESKY
Model Number:	LP602530
MOQ:	100pcs
Price:	Negotiable
Packaging Details:	Standard exporting package
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, RoHS, MSDS, Un38.3, IEC62133

Document:

Model NO.:

LP602530

Capacity:

400mAh

100PCS

Electrolyte:

Li(Nicomn)O2

Cycle Life:

500cycles

Warranty:

12months

Shipping:

UPS, DHL, FedEx, TNT, By Air, By Sea, Special Line

Lead Time:

Within 3-10 Workdays

Connector:

Jst, Molex....

Specification:

6*25*30mm

Supply Ability:

50000pcs/dat

Highlight:

Li-ion battery LP602530 3.7V 400mAh

Lithium polymer battery for pulse oximeter

Solar lithium battery cell with warranty

Product Description

Li-ion Battery LP602530 3.7V 400mAh 1.48wh Solar Lithium Lipo Polymer Battery Cell For Pulse Oximeter

Product Specifications

NO.	Items	Specifications
1	batteries	3.7v 400mah lipo battery
2	Charge voltage	4.2V
3	Nominal voltage	3.7V
4	Nominal capacity	400mAh @ 0.2C Discharge
5	Charge current	Standard Charging: 0.2C Rapid charge: 1.0C
6	Standard Charging method	0.5C CC(constant current) charge to 4.2V, then CV(constant voltage 4.2V) charge till charge current decline to ≤0.05C
7	Charging time	Standard Charging: 2.75 hours (Ref.) Rapid charge: 2 hours (Ref.)
8	Max.charge current	0.5C
9	Max.discharge current	1.0C
10	Discharge cut-off voltage	2.5V±0.25V (0.2C)
11	Operating temperature	Charging: 0°C ~45°C Discharging: 0°C ~45°C
12	Storage temperature	-10°C~ +45°C
13	Dimension	Length: 35±0.5mm (not including tabs) Width: 20±0.5mm Thickness: 6±0.2mm
14	Drop Test	The cell is to be dropped from a height of meter twice onto concrete ground. No fire, no leakage
15	cycle time	≥500 times

Key Charging and Discharging Considerations

Strictly match charging parameters

The upper limit of the charging voltage should not exceed 4.2V (corresponding to the protection board setting), and the lower limit should not be lower than 3.0V. Avoid overcharging (which may cause bulging and leakage) or over-discharging (permanently damaging the battery cells).

It is recommended to use a low charging current of 0.5C (200mA). Avoid using fast charging plugs (such as those used on mobile phones) that exceed 1C (400mA) to prevent excessive current from causing internal heating.

Control the charging and discharging ambient temperature

Maintain an ambient temperature of 0-45°C during charging and -10-60°C during discharging. Avoid charging and discharging in high temperatures (such as in a car under direct sunlight) or low temperatures (such as outdoors in winter). Doing so will significantly shorten the cycle life (normal cycle life is approximately 300-500 cycles, but may drop to less than 200 cycles in extreme temperatures).

Avoid abnormal discharge behavior

Prolonged full-load discharge (e.g., continuous discharge at a 2C rate) is not recommended. A single discharge time of no more than 1 hour is recommended.

Charge the battery immediately when the device indicates a low battery (voltage ≈ 3.2V). Never discharge the battery to full power (voltage < 3.0V).

Daily Usage Recommendations

Device Compatibility and Maintenance

For use only with devices marked "3.7V Small Lithium Polymer Battery" (e.g., smart bracelets, micro sensors). Do not use with other battery specifications (e.g., 3.6V steel-cased batteries) to prevent voltage mismatch and device malfunction.
Inspect the battery regularly (every 1-2 months). If you notice bulging of the aluminum-plastic film or leakage from the edges (e.g., sticky white powder), discontinue use and replace the battery immediately to prevent short circuits caused by continued use.
When the device is idle for an extended period (over 1 month), charge the battery to 3.7-3.8V (approximately 50%-60% capacity) before storing it, rather than fully or emptying it. This will reduce cell degradation.
During idle periods, recharge the battery every 3 months to maintain the voltage around 3.7V to prevent prolonged battery drain.

Storage and Protection Recommendations

Environmental Control

Store at a temperature of 10-25°C (optimally 20°C) and humidity <60%. Avoid humid environments (such as bathrooms) or near heat sources (such as heaters or ovens) to prevent damage to the aluminum-plastic film and electrolyte deterioration.
Store the device in an insulated container (such as a plastic box) away from metal objects (keys, coins) to prevent short circuits (which may cause sudden overheating).

Safe Isolation

Do not store batteries with flammable or explosive materials (e.g., alcohol, lighters). If storing multiple batteries, wrap each battery individually in an insulating bag to prevent contact between the terminals.

Transport Protection Recommendations

Insulation and Cushioning Packaging

When transporting a single battery, wrap the positive and negative terminals with insulating tape (or use a dedicated insulating cap) and then place the battery in bubble wrap or a foam bag to prevent damage to the aluminum-plastic film due to compression during transport.
When transporting in bulk (e.g., 10 or more batteries), use anti-static packaging and space each battery apart to prevent static electricity from collisions and friction.

Avoiding Taboos

During transportation, avoid prolonged exposure to direct sunlight (e.g., in a car trunk in summer) or freezing (outdoor transport in winter). Batteries can be placed in an insulated bag to maintain a temperature between 10-30°C.

Main Applications

Smart Devices

This battery is suitable for devices such as smart speakers, GPS navigation systems, and body cameras due to its compact size, moderate capacity, and USB charging support.

Bluetooth Devices

This battery can be used in low-power devices such as Bluetooth keyboards, wireless microphones, and Bluetooth speakers. These products typically have high requirements for battery size and weight.

Industrial Equipment

Some manufacturers use this battery in industrial walkie-talkies and wireless communication equipment. These applications require a high battery life (over 500 cycles).

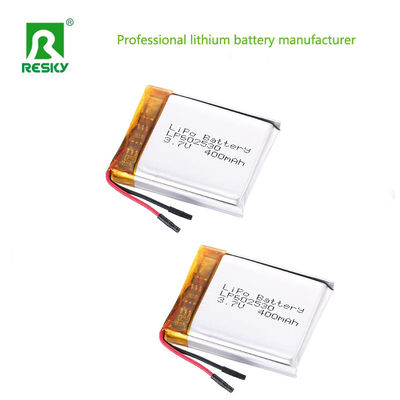

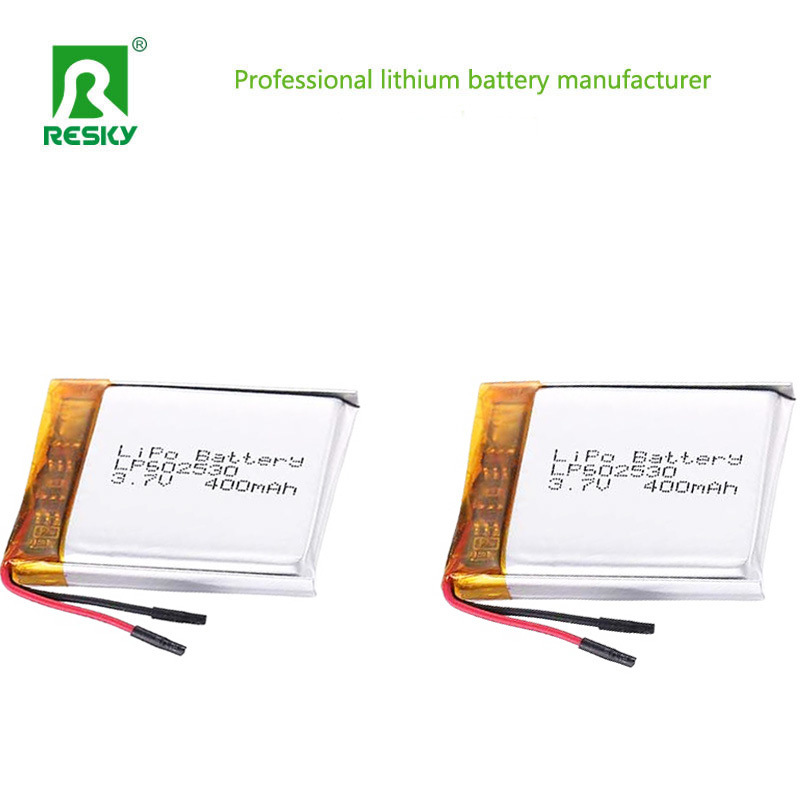

Product Images
