Lithium Polymer Battery Cell 604050 3.7v 1500mAh 5.55wh Rechargeable Lipo Battery Pack

Brand Name:	RESKY
Model Number:	LP604050
MOQ:	10pcs
Price:	Negotiable
Packaging Details:	Paper box
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, RoHS, MSDS, Un38.3, IEC62133

Nominal Capacity:

1500mAh

Weight:

Cycle Life:

500cycles

Warranty:

12months

Shipping:

DHL, FedEx, TNT, By Air, By Sea

Color:

Silver, Blue PVC

Electrolyte:

Li(Nicomn)O2

Specification:

6*40*50mm

HS Code:

8507600090

Supply Ability:

100000PCS/Day

Supply Ability:

50000pcs/day

Highlight:

3.7v 1500mAh lithium polymer battery

604050 rechargeable lipo battery pack

5.55wh lithium polymer battery cell

Product Description

Lithium Polymer Battery Cell 604050 3.7v 1500mAh 5.55wh Rechargeable Lipo Battery Pack

Technical Specifications

NO.	Items	Specifications
1	Batteries	3.7v 1500mah lipo battery
2	Charge voltage	4.2V
3	Nominal voltage	3.7V
4	Nominal capacity	1500mAh 0.2C Discharge
5	Charge current	Standard Charging:0.5C Rapid charge: 1.0C
6	Standard Charging method	0.5C CC(constant current)charge to 4.2V, then CV(constant voltage 4.2V)charge till charge current decline to ≤0.05C
7	Charging time	Standard Charging:2.75hours(Ref.) Rapid charge: 2hours(Ref.)
8	Max.charge current	1.0C
9	Max.discharge current	1.0C
10	Discharge cut-off voltage	2.5V 0.25V(0.2C)
11	Operating temperature	Charging: 0°C ~45°C Discharging:0°C ~45°C
12	Storage temperature	-10°C~ +45°C
13	Dimension	Length: 50±2mm (not including tabs) Width:40±0.5mm Thickness:6±0.2mm
14	Drop Test	The cell is to be dropped from a height of meter twice onto concrete ground. No fire, no leakage
15	Cycle time	≥500times

Product Features

Compact Dimensions: 60.0mm (L) × 40.0mm (W) × 50.5mm (H), ideal for embedded devices
Lightweight: Approximately 15g, suitable for portable applications
Standard Voltage: 3.7V nominal voltage compatible with most consumer electronics
Medium Capacity: 1500mAh nominal capacity for extended operation
Advanced Design: Polymer electrolyte and soft-pack aluminum-plastic film package makes it 20% lighter than liquid lithium batteries
Enhanced Safety: Overcharge/over-discharge protection, passed rigorous safety tests
Flexible Form: Supports bendable design (up to 90°) and custom shapes
Extended Life: Up to 5,00 cycles under optimal conditions (85% depth of discharge)

Applications

Wireless Communication: Wireless landlines, intercoms
Navigation & Smart Devices: Electronic navigation systems, Bluetooth speakers, thermometers
Consumer Electronics: Beauty devices, medical equipment, shavers, fingerprint locks
Industrial Equipment: Industrial instruments, automation systems, security monitoring
Toys & Models: RC models, wireless remote-controlled toys

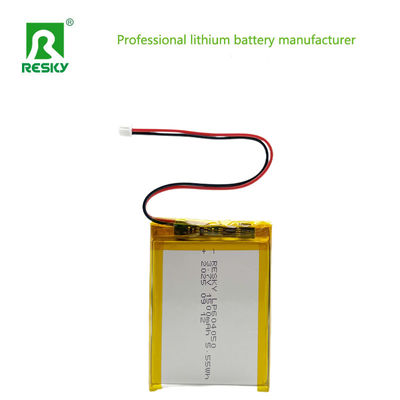

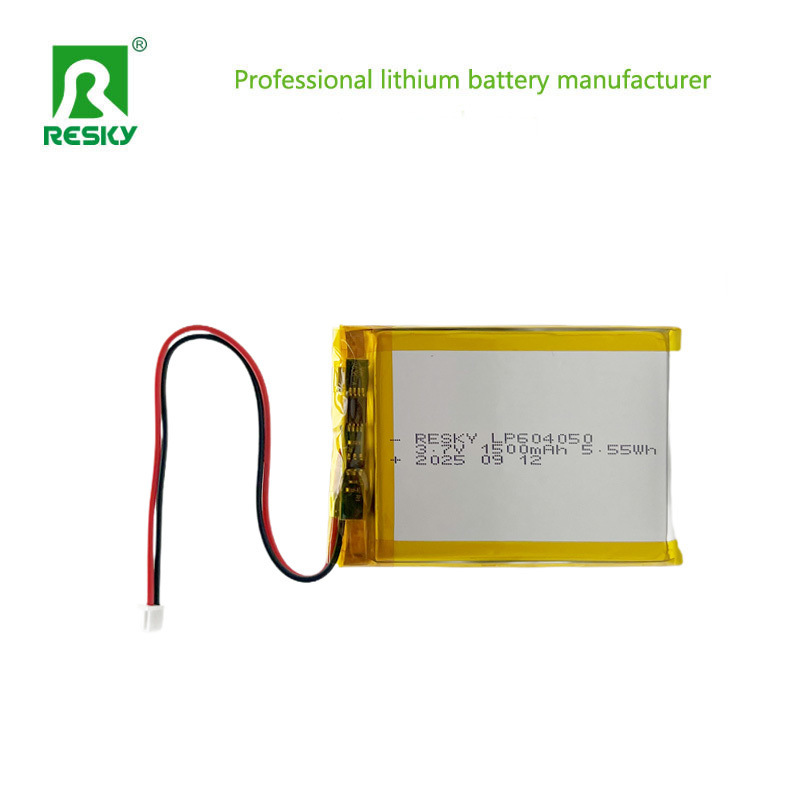

Product Images
