Lithium Polymer Battery Cell 3.7V 901430 360mAh 1.33wh Rechargeable Lithium Polymer Battery Pack

Brand Name:	RESKY
Model Number:	LP901430
MOQ:	100pcs
Price:	Negotiable
Packaging Details:	Paper box
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, RoHS, MSDS, Un38.3, IEC62133

Model NO.:

LP901430

Shape:

Square Battery

Nominal Capacity:

360mAh

Weight:

Cycle Life:

500cycles

Warranty:

12months

Shipping:

UPS, DHL, FedEx, TNT, By Air, By Sea, Special Line

Lead Time:

3-7workdays

Specification:

9*14*30mm

HS Code:

8507600090

Supply Ability:

50000pcs/day

Highlight:

3.7V lithium polymer battery cell

901430 rechargeable battery pack

360mAh lithium polymer battery

Product Description

Product Description

Lithium Polymer Battery Cell 3.7V 901430 360mAh 1.33wh Rechargeable Lithium Polymer Battery Pack

NO.	Items	Specifications
1	batteries	3.7v 360mah lipo battery
2	Charge voltage	4.2V
3	Nominal voltage	3.7V
4	Nominal capacity	360mAh 0.2C Discharge
5	Charge current	Standard Charging:0.5C Rapid charge: 1.0C
6	Standard Charging method	0.5C CC(constant current)charge to 4.2V, then CV(constant voltage 4.2V)charge till charge current decline to ≤0.05C
7	Charging time	Standard Charging:2.75hours(Ref.) Rapid charge: 2hours(Ref.)
8	Max.charge current	1.0C
9	Max.discharge current	1.0C
10	Discharge cut-off voltage	2.5V 0.25V(0.2C)
11	Operating temperature	Charging: 0 °C ~45 °C Discharging:0 °C ~45 °C
12	Storage temperature	-10°C~ +45 °C
13	Dimension	Length: 30±2mm (not including tabs) Width: 14±0.5mm Thickness:9±0.2mm
14	Drop Test	The cell is to be dropped from a height of meter twice onto concrete ground. No fire, no leakage
15	cycle time	≥500times

Product features:

1. High energy density

The weight of lithium polymer batteries is half that of nickel cadmium or nickel hydrogen batteries of the same capacity, and the volume is 40-50% that of nickel cadmium and 20-30% that of nickel hydrogen.

2. High voltage

The operating voltage of a single lithium polymer battery is 3.7V (average), which is equivalent to three nickel cadmium or nickel hydrogen batteries connected in series.

3. Good safety performance

The outer packaging is aluminum-plastic packaging, which is different from the metal shell of liquid lithium batteries. Due to the use of flexible packaging technology, internal quality hazards can be immediately displayed through deformation of the outer packaging. Once a safety hazard occurs, it will not explode but only swell.

4. Long cycle life

Under normal conditions, the charge and discharge cycle of lithium polymer batteries can exceed 500 times.

5. No pollution

Lithium polymer batteries do not contain harmful metal substances such as cadmium, lead, mercury, etc.

6. No memory effect

The memory effect refers to the phenomenon in which the capacity of nickel cadmium batteries decreases during the charging and discharging cycles. Lithium polymer batteries do not exhibit this effect.

7. Fast charging

Using a constant current and constant voltage charger with a rated voltage of 4.2V can fully charge lithium polymer batteries within one to two hours.

8. Complete range of models

Complete range of models, wide capacity and size range, can be designed according to customer needs, with a single thickness of 0.8-10mm and a capacity of 40mAh~20Ah.

Application:

Consumer electronic devices:

Bluetooth earphones: The high capacity and fast charging characteristics make them an ideal choice for Bluetooth earphones, which can support long-term use. ‌

Driving recorder: Stable performance in high temperature environments, ensuring real-time data updates. ‌
Tire pressure monitoring system: It can provide stable power even under high temperature and sun exposure, ensuring data accuracy. ‌

Other portable devices

Smart wearable devices, such as smart bracelets, watches, etc., require high-density battery support. ‌

Mobile power bank: The 3.7V voltage platform is suitable for powering various devices. ‌

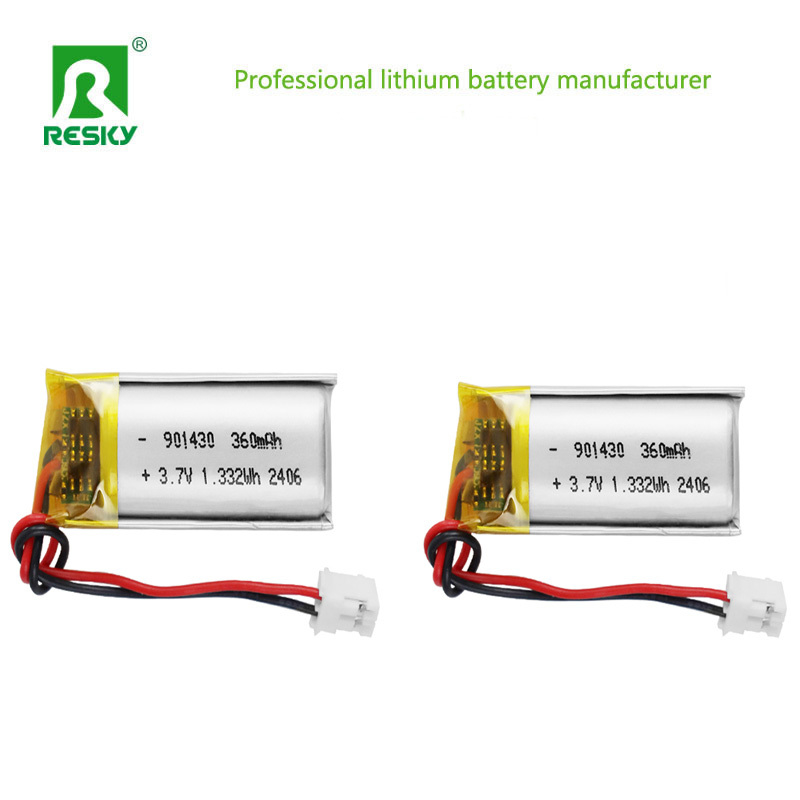

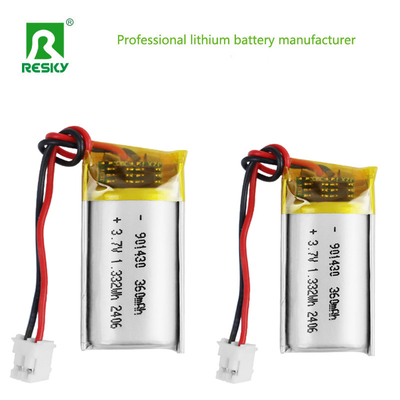

Product Picures:

Lithium Polymer Battery Cell 3.7V 901430 360mAh 1.33wh Rechargeable Lithium Polymer Battery Pack 0
