Lithium Polymer Battery Cell 602540 600mAh 3.7V 2.22wh solar Lipo Batteries for medical monitors

Brand Name:	RESKY
Model Number:	LP602540
MOQ:	100pcs
Price:	Negotiable
Packaging Details:	Standard export package
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, RoHS, MSDS, Un38.3, IEC62133 available

Nominal Capacity:

600mAh

Charging Current:

Continuous Discharging Current:

Max Discharging Current:

Weight:

Cycle Life:

500cycles

Warranty:

12months

Shipping:

UPS, DHL, FedEx, TNT, By Air, By Sea, Special Line

Specification:

6*25*40mm

HS Code:

8507600090

Supply Ability:

50000pcs/day

Highlight:

Lithium Polymer Battery 602540 600mAh

3.7V Lipo Battery for medical monitors

solar Lithium Polymer Battery with warranty

Product Description

Product Description

Lithium Polymer Battery Cell 602540 600mAh 3.7V 2.22wh solar Lipo Batteries for medical monitors

NO.	Items	Specifications
1	batteries	3.7v 600mah lipo battery
2	Charge voltage	4.2V
3	Nominal voltage	3.7V
4	Nominal capacity	600mAh 0.2C Discharge
5	Charge current	Standard Charging:0.5C Rapid charge: 1.0C
6	Standard Charging method	0.5C CC(constant current)charge to 4.2V, then CV(constant voltage 4.2V)charge till charge current decline to ≤0.05C
7	Charging time	Standard Charging:2.75hours(Ref.) Rapid charge: 2hours(Ref.)
8	Max.charge current	1.0C
9	Max.discharge current	1.0C
10	Discharge cut-off voltage	2.75V(0.2C)
11	Operating temperature	Charging: 0 °C ~45 °C Discharging:0 °C ~45 °C
12	Storage temperature	-10°C~ +45 °C
13	Dimension	Length: 40±2mm (not including tabs) Width: 25±0.5mm Thickness:6±0.2mm
14	Drop Test	The cell is to be dropped from a height of meter twice onto concrete ground. No fire, no leakage
15	cycle time	≥500times

Main advantages:

High Safety:

The aluminum-plastic flexible packaging structure is safer than the metal casing of traditional liquid batteries and will not explode in the event of an abnormality.

Lightweight and Thin:

With a thickness of less than 1mm and a weight reduction of 40% compared to steel-cased batteries, it is suitable for space- and weight-sensitive devices (such as Bluetooth headsets and smart wearables).

Long Cycle Life:

With a cycle life of over 500, it is suitable for applications requiring frequent charging and discharging (such as Bluetooth headset charging stations).

Applications:

Smart wearable devices:

This battery is commonly used in wearable devices such as smartwatches and Bluetooth earphones, such as Kaishu storytelling and early education devices. ‌

Wireless device:

Commonly found in wireless electronic devices such as wireless mice, vibrators, and night lights, these products require moderate battery capacity and frequent use. ‌

Beauty device:

Some beauty devices use this type of battery, such as the rechargeable battery that comes with the beauty device. ‌
Other portable devices

Including medical devices, small digital products, etc., these application scenarios have high requirements for battery cycling and safety.

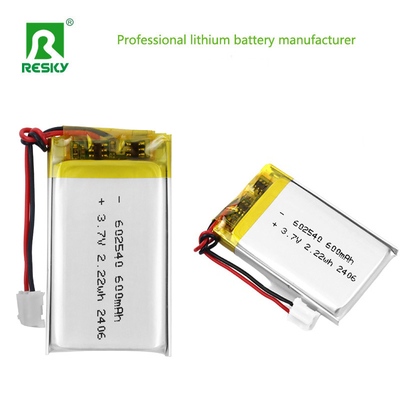

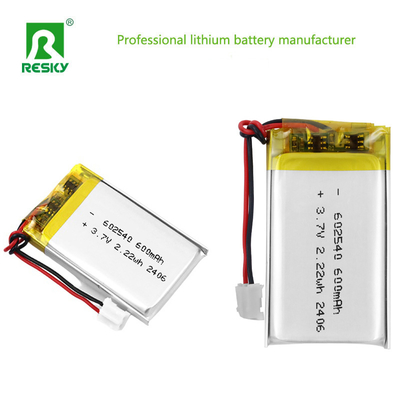

Product Pictures:
