Lithium Polymer Battery Cell

Lithium Polymer Battery Cell 802060 3.7V 1100mAh 4.07wh Solar Lipo Batteries For Electric Meter

All Category

RC Accessories

Mrs. Alice

alice@szresky.com

0086 13530058480

0086 13530058480

Contact Now

Lithium Polymer Battery Cell 802060 3.7V 1100mAh 4.07wh Solar Lipo Batteries For Electric Meter

Brand Name:	RESKY
Model Number:	LP802060
MOQ:	100pcs
Price:	Negotiable
Packaging Details:	Paper box
Payment Terms:	Western Union,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, RoHS, MSDS, Un38.3

Nominal Capacity:

1100mAh

Charging Current:

Continuous Discharging Current:

Max Discharging Current:

Weight:

Cycle Life:

500cycles

Warranty:

12months

Shipping:

UPS, DHL, FedEx, TNT, By Air, By Sea, Special Line

Certification:

CE, ROHS, IEC62133, MSDS, UN38.3 Available

Specification:

8*20*60mm

Supply Ability:

50000pcs/day

Highlight:

802060 lithium polymer battery cell

3.7V 1100mAh Lipo battery

solar Lipo battery for electric meter

Product Description

Lithium Polymer Battery Cell 802060 3.7V 1100mAh 4.07wh Solar Lipo Batteries For Electric Meter

Main parameters:

Product model: LP802060
Nominal capacity:1100mAh
Product size: 8.0x20x60mm
Rated voltage: 3.7V
Charging voltage: 4.2V
Charging temperature: 0 ° C~45 ° C
Discharge temperature: -20 ° C~+60 ° C
Storage temperature: -20 ° C~+35 ° C
Charging current: Standard charging: 0.5C, fast charging: 1.0C
Standard charging method: Charge to 4.25V at 0.5C CC (constant current),
Charge again with CV (constant voltage 4.2V) until the charging current is ≤ 0.05C
Maximum charging current: 1C
Maximum discharge current: 1C
Protection IC parameters: overcharge protection voltage 4.20V ± 0.05V
Over discharge protection voltage 2.7V ± 0.1V

Product features:

1. High security performance

2. Thin thickness, adjustable thickness

3. Lightweight

4. High energy density, compared to other types of lithium batteries, the same size capacity can be achieved

5. Low internal resistance and long cycle life

6. Flexible size available

7. Good discharge performance

Application:

Consumer electronics: power banks, power banks MP5, Digital products such as cameras, projectors, and repeaters

Smart devices: smart toilets, e-books, Bluetooth earphones, portable speakers, etc

Industrial applications: communication base stations, medical monitors, industrial testing equipment, etc

Other Features:

Certification: CE, ROSH, MSDS, UN38.3, IEC62133 etc available

Combination ability: Can be used alone or combined into voltages of 7.4V/11.4V/14.8V, etc

Cycle life: Long cycle life, supporting high-density energy output

Product pictures:

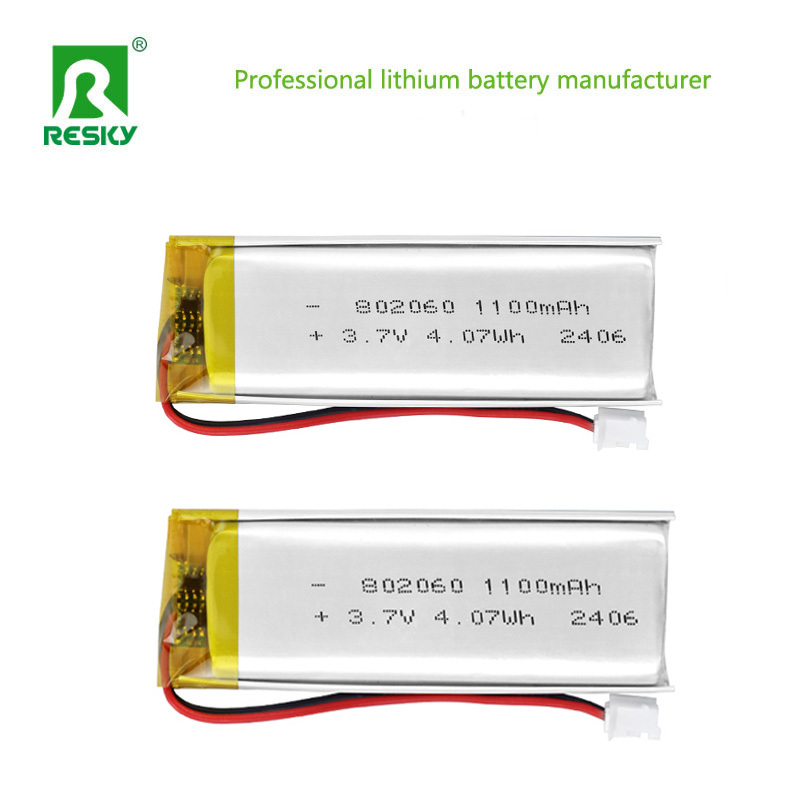

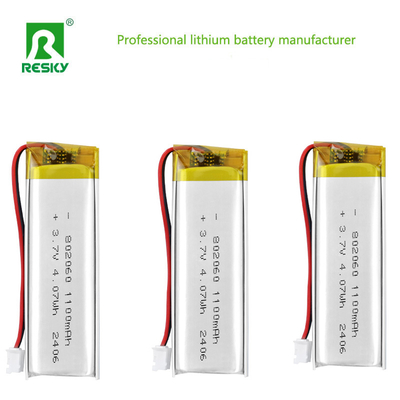

Lithium Polymer Battery Cell 802060 3.7V 1100mAh 4.07wh Solar Lipo Batteries For Electric Meter 0
