Lithium Polymer Battery Cell

Lithium Polymer Battery Cell 802035 3.7V 500mAh 1.85wh Rechargeable Batteries For Learning Devices

All Category

RC Accessories

Mrs. Alice

alice@szresky.com

0086 13530058480

0086 13530058480

Contact Now

Lithium Polymer Battery Cell 802035 3.7V 500mAh 1.85wh Rechargeable Batteries For Learning Devices

Brand Name:	RESKY
Model Number:	LP802035
MOQ:	10pcs
Price:	Negotiable
Packaging Details:	Blister tray package with paper box
Payment Terms:	Western Union,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, RoHS, MSDS,Un38.3,IEC62133

Model NO.:

LP802035

Electrolyte:

Li(Nicomn)O2

Rechargeable:

Chargeable

Nominal Capacity:

500mAh

Charging Current:

Continuous Discharging Current:

Max Discharging Current:

Weight:

100PCS

Warranty:

1year

Supply Ability:

50000pcs/day

Highlight:

802035 lithium polymer battery cell

3.7V rechargeable battery for learning devices

500mAh lithium polymer battery with warranty

Product Description

Product Description

Lithium Polymer Battery Cell 802035 3.7V 500mAh 1.85wh Rechargeable Batteries For Learning Devices

NO.	Items	Specifications
1	batteries	3.7v 500mah lipo battery
2	Charge voltage	4.2V
3	Nominal voltage	3.7V
4	Nominal capacity	500mAh 0.2C Discharge
5	Charge current	Standard Charging:0.2C Rapid charge: 1.0C
6	Standard Charging method	0.5C CC(constant current)charge to 4.2V, then CV(constant voltage 4.2V)charge till charge current decline to ≤0.05C
7	Charging time	Standard Charging:2.75hours(Ref. )Rapid charge: 2hours(Ref.)
8	Max.charge current	0.5C
9	Max.discharge current	1.0C
10	Discharge cut-off voltage	2.5V0.25V(0.2C)
11	Operating temperature	Charging: 0 °C ~45 °C Discharging:0 °C ~45 °C
12	Storage temperature	-10°C~ +45 °C
13	Dimension	Length:35±0.5mm (not including tabs) Width:20±0.5mm Thickness:8±0.2mm
14	Drop Test	The cell is to be dropped from a height of meter twice onto concrete ground. No fire, no leakage
15	cycle time	≥800times

Product features:

1. High security performance

2. Thin thickness, adjustable thickness

3. Lightweight

4. High energy density, compared to other types of lithium batteries, the same size capacity can be achieved

5. Low internal resistance and long cycle life

6. Flexible size available

7. Good discharge performance

Application areas:

Bluetooth earphones, smart wearables, GPS navigation devices, POS machines, power banks, learning devices, tablets, car navigation, MP3,MP4,MP5, Card insertion speaker, wireless mouse, Xiaomi display screen PSP built-in battery, Apple peripheral power supply, tablet computer, mobile DVD, laptop battery, wireless monitoring device, medical equipment, various instruments and meters, LED lamps, traffic signs, portable small appliances, various DIY instruments and meters, metal detectors, and other digital battery products.

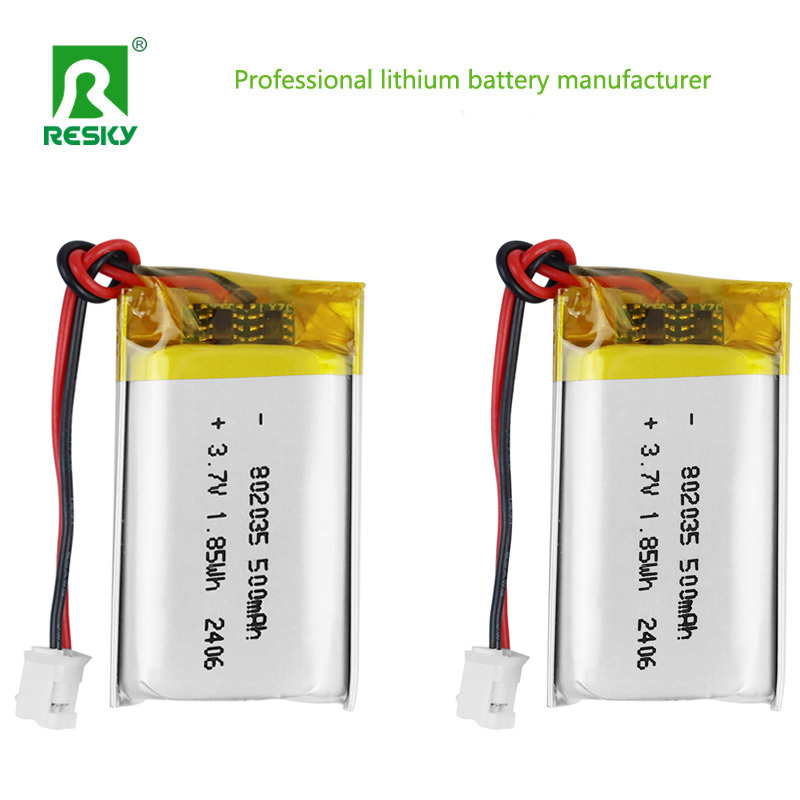

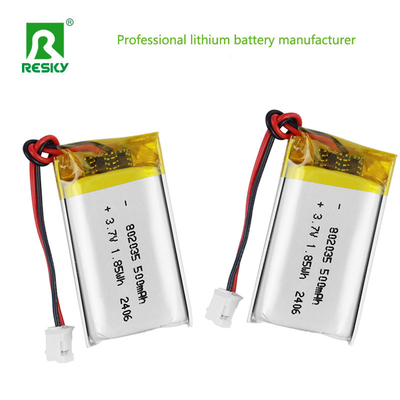

Product pictures:
