Lithium polymer Battery Cell 602030 3.7V 300mAh Rechargeable Lipo Li-polymer Battery For Wareable Device

Brand Name:	RESKY
Model Number:	LP602030
MOQ:	10pcs
Price:	Negotiable
Packaging Details:	Paper box
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, RoHS, MSDS, Un38.3

Document:

Model NO.:

LP602030

Capacity:

300mAh

10PCS

Electrolyte:

Li(Nicomn)O2

Cycle Life:

500cycles

Warranty:

12months

Shipping:

UPS, DHL, FedEx, TNT, By Air, By Sea, Special Line

Lead Time:

Within 3-10 Workdays

Connector:

Jst, Molex....

Specification:

6*20*30mm

Supply Ability:

50000pcs/dat

Highlight:

602030 lithium polymer battery

3.7V rechargeable LiPo battery

wearable device Li-polymer battery

Product Description

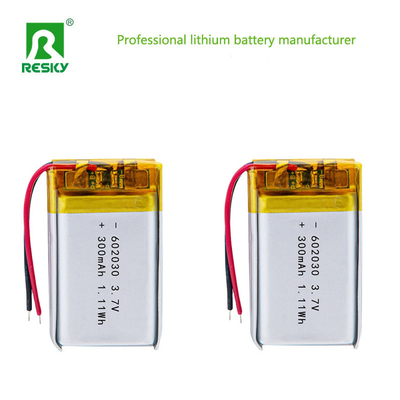

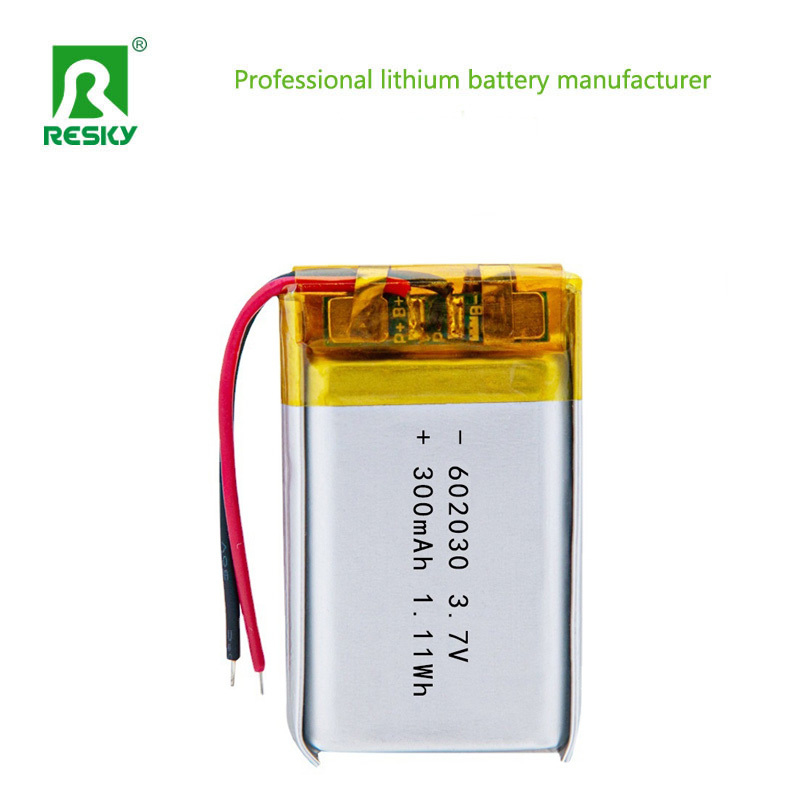

Lithium Polymer Battery Cell 602030 3.7V 300mAh

Rechargeable LiPo Li-polymer battery designed for wearable devices and compact electronics.

Product Attributes

Attribute	Value
Model NO.	LP602030
Capacity	300mAh
MOQ	10PCS
Electrolyte	Li(Nicomn)O2
Cycle Life	500 cycles
Warranty	12 months
Shipping	UPS, DHL, FedEx, TNT, by Air, by Sea, Special Line
Lead Time	Within 3-10 Workdays
Connector	JST, Molex
Specification	62030mm

Technical Specifications

NO.	Items	Specifications
1	Batteries	3.7V 300mAh LiPo battery
2	Charge voltage	4.2V
3	Nominal voltage	3.7V
4	Nominal capacity	300mAh @ 0.2C Discharge
5	Charge current	Standard: 0.2C Rapid: 1.0C
6	Standard Charging method	0.5C CC charge to 4.2V, then CV charge till current ≤0.05C
7	Charging time	Standard: 2.75 hours Rapid: 2 hours
8	Max. charge current	0.5C
9	Max. discharge current	1.0C
10	Discharge cut-off voltage	2.5V±0.25V (0.2C)
11	Operating temperature	Charging: 0°C ~45°C Discharging: 0°C ~45°C
12	Storage temperature	-10°C ~ +45°C
13	Dimension	Length: 30±0.5mm Width: 20±0.5mm Thickness: 6±0.2mm
14	Drop Test	1 meter drop onto concrete (twice) - No fire, no leakage
15	Cycle time	≥800 times

Key Advantages

High Energy Density: Ternary material system with average voltage exceeding 3.7V and low internal resistance (≤200mΩ), supporting 1C discharge rate.
Long Cycle Life: Over 500 cycles with >80% capacity retention.
Wide Temperature Range: Stable operation from -20°C to 60°C.
Safety Features: Aluminum-plastic film packaging with built-in protection against short circuits, overcharge/discharge, and high temperatures.
Fast Charge/Discharge: Supports 0.5C to 1C fast charging with standard charge current up to 1A.

Typical Applications

Consumer Electronics: Bluetooth charging cases, wireless mice, smartwatches, electronic toys.
Industrial Equipment: Dashcams, industrial instruments requiring high-temperature resistance.
Portable Devices: LED lamps, beauty devices requiring high volume and portability.

Product Images
