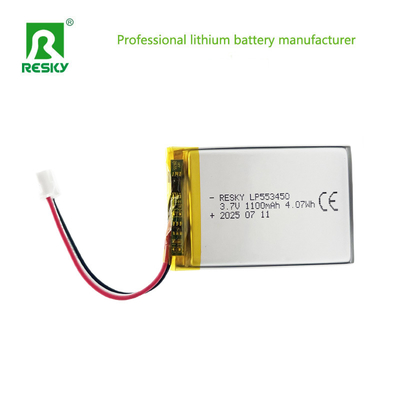

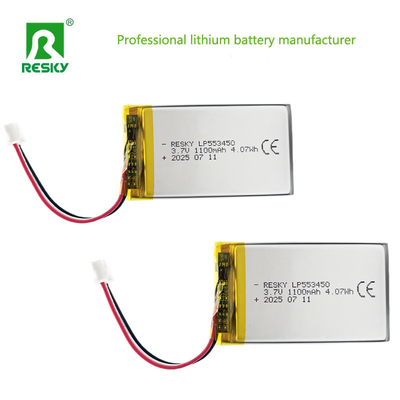

Rechargeable Lithium Batteries 553450 3.7V 1100mAh 1200mAh 4.07wh Storage Lipo Battery Cell

Brand Name:	RESKY
Model Number:	LP553450
MOQ:	10PCS
Price:	Negotiable
Packaging Details:	Blister tray package with paper box
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, RoHS, MSDS, Un38.3, IEC62133

Document:

Model NO.:

LP553450

Nominal Capacity:

1100mAh

Weight:

10PCS

Cycle Life:

500cycles

Warranty:

12months

Shipping:

DHL, FedEx, TNT, By Air, By Sea

HS Code:

8507600090

Supply Ability:

50000pcs/day

Highlight:

Rechargeable lithium polymer battery 3.7V

Lipo battery cell 1100mAh

Storage lithium battery 4.07wh

Product Description

Rechargeable Lithium Batteries 553450 3.7V 1100mAh 1200mAh 4.07wh Storage Lipo Battery Cell

Product Specifications

Attribute	Value
Model NO.	LP553450
Nominal Capacity	1100mAh
Weight	9g
MOQ	10PCS
Cycle Life	500cycles
Warranty	12months
Shipping	DHL, FedEx, TNT, by Air, by Sea
HS Code	8507600090

Technical Details

NO.	Items	Specifications
1	Batteries	3.7v 1100mah lipo battery
2	Charge voltage	4.2V
3	Nominal voltage	3.7V
4	Nominal capacity	1100mAh @ 0.2C Discharge
5	Charge current	Standard Charging: 0.5C Rapid charge: 1.0C
6	Standard Charging method	0.5C CC(constant current) charge to 4.2V, then CV(constant voltage 4.2V) charge till charge current decline to ≤0.05C
7	Charging time	Standard Charging: 2.75hours(Ref.) Rapid charge: 2hours(Ref.)
8	Max.charge current	1.0C
9	Max.discharge current	1.0C
10	Discharge cut-off voltage	2.5V ±0.25V(0.2C)
11	Operating temperature	Charging: 0°C ~45°C Discharging: 0°C ~45°C
12	Storage temperature	-10°C~ +45°C
13	Dimension	Length: 50±0.5mm (not including tabs) Width: 34±0.5mm Thickness: 5.5±0.2mm
14	Drop Test	The cell is to be dropped from a height of 1 meter twice onto concrete ground. No fire, no leakage
15	Cycle time	≥500times

Polymer Lithium Battery Classification

1. Classification by structure:

Wound type: Use the same winding process as the production of liquid lithium-ion batteries to wind up the positive electrode, negative electrode and electrolyte membrane, and wrap them with packaging aluminum foil.
Laminated type: Use the hot pressing process to hot press the positive electrode, negative electrode and electrolyte membrane cut into a certain size together, and wrap them with packaging aluminum foil.

2. Classification by electrolyte:

Gel polymer electrolyte lithium-ion battery: Adds additives to the solid polymer electrolyte to improve the ion conductivity, so that the battery can be used at room temperature.
Solid polymer electrolyte lithium-ion battery: The electrolyte is a mixture of polymer and salt, the ion conductivity at room temperature is low, suitable for high temperature use.
Composite gel polymer positive electrode material lithium-ion battery: Conductive polymer as the positive electrode material, its specific energy is 3 times that of existing lithium-ion batteries, and it is the latest generation of lithium-ion batteries.

Key Advantages

High safety: Made of pure lithium material, equipped with a high-precision Japanese protection board solution, supporting multiple protection functions such as overcharge, over-discharge, short circuit, etc. to avoid battery damage or safety hazards.
Long cycle life: The cycle life can reach more than 500 times, and the capacity remains 85% of the initial capacity after 500 charge and discharge cycles, which is suitable for long-term use scenarios.
Wide temperature range: Supports working environment from -20℃ to 60℃, suitable for equipment operation in low or high temperature environments.
Lightweight design: Compared with traditional batteries, polymer batteries are lighter in weight. With the 553450 size (thickness 5.5mm×width 34.5mm×height 52.2mm), they are suitable for devices that are sensitive to size and weight.

Applications

Wearable devices such as Bluetooth headsets and smart watches
Consumer electronics such as portable speakers and mobile power supplies
High-demand scenarios such as drones and model toys

Product Images
