Li-Ion Lithium Battery 902030 3.7V 500mAh 1.85wh Rechargeable Lipo Battery For VR glassess

Brand Name:	RESKY
Model Number:	LP902030
MOQ:	100pcs
Price:	Negotiable
Packaging Details:	Paper box
Payment Terms:	Western Union,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, RoHS, MSDS, Un38.3, IEC62133

Model NO.:

LP902030

Nominal Capacity:

500mAh

Charging Current:

Continuous Discharging Current:

Max Discharging Current:

Weight:

10PCS

Lead Time:

5-10workdays

Connector:

Jst, Molex....

Specification:

9*20*30mm

Supply Ability:

50000pcs/day

Highlight:

500mAh Rechargeable Lipo Battery

3.7V Rechargeable Lipo Battery

Li-Ion Lithium Battery 902030

Product Description

Li-Ion Lithium Battery 902030 3.7V 500mAh 1.85wh Rechargeable Lipo Battery For VR Glasses

Product Specifications

Model NO.	LP902030
Nominal Capacity	500mAh
Charging Current	0.2c
Continuous Discharging Current	0.5c
Max Discharging Current	1c
Weight	9g
MOQ	10PCS
Lead Time	5-10 workdays
Connector	Jst, Molex....
Specification	92030mm

Technical Details

NO.	Items	Specifications
1	Batteries	3.7v 500mah lipo battery
2	Charge voltage	4.2V
3	Nominal voltage	3.7V
4	Nominal capacity	500mAh @ 0.2C Discharge
5	Charge current	Standard Charging: 0.5C Rapid charge: 1.0C
6	Standard Charging method	0.5C CC(constant current) charge to 4.2V, then CV(constant voltage 4.2V) charge till charge current decline to ≤0.05C
7	Charging time	Standard Charging: 2.75 hours (Ref.) Rapid charge: 2 hours (Ref.)
8	Max. charge current	0.5C
9	Max. discharge current	1.0C
10	Discharge cut-off voltage	2.5V ±0.25V (0.2C)
11	Operating temperature	Charging: 0°C ~45°C Discharging: 0°C ~45°C
12	Storage temperature	-10°C ~ +45°C
13	Dimension	Length: 30±2mm (not including tabs) Width: 20±0.5mm Thickness: 9±0.2mm
14	Drop Test	The cell is to be dropped from a height of meter twice onto concrete ground. No fire, no leakage
15	Cycle time	≥500 times

Quality Assurance

A-grade battery cell: Using lithium battery raw materials from major industry brands, they have sufficient capacity, low internal resistance, long battery life, no inflation, and are manufactured using fully automated processes.
High-performance protection board: Adopt high-strength protection board, stable voltage output, with charge and discharge overcurrent protection, short circuit protection and temperature protection.
High-quality silicone cable: Using high-quality environmentally friendly wire, it is flexible and not easy to break. Different models of wires can be selected according to customer needs.

Applications

MP3/MP4 player: As a mainstream portable device battery, provides long-term battery life support
GPS tracker: Used for outdoor positioning equipment, requiring stable power supply performance
Bluetooth headset/speaker: Adapt to wireless devices, emphasizing lightweight and long battery life

Storage Precautions

Temperature and humidity: Ideal storage temperature is 15-25°C. Avoid high temperature (>35°C) or humid environment.
Power management: Keep the power at 50% for long-term storage. Avoid full charge or over discharge.
Isolation and protection: Keep away from fire and flammable materials. Use fireproof containers with good ventilation.

Certifications

CE, ROHS, MSDS, UN38.3, 1.2m drop testing, IEC62133, etc.

Safety Warnings

Don't immerse the battery in water and seawater. Store in cool and dry environment when not in use.

Do not discard or leave the battery near a heat source as fire or heater.

Only charge using the battery charger specifically designed for this purpose.

Don't reverse the positive and negative terminals.

Don't connect the battery to an electrical outlet directly.

Never disassemble the cells. Battery replacement should only be done by supplier.

Keep the battery away from children.

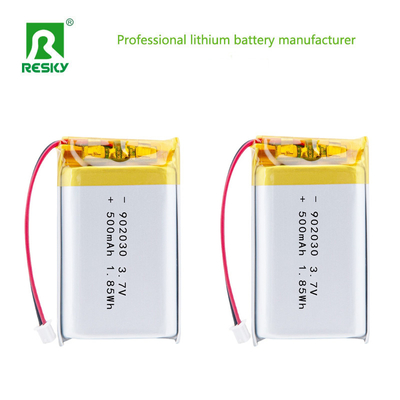

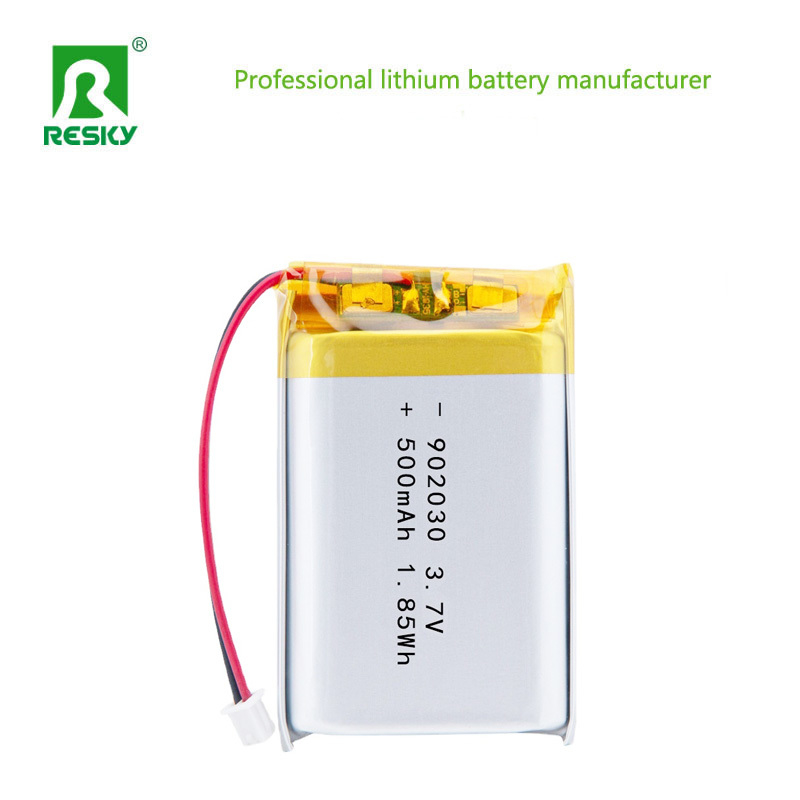

Product Images
