Lithium Polymer Battery Cell

Solar Battery Cell 403048 3.7V 600mAh 2.22wh Lithium Polymer Battery For Smart Watch

All Category

RC Accessories

Mrs. Alice

alice@szresky.com

0086 13530058480

0086 13530058480

Contact Now

Solar Battery Cell 403048 3.7V 600mAh 2.22wh Lithium Polymer Battery For Smart Watch

Brand Name:	RESKY
Model Number:	LP403048
MOQ:	100pcs
Price:	Negotiable
Packaging Details:	Paper box
Payment Terms:	Western Union,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, RoHS, MSDS, Un38.3, IEC62133

Model NO.:

LP403048

Nominal Capacity:

600mAh

Charging Current:

Continuous Discharging Current:

Max Discharging Current:

Weight:

10PCS

Lead Time:

5-10workdays

Connector:

Jst, Molex....

Specification:

4*30*48mm

Supply Ability:

50000pcs/day

Highlight:

403048 Lithium Polymer Battery Cell

Smart Watch Lithium Polymer Battery Cell

600mAh Lithium Polymer Battery Cell

Product Description

Solar Battery Cell 403048 3.7V 600mAh 2.22wh Lithium Polymer Battery For Smart Watch

Product Specifications

Attribute	Value
Model NO.	LP403048
Nominal Capacity	600mAh
Charging Current	0.2c
Continuous Discharging Current	0.5c
Max Discharging Current	1c
Weight	11g
MOQ	10PCS
Lead Time	5-10 workdays
Connector	Jst, Molex....
Specification	43048mm

Technical Details

NO.	Items	Specifications
1	Batteries	3.7v 600mah lipo battery
2	Charge voltage	4.2V
3	Nominal voltage	3.7V
4	Nominal capacity	600mAh 0.2C Discharge
5	Charge current	Standard Charging: 0.5C Rapid charge: 1.0C
6	Standard Charging method	0.5C CC(constant current)charge to 4.2V, then CV(constant voltage 4.2V)charge till charge current decline to ≤0.05C
7	Charging time	Standard Charging: 2.75hours(Ref.) Rapid charge: 2hours(Ref.)
8	Max.charge current	0.5C
9	Max.discharge current	1.0C
10	Discharge cut-off voltage	2.5V0.25V(0.2C)
11	Operating temperature	Charging: 0°C ~45°C Discharging: 0°C ~45°C
12	Storage temperature	-10°C~ +45°C
13	Dimension	Length: 48±2mm (not including tabs) Width: 30±0.5mm Thickness: 4±0.2mm
14	Drop Test	The cell is to be dropped from a height of meter twice onto concrete ground. No fire, no leakage
15	Cycle time	≥500times

Quality Assurance

A-grade battery cell: Using lithium battery raw materials from major industry brands, they have sufficient capacity, low internal resistance, long battery life, no inflation, and are manufactured using fully automated processes.
High-performance protection board: Adopt high-strength protection board, stable voltage output, with charge and discharge overcurrent protection, short circuit protection and temperature protection, to prevent overcharge and overcurrent from damaging the battery.
High-quality silicone cable: Using high-quality environmentally friendly wire, it is flexible and not easy to break. Different models of wires can be selected according to customer needs to meet different power discharges and prevent safety accidents.

Applications

MP3/MP4 player: As a mainstream portable device battery, it provides long-term battery life support.
GPS tracker: Used for outdoor positioning equipment, requiring stable power supply performance.
Bluetooth headset/speaker: Adapt to wireless devices, emphasizing lightweight and long battery life.

Storage Precautions

Temperature and humidity: The ideal storage temperature is 15-25℃. Avoid high temperature (＞35℃) or humid environment. High temperature will accelerate battery aging, and humidity may cause short circuit or corrosion.
Power management: It is recommended to keep the power at 50% for long-term storage, and avoid full charge or over discharge. Regular charge and discharge cycles can maintain battery health.
Isolation and protection: Keep away from fire and flammable materials. Use fireproof containers or fireproof bags when storing, and ensure good ventilation.

Certifications

CE, ROHS, MSDS, UN38.3, 1.2m drop testing, IEC62133, etc.

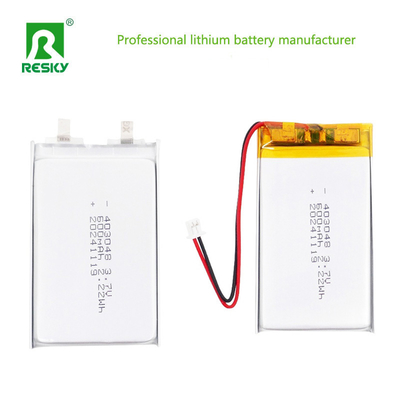

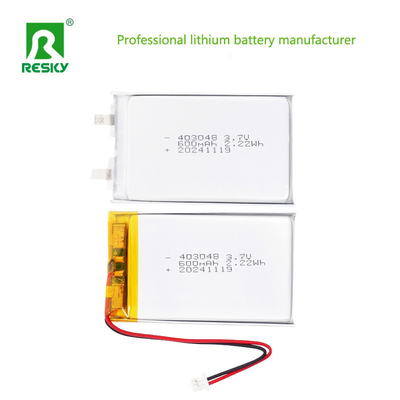

Product Images
