Lithium Polymer Battery Cell

Rechargeable Li-Polymer Battery 102040 902040 3.7V 800mAh 850mAh Lithium Battery Cell

All Category

Lithium Polymer Battery Cell

RC Lithium Battery

Li-Ion Battery Pack

Lithium Polymer Battery Pack

Heated Lithium Battery

Electric Bike Battery

RC Balance Charger

Rechargeable Battery Charger

RC Accessories

Mrs. Alice

alice@szresky.com

0086 13530058480

0086 13530058480

Contact Now

Rechargeable Li-Polymer Battery 102040 902040 3.7V 800mAh 850mAh Lithium Battery Cell

Brand Name:	RESKY
Model Number:	LP102040
MOQ:	10pcs
Price:	Negotiable
Packaging Details:	Paper box
Payment Terms:	Western Union,T/T

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

CE, RoHS, MSDS, Un38.3

Document:

LP902040 750mAh with PCB sp...25.pdf

Nominal Capacity:

850mAh

Charging Current:

0.2c

Continuous Discharging Current:

0.5c

Max Discharging Current:

Weight:

11g

Cycle Life:

500cycles

Warranty:

12months

Shipping:

UPS, DHL, FedEx, TNT, By Air, By Sea, Special Line

Connector:

Jst, Molex....

Specification:

10*20*40mm

Supply Ability:

50000pcs/day

Highlight:

Lithium Battery Cell 102040

Rechargeable Li-Polymer Battery Cell

Rechargeable 3.7V Lithium Battery Cell

Product Description

Rechargeable Li-Polymer Battery 102040 902040 3.7V 800mAh 850mAh Lithium Battery Cell

Product Specifications

Attribute	Value
Nominal Capacity	850mAh
Charging Current	0.2c
Continuous Discharging Current	0.5c
Max Discharging Current	1c
Weight	11g
Cycle Life	500cycles
Warranty	12months
Shipping	UPS, DHL, FedEx, TNT, by Air, by Sea, Special Line
Connector	Jst, Molex....
Specification	102040mm

Technical Details

NO.	Items	Specifications
1	Batteries	3.7v 850mah lipo battery
2	Charge voltage	4.2V
3	Nominal voltage	3.7V
4	Nominal capacity	750mAh 0.2C Discharge
5	Charge current	Standard Charging: 0.5C Rapid charge: 1.0C
6	Standard Charging method	0.5C CC(constant current)charge to 4.2V, then CV(constant voltage 4.2V)charge till charge current decline to ≤0.05C
7	Charging time	Standard Charging: 2.75hours(Ref.) Rapid charge: 2hours(Ref.)
8	Max.charge current	1.0C
9	Max.discharge current	1.0C
10	Discharge cut-off voltage	2.75V(0.2C)
11	Operating temperature	Charging: 0°C ~45°C Discharging: 0°C ~45°C
12	Storage temperature	-10°C~ +45°C
13	Dimension	Length: 40±2mm (not including tabs) Width: 20±0.5mm Thickness: 10±0.2mm
14	Drop Test	The cell is to be dropped from a height of meter twice onto concrete ground. No fire, no leakage
15	Cycle time	≥500times

Applications

Smart devices: Suitable for devices with moderate battery life requirements such as fingerprint locks, cervical massagers, microphones, etc. The battery has a standard voltage of 3.7V and supports working in an environment of -10~60℃. The cycle life is up to 500 cycles, which can meet daily use needs.
Consumer electronics: Can be expanded to small household appliances such as aromatherapy machines and beauty devices. Its lightweight design (10×20×40mm) and low-temperature working characteristics (-10℃ start-up) are suitable for outdoor scenes in winter.
Industrial scene: Outstanding performance in medical equipment (such as detectors, scanning pens). The battery has high consistency and low self-discharge characteristics (monthly self-discharge rate ≤5%), and can maintain stable performance after long-term storage.

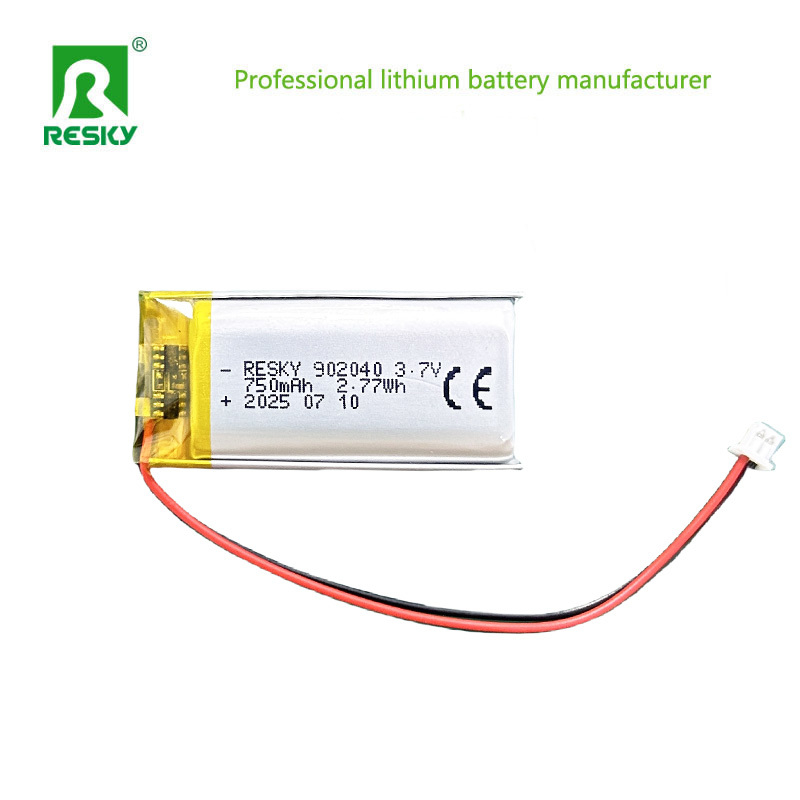

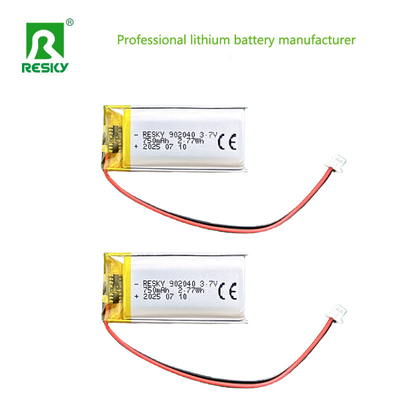

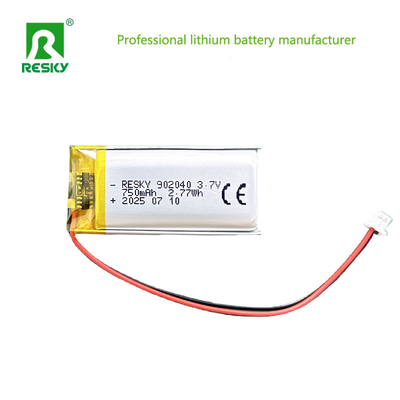

Product Images
