Power 18650 Li-Ion Battery Cell 10s6p 36v 15Ah 15.6Ah Lithium Ion Battery Pack For Ebike

Brand Name:	RESKY
Model Number:	RSK-3615.6
MOQ:	10pcs
Price:	Negotiable
Packaging Details:	Standard exporting packages/UN box
Payment Terms:	Western Union,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,RoHS,MSDS,Un38.3

Electrolyte:

Li(Nicomn)O2

Structure:

10s6p

Cell Type:

ICR18650 2500mAh/2600mAh Battery Cells

Motor:

Charging Cut-off Voltage:

Charging Current:

Dishcarging Cut-off Voltage:

27.5V

Continuous Discharging Current:

Peak Discharging Current:

561wh

Supply Ability:

500pcs/day

Highlight:

36v 15Ah 18650 Li-Ion Battery

10s6p 18650 Li-Ion Battery

Ebike 18650 Li-Ion Battery

Product Description

Product Description

Power 18650 Li-Ion Battery Cell 10s6p 36v 15Ah 15.6Ah Lithium Ion Battery Pack For Ebike

Specification:

Product name	36V 15Ah/15.6Ah
Model	RSK-3615.6
Rated Capacity	15.6Ah
Nominal Voltage	36V
Over discharge protection voltage	30V±0.05V
Over charge protection voltage	42V±0.05V
AC Impedance New Cell Max.(mΩ)	≤100 mΩ
Maximum Continuous Charge Current	≤5A adjustment
Maximum Continuous Discharge Current	≤20A adjustment
Maximum Pulse discharge current	≤30A adjustment
Operation Temperature Range	Charge: 0~45°C,Discharge: -20~60°C
Storage Temperature Range	Less than 1 year: -20~25°C
Storage Temperature Range	Less than 3 months: -20~40°C
Storage Temperature Range	Less than 30 Days: -25°C~45°C
Storage Temperature Range	Less than 90 Days: -25°C~30°C
Weight	Approx 3.5kg
Cycle Characteristic	500 times

Various cell brand available:

Power 18650 Li-Ion Battery Cell 10s6p 36v 15Ah 15.6Ah Lithium Ion Battery Pack For Ebike 0

Various cell type available:

1. Domestic ICR18650 battery cell(2600mAh, 2900mAh, 3400mAh, 3500mAh);

Domestic ICR21700 battery cell(4000mAh, 4500mAh, 5000mAh);

2. Panasonic: NCR18650F, NCR18650PF, NCR18650BE, NCR18650BD, NCR18650B, NCR18650BF, NCR18650GA;

3. Samsung cell available:

Samsung	INR1865035ET	3500	10A	3C
Samsung	INR1865025RM/RT	2500	20A	8C
Samsung	INR1865030Q/QM	3000	15A	5C
Samsung	INR2170050E	4800	10A	2C
Samsung	INR2170040T	4000	30A	7C
Samsung	INR2170050GB	5000	10A	2C
Samsung	INR2170050G	5000	10A	2C
Samsung	INR2170050S	5000	35A	7C

Various assembling way:

Power 18650 Li-Ion Battery Cell 10s6p 36v 15Ah 15.6Ah Lithium Ion Battery Pack For Ebike 1

Power 18650 Li-Ion Battery Cell 10s6p 36v 15Ah 15.6Ah Lithium Ion Battery Pack For Ebike 2

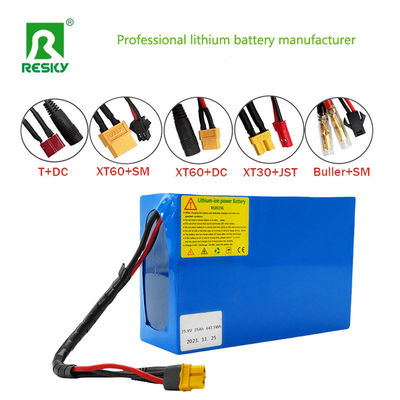

Input & output plug:

Power 18650 Li-Ion Battery Cell 10s6p 36v 15Ah 15.6Ah Lithium Ion Battery Pack For Ebike 3

Various application:

Power 18650 Li-Ion Battery Cell 10s6p 36v 15Ah 15.6Ah Lithium Ion Battery Pack For Ebike 4

Power 18650 Li-Ion Battery Cell 10s6p 36v 15Ah 15.6Ah Lithium Ion Battery Pack For Ebike 5

Why choose us?

1. We accept small quantity order or big quantity order;

2. We could accept any customized lithium battery pack orders;

3. We could accept orders with different requirements;

4. We guarantee 100% QC pass before delivery;

5. Fast production time, we have enough stock cells;

6. Fast solution confirmation, and quotation confirmation;

Factory pictures:

Battery cell warehouse:

Battery shell warehouse:

Automatic cylindrical battery cell sorting machine:

Assembled battery pack:

Completed battery in aging:

Power 18650 Li-Ion Battery Cell 10s6p 36v 15Ah 15.6Ah Lithium Ion Battery Pack For Ebike 10

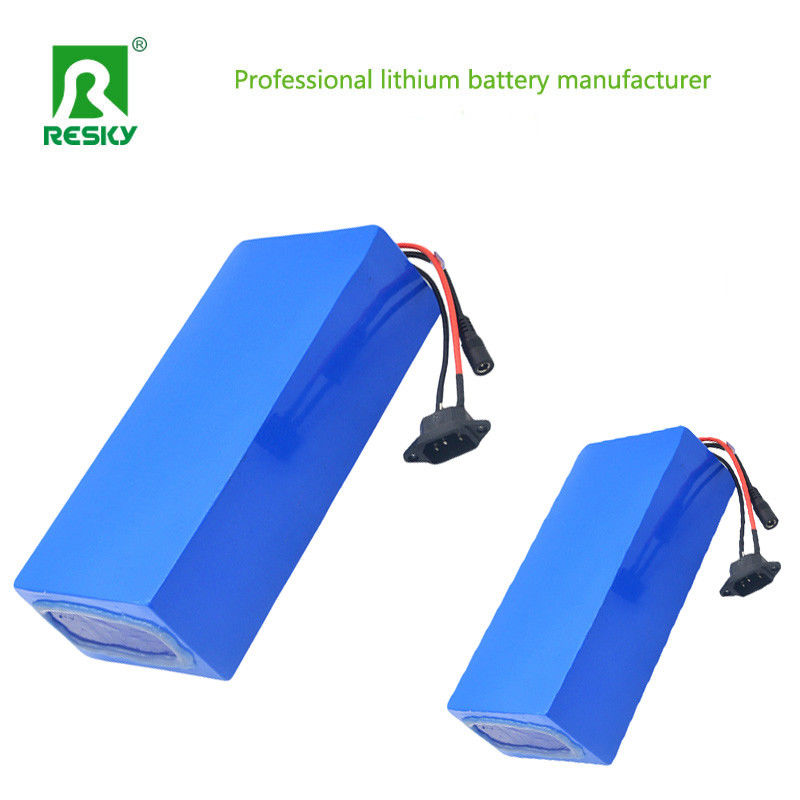

Battery Pictures:

Power 18650 Li-Ion Battery Cell 10s6p 36v 15Ah 15.6Ah Lithium Ion Battery Pack For Ebike 11
