Electric Bike Battery

Lithium Cell ICR18650 3.7v 2600mAh 36V 7.8Ah Li-Ion Battery Pack For Electric Scooter

All Category

RC Accessories

Mrs. Alice

alice@szresky.com

0086 13530058480

Contact Now

Lithium Cell ICR18650 3.7v 2600mAh 36V 7.8Ah Li-Ion Battery Pack For Electric Scooter

Brand Name:	RESKY
Model Number:	RSK-367.8
MOQ:	5pcs
Price:	Negotiable
Packaging Details:	Paper box
Payment Terms:	Western Union,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,RoHS,MSDS,Un38.3

Electrolyte:

Li(Nicomn)O2

Structure:

10s3p

Cell Type:

ICR18650 2600mAh Battery Cells

Motor:

Charging Cut-off Voltage:

Charging Current:

Dishcarging Cut-off Voltage:

27.5V

Continuous Discharging Current:

280wh

Input Plug:

Worldwide

Supply Ability:

500pcs/day

Highlight:

2600mAh Lithium Cell

ICR18650 Lithium Cell

Lithium Cell ICR18650

Product Description

Product Description

Lithium Cell ICR18650 3.7v 2600mAh 36V 7.8Ah Li-Ion Battery Pack For Electric Scooter

Specification:

Product name	36V 7.8Ah
Model	RSK-367.8
Rated Capacity	7.8Ah
Nominal Voltage	36V
Over discharge protection voltage	30V±0.05V
Over charge protection voltage	42V±0.05V
AC Impedance New Cell Max.(mΩ)	≤100 mΩ
Maximum Continuous Charge Current	≤3A adjustment
Maximum Continuous Discharge Current	≤10A adjustment
Maximum Pulse discharge current	≤12A adjustment
Operation Temperature Range	Charge: 0~45°C,Discharge: -20~60°C
Storage Temperature Range	Less than 1 year: -20~25°C
Storage Temperature Range	Less than 3 months: -20~40°C
Storage Temperature Range	Less than 30 Days: -25°C~45°C
Storage Temperature Range	Less than 90 Days: -25°C~30°C
Weight	Approx 1.8kg
Cycle Characteristic	500 times

Various cell brand available:

Lithium Cell ICR18650 3.7v 2600mAh 36V 7.8Ah Li-Ion Battery Pack For Electric Scooter 0

Various cell type available:

1. Domestic ICR18650 battery cell(2600mAh, 2900mAh, 3400mAh, 3500mAh);

Domestic ICR21700 battery cell(4000mAh, 4500mAh, 5000mAh);

2. Panasonic: NCR18650F, NCR18650PF, NCR18650BE, NCR18650BD, NCR18650B, NCR18650BF, NCR18650GA;

3. Samsung cell available:

Samsung	INR1865035ET	3500	10A	3C
Samsung	INR1865025RM/RT	2500	20A	8C
Samsung	INR1865030Q/QM	3000	15A	5C
Samsung	INR2170050E	4800	10A	2C
Samsung	INR2170040T	4000	30A	7C
Samsung	INR2170050GB	5000	10A	2C
Samsung	INR2170050G	5000	10A	2C
Samsung	INR2170050S	5000	35A	7C

Various assembling way:

Lithium Cell ICR18650 3.7v 2600mAh 36V 7.8Ah Li-Ion Battery Pack For Electric Scooter 1

Lithium Cell ICR18650 3.7v 2600mAh 36V 7.8Ah Li-Ion Battery Pack For Electric Scooter 2

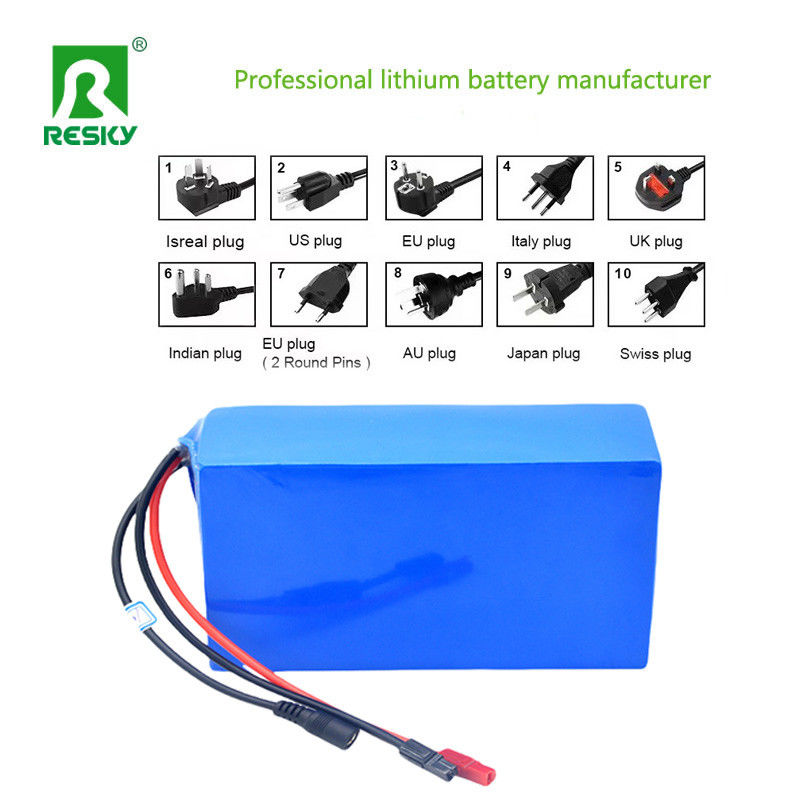

Input & output plug:

Lithium Cell ICR18650 3.7v 2600mAh 36V 7.8Ah Li-Ion Battery Pack For Electric Scooter 3

Various application:

Lithium Cell ICR18650 3.7v 2600mAh 36V 7.8Ah Li-Ion Battery Pack For Electric Scooter 4

Why choose us?

1. We accept small quantity order or big quantity order;

2. We could accept any customized lithium battery pack orders;

3. We could accept orders with different requirements;

4. We guarantee 100% QC pass before delivery;

5. Fast production time, we have enough stock cells;

6. Fast solution confirmation, and quotation confirmation;

Factory pictures:

Battery cell warehouse:

Battery shell warehouse:

Automatic cylindrical battery cell sorting machine:

Assembled battery pack:

Completed battery in aging:

Lithium Cell ICR18650 3.7v 2600mAh 36V 7.8Ah Li-Ion Battery Pack For Electric Scooter 9

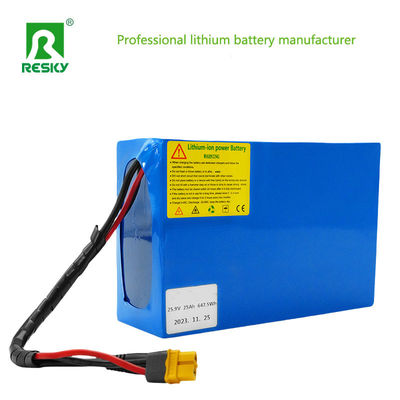

Battery Pictures:

Lithium Cell ICR18650 3.7v 2600mAh 36V 7.8Ah Li-Ion Battery Pack For Electric Scooter 10

Lithium Cell ICR18650 3.7v 2600mAh 36V 7.8Ah Li-Ion Battery Pack For Electric Scooter 14
