Rechargeable 10s6p 36V 19.2Ah Solar Lithium Ion Battery Pack For 500W 750W Electric Scooter

Brand Name:	RESKY
Model Number:	RSK-3619.2
MOQ:	10pcs
Price:	Negotiable
Packaging Details:	Standard exporting packages/UN box
Payment Terms:	Western Union,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,RoHS,MSDS,Un38.3

Electrolyte:

Li(Nicomn)O2

Structure:

10s6p

Cell Type:

Panasonic NCR18650BD Battery Cells

Motor:

Charging Cut-off Voltage:

Charging Current:

Dishcarging Cut-off Voltage:

27.5V

Continuous Discharging Current:

Peak Discharging Current:

691wh

Supply Ability:

500pcs/day

Highlight:

36V 19.2Ah Lithium Ion Battery Pack

750W Rechargeable Lithium Ion Battery Pack

10s6p Rechargeable Lithium Ion Battery Pack

Product Description

Rechargeable 10s6p 36V 19.2Ah Solar Lithium Ion Battery Pack For 500W 750W Electric Scooter

Product Specifications

Product Name	36V 19.2Ah
Model	RSK-3619.2
Rated Capacity	19.2Ah
Nominal Voltage	36V
Over Discharge Protection Voltage	30V±0.05V
Over Charge Protection Voltage	42V±0.05V
AC Impedance New Cell Max.	≤100 mΩ
Maximum Continuous Charge Current	≤5A adjustment
Maximum Continuous Discharge Current	≤20A adjustment
Maximum Pulse Discharge Current	≤30A adjustment
Operation Temperature Range	Charge: 0~45°C, Discharge: -20~60°C
Storage Temperature Range	Less than 1 year: -20~25°C Less than 3 months: -20~40°C
Weight	Approx 3.5kg
Cycle Characteristic	500 times

Available Cell Brands

Available Cell Types

Domestic ICR18650 battery cell (2600mAh, 2900mAh, 3400mAh, 3500mAh)
Domestic ICR21700 battery cell (4000mAh, 4500mAh, 5000mAh)
Panasonic: NCR18650F, NCR18650PF, NCR18650BE, NCR18650BD, NCR18650B, NCR18650BF, NCR18650GA

Samsung Cell Options

Model	Capacity	Current	Discharge Rate
INR1865035ET	3500	10A	3C
INR1865025RM/RT	2500	20A	8C
INR1865030Q/QM	3000	15A	5C
INR2170050E	4800	10A	2C
INR2170040T	4000	30A	7C
INR2170050GB	5000	10A	2C
INR2170050G	5000	10A	2C
INR2170050S	5000	35A	7C

Custom Assembly Options

Various series or parallel assembly configurations
Li-ion battery pack voltage range: 12V/24V/48V/60V/72V etc.
LiFePO4 battery pack voltage range: 12.8V/25.6V/51.2V/64V etc.

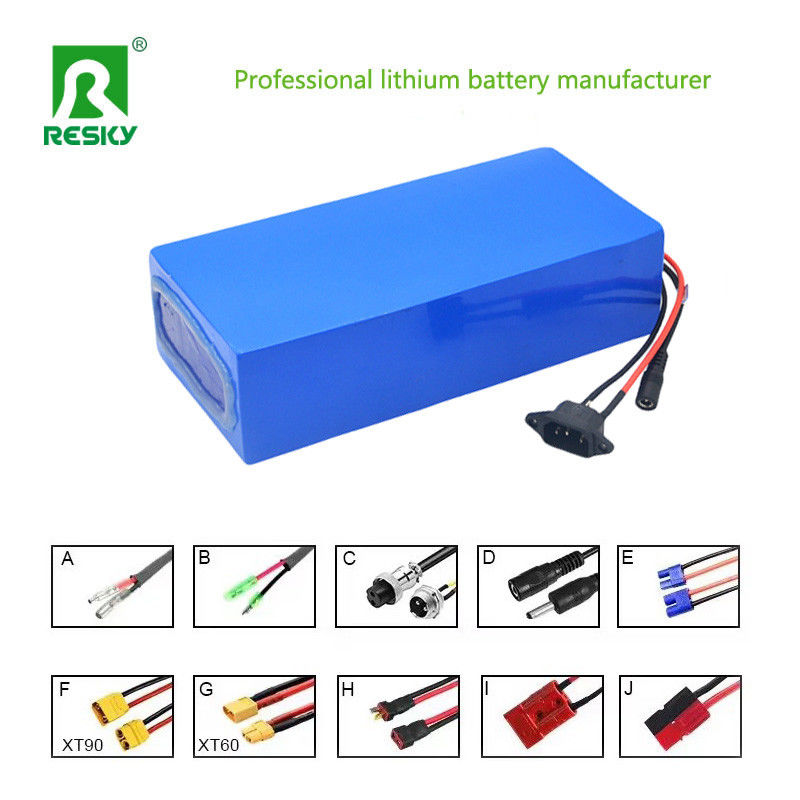

Input & Output Plug Options

Applications

Electric bicycle replacement
Electric scooter replacement
Electric motorcycle
Electric forklift
Electric golf cart
Electric tricycle
Electric wheelchair
Solar street LED light
Storage UPS

Why Choose Us?

We accept both small and large quantity orders
We accommodate customized lithium battery pack orders
We fulfill orders with different requirements
100% quality control pass before delivery
Fast production time with ample stock cells
Quick solution and quotation confirmation

Factory Overview

Product Gallery
