Lithium Polymer Battery Cell

Power Lithium Ion Cell 703048 3.7v 1000mAh 3.7wh Rechargeable Lithium Li-Ion Polymer Battery

All Category

RC Accessories

Mrs. Alice

alice@szresky.com

0086 13530058480

Contact Now

Power Lithium Ion Cell 703048 3.7v 1000mAh 3.7wh Rechargeable Lithium Li-Ion Polymer Battery

Brand Name:	RESKY
Model Number:	LP703048
MOQ:	10pcs
Price:	Negotiable
Packaging Details:	Paper box
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, RoHS, MSDS, Un38.3

Model NO.:

LP703048

Discharge Rate:

Low Discharge Rate

Shape:

Square Battery

Nominal Capacity:

1000mAh

Weight:

Cycle Life:

500cycles

Warranty:

12months

Specification:

7*30*48mm

HS Code:

8507600090

Supply Ability:

100000PCS/Day

Supply Ability:

50000pcs/day

Highlight:

Rechargeable Lithium Polymer Battery

1000mAh Lithium Polymer Battery

3.7v Lithium Polymer Battery

Product Description

Product Description

Power Lithium Ion Cell 703048 3.7v 1000mAh 3.7wh Rechargeable Lithium Li-Ion Polymer Battery

NO.	Items	Specifications
1	batteries	3.7v 1000mah lipo battery
2	Charge voltage	4.2V
3	Nominal voltage	3.7V
4	Nominal capacity	1000mAh 0.2C Discharge
5	Charge current	Standard Charging:0.5C Rapid charge: 1.0C
6	Standard Charging method	0.5C CC(constant current)charge to 4.2V, then CV(constant voltage 4.2V)charge till charge current decline to ≤0.05C
7	Charging time	Standard Charging:2.75hours(Ref.) Rapid charge: 2hours(Ref.)
8	Max.charge current	1.0C
9	Max.discharge current	1.0C
10	Discharge cut-off voltage	2.5V0.25V(0.2C)
11	Operating temperature	Charging: 0 °C ~45 °C Discharging:0 °C ~45 °C
12	Storage temperature	-10°C~ +45 °C
13	Dimension	Length: 48±2mm (not including tabs) Width: 30±0.5mm Thickness:7±0.2mm
14	Drop Test	The cell is to be dropped from a height of meter twice onto concrete ground. No fire, no leakage
15	cycle time	≥500times

Applications:

Electrical Toothbrush

MP4

MID

monitor

backup power

Portable DVD

POS machine

Desk video

motor drill

Digital camera

Features:

Physical Specifications & Form Factor

Dimensions: Precise dimensions of 7mm (thickness) × 30mm (width) × 48mm (length) (703048 code, where numbers represent thickness × width × length in mm). This slim, rectangular shape is ideal for space - constrained applications like wearable devices, portable electronics, or compact IoT gadgets.

Weight: Lightweight design, typically weighing ~30g (varies slightly by manufacturer), enabling portable devices to remain ergonomic and easy to handle.

Flexible Structure: Unlike rigid lithium - ion batteries, the polymer electrolyte allows minor flexibility in shape (within safe limits), accommodating curved or non - uniform device interiors without damage.

Electrical Performance Parameters

Charge Voltage: Maximum charging voltage of 4.2V (constant - current/constant - voltage charging profile). Charging beyond this voltage risks overheating or capacity degradation.

Discharge Cutoff Voltage: Minimum safe discharge voltage of 2.75V (to prevent deep discharge, which irreversibly damages the cell).

Continuous Discharge Current: Rated for 1C (1000mA) continuous discharge (varies by manufacturer; some versions may support up to 2C (2000mA) for short durations, ideal for devices with occasional high - power bursts, e.g., wireless earbuds during audio playback).

Pictures:

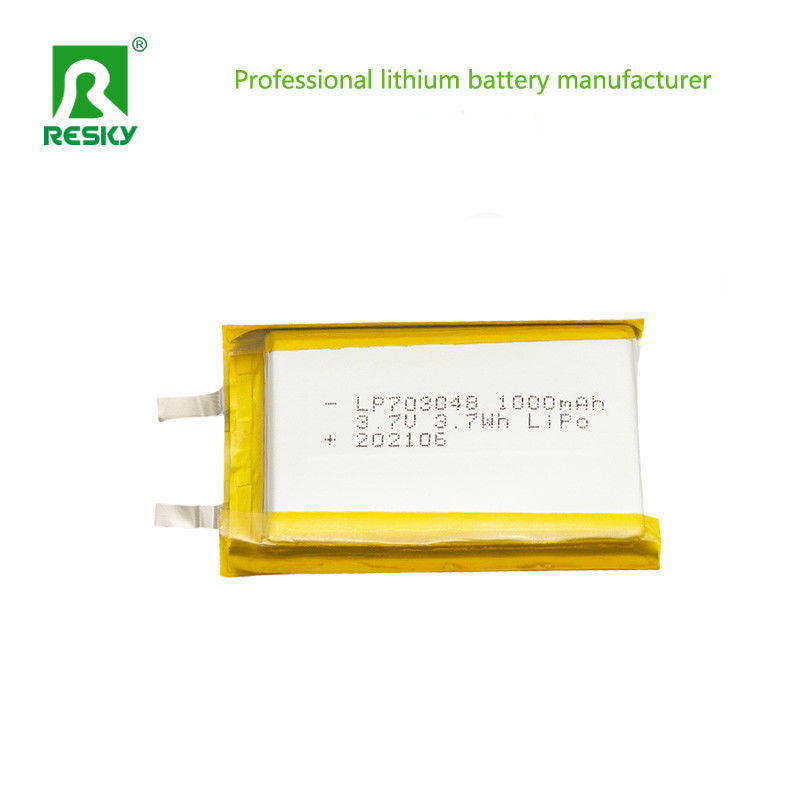

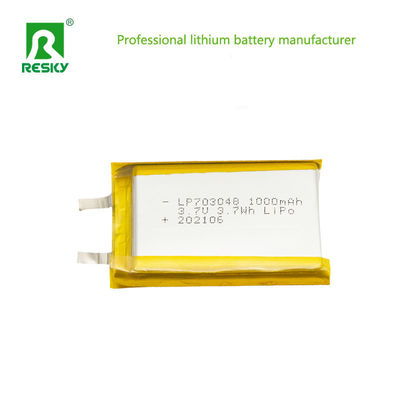

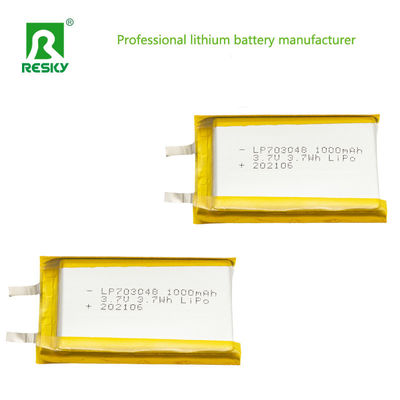

Power Lithium Ion Cell 703048 3.7v 1000mAh 3.7wh Rechargeable Lithium Li-Ion Polymer Battery 0
