Lithium Polymer Battery Cell

Power Lipo Battery Cell 103665 3.7v 4.2v 3000mAh 11.1wh Rechargeable Lithium Ion Battery Cell

All Category

RC Accessories

Mrs. Alice

alice@szresky.com

0086 13530058480

0086 13530058480

Contact Now

Power Lipo Battery Cell 103665 3.7v 4.2v 3000mAh 11.1wh Rechargeable Lithium Ion Battery Cell

Brand Name:	RESKY
Model Number:	LP103665
MOQ:	10PCS
Price:	Negotiable
Packaging Details:	Paper box
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, RoHS, MSDS, Un38.3

Shape:

Square Battery

Electrolyte:

Li(Nicomn)O2

Rechargeable:

Chargeable

Nominal Capacity:

3000mAh

Continuous Discharging Current:

Max Discharging Current:

Weight:

Cycle Life:

500cycles

Specification:

10*36*65mm

HS Code:

8507600090

Supply Ability:

50000pcs/day

Highlight:

3000mAh Power Lipo Battery Cell

11.1wh Power Lipo Battery Cell

3.7v 4.2v Power Lipo Battery Cell

Product Description

Power Lipo Battery Cell 103665 3.7v 4.2v 3000mAh 11.1wh Rechargeable Lithium Ion Battery Cell

Technical Specifications

NO.	Items	Specifications
1	Batteries	3.7v 3000mAh lipo battery
2	Charge voltage	4.2V
3	Nominal voltage	3.7V
4	Nominal capacity	3000mAh 0.2C Discharge
5	Charge current	Standard Charging: 0.5C Rapid charge: 1.0C
6	Standard Charging method	0.5C CC(constant current)charge to 4.2V, then CV(constant voltage 4.2V)charge till charge current decline to ≤0.05C
7	Charging time	Standard Charging: 2.75hours(Ref.) Rapid charge: 2hours(Ref.)
8	Max.charge current	0.5C
9	Max.discharge current	0.5C
10	Discharge cut-off voltage	2.5V±0.25V(0.2C)
11	Operating temperature	Charging: 0°C ~45°C Discharging: 0°C ~45°C
12	Storage temperature	-10°C~ +45°C
13	Dimension	Length: 65±2mm (not including tabs) Width: 36±0.5mm Thickness: 10±0.5mm
14	Drop Test	The cell is to be dropped from a height of meter twice onto concrete ground. No fire, no leakage
15	Cycle time	≥500 times

Applications

Tablets and E-readers: The 3000mAh capacity supports power-intensive operations including running multiple applications, displaying high-resolution graphics, and maintaining Wi-Fi or cellular connections. For e-readers, it provides weeks of reading time on a single charge.

Portable Media Players and Gaming Devices: Meets power demands for large-screen displays, powerful audio systems, and complex gaming graphics, enabling extended entertainment usage periods.

Wireless Security Cameras: Ensures continuous operation for transmitting video feeds wirelessly, providing reliable security monitoring over extended periods.

Portable Medical Devices: Provides reliable power for critical devices like patient monitors, infusion pumps, and diagnostic tools, ensuring continuous and accurate operation.

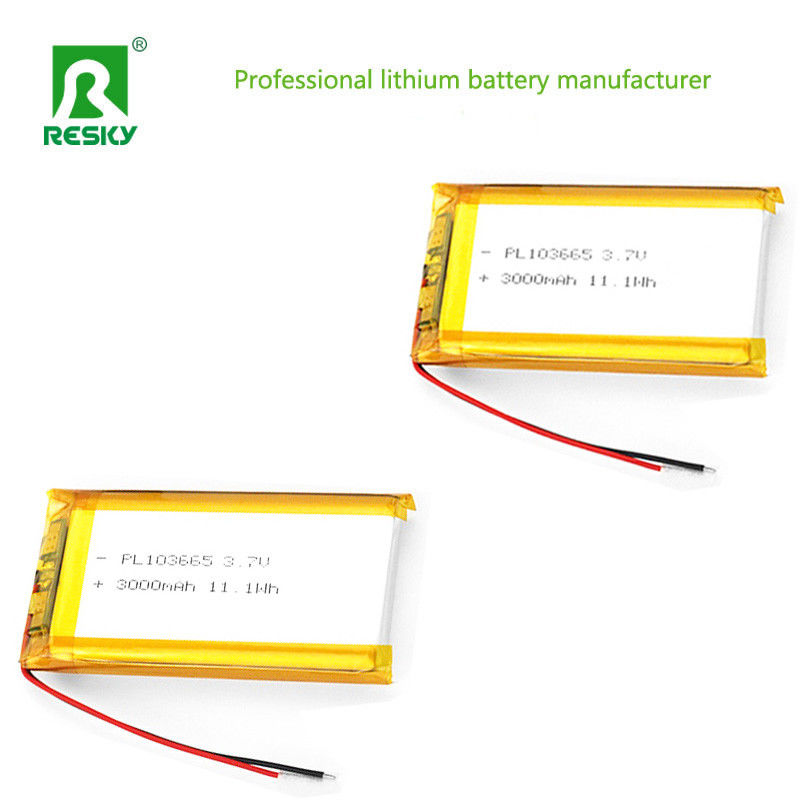

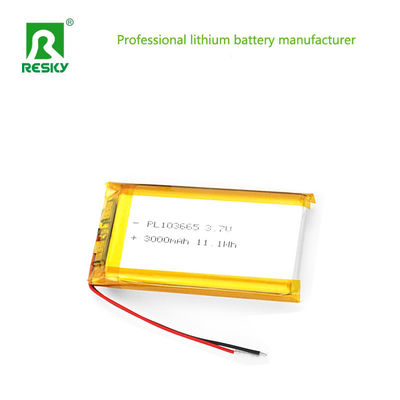

Product Images
