552535 3.7v 7.4v 420mAh 430mAh Lithium Ion Battery Cell Continuous Discharging Current 0.5c Max Discharging Current 1c

Brand Name:	RESKY
Model Number:	LP552535
MOQ:	10pcs
Price:	Negotiable
Packaging Details:	Paper box
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

MSDS, UN38.3, ect

Electrolyte:

Li(Nicomn)O2

Nominal Capacity:

420mAh

Continuous Discharging Current:

Max Discharging Current:

Weight:

Shipping:

UPS, DHL, FedEx, TNT, By Air, By Sea, Sp

OEM Service:

Specification:

5.5*25*35mm

HS Code:

8507600090

Production Ability:

100000PCS/Day

Supply Ability:

50000pcs/day

Highlight:

420mAh Lithium Ion Battery Cell

7.4v Lithium Ion Battery Cell

430mAh Lithium Ion Battery Cell

Product Description

Product Description

Lithium Cell 552535 3.7v 7.4v 420mAh 430mAh Storage Lithium Ion Battery Cell

NO.	Items	Specifications
1	batteries	3.7v 430mah lipo battery
2	Charge voltage	4.2V
3	Nominal voltage	3.7V
4	Nominal capacity	430mAh 0.2C Discharge
5	Charge current	Standard Charging:0.2C Rapid charge: 1.0C
6	Standard Charging method	0.5C CC(constant current)charge to 4.2V, then CV(constant voltage 4.2V)charge till charge current decline to ≤0.05C
7	Charging time	Standard Charging:2.75hours(Ref.) Rapid charge: 2hours(Ref.)
8	Max.charge current	0.5C
9	Max.discharge current	1.0C
10	Discharge cut-off voltage	2.5V0.25V(0.2C)
11	Operating temperature	Charging: 0 °C ~45 °C Discharging:0 °C ~45 °C
12	Storage temperature	-10°C~ +45 °C
13	Dimension	Length:35±0.5mm (not including tabs) Width:25±0.5mm Thickness:5.5±0.2mm
14	Drop Test	The cell is to be dropped from a height of meter twice onto concrete ground. No fire, no leakage
15	cycle time	≥500times

Advantages:

Thin and Lightweight Design:

Lithium polymer batteries can be designed to be extremely thin and lightweight. This is due to their use of flexible polymer electrolytes, which allow for a more compact battery structure.
This thin design is ideal for portable devices, such as smartphones and tablets, where space and weight are at a premium.

High Energy Density:

Lithium polymer batteries tend to have a higher energy density than some traditional battery types. This means they can store more energy in a smaller volume and weight.
As a result, devices powered by lithium polymer batteries can often operate for longer periods without needing to be recharged.

Longer Cycle Life:

Lithium polymer batteries typically have a longer cycle life compared to some other battery types. This means they can undergo more charge-discharge cycles without a significant loss in performance.
This contributes to their overall cost-effectiveness and environmental friendliness, as they can be used for longer periods before needing to be replaced.

Picures:

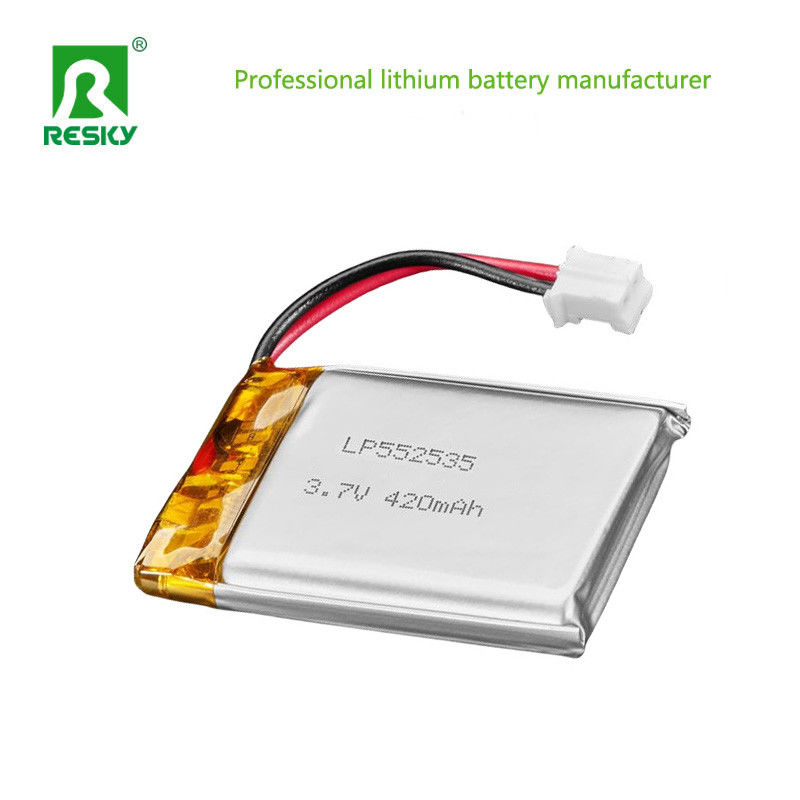

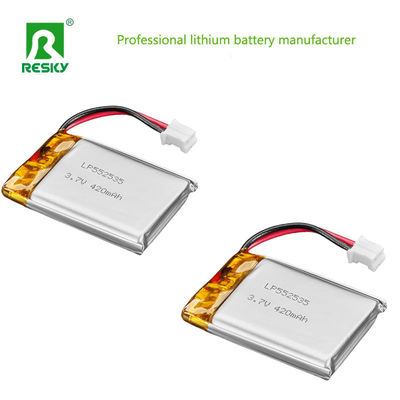

552535 3.7v 7.4v 420mAh 430mAh Lithium Ion Battery Cell Continuous Discharging Current 0.5c Max Discharging Current 1c 0
