Lithium Polymer Battery Cell

Lipo Battery 10542125 3.7v 7.4v 11.1v 14.8v 6000mAh 20C Rechargeable Lithium Polymer Battery Pack

All Category

RC Accessories

Mrs. Alice

alice@szresky.com

0086 13530058480

Contact Now

Lipo Battery 10542125 3.7v 7.4v 11.1v 14.8v 6000mAh 20C Rechargeable Lithium Polymer Battery Pack

Brand Name:	RESKY
Model Number:	LP10542125
MOQ:	10PCS
Price:	6-10USD
Packaging Details:	Paper box
Payment Terms:	Western Union, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ROHS,MSDS,UN38.3

Norminal Capacity:

6000mAh

Working Voltage:

3.7v-22.2v

Con Discharging Current:

Max Discharging Current:

Weight:

Internal Resistance:

Size:

10.5*42*125mm

Warranty:

12months

HS Code:

8507600090

Connector:

Xt60, Xt90, T-Type, Anderson, Bullet

Supply Ability:

50000PCS/DAY

Highlight:

7.4v Lipo Battery

14.8v Lipo Battery

11.1v Lipo Battery

Product Description

Product Description

Lipo Battery 10542125 3.7v 7.4v 11.1v 14.8v 6000mAh 20C Rechargeable Lithium Polymer Battery Pack

NO.	Items	Specifications
1	batteries	3.7V 6000mah lipo battery
2	Charge voltage	4.2V
3	Nominal voltage	3.7V
4	Nominal capacity	6000mAh 25C Discharge
5	Charge current	Standard Charging:0.2C Rapid charge: 25C
6	Standard Charging method	0.5C CC(constant current)charge to 4.2V, then CV(constant voltage 4.2V)charge till charge current decline to ≤0.05C
7	Charging time	Standard Charging:2.75hours(Ref.) Rapid charge: 2hours(Ref.)
8	Max.charge current	0.5C
9	Max.discharge current	50.0C
10	Discharge cut-off voltage	2.5V0.25V(0.2C)
11	Operating temperature	Charging: 0 °C ~45 °C Discharging:0 °C ~45 °C
12	Storage temperature	-10°C~ +45 °C
13	Dimension	Length:125±0.5mm (not including tabs) Width:42±0.5mm Thickness:10.5±0.2mm
14	Drop Test	The cell is to be dropped from a height of meter twice onto concrete ground. No fire, no leakage
15	cycle time	≥500times

Features:

Capacity and Voltage:

Capacity: Measured in milliampere-hours (mAh), this determines how long the RC vehicle will run per charge. A higher mAh rating means longer run time.

Voltage: Determines the speed and power of the RC model. The voltage of a battery pack is the sum of the voltages of its individual cells. For example, a 2S LiPo battery pack has two cells in series, providing a voltage of around 7.4V.

Safety and Maintenance:

LiPo batteries, in particular, require careful handling to avoid overcharging, over-discharging, and short-circuiting, which can lead to fire or explosion.

It is recommended to use a charger designed for the specific type of battery and to regularly monitor the battery's health and performance.

Performance Over Time:

RC batteries gradually lose performance over time, manifesting as decreased voltage and reduced run time. Proper care and maintenance can extend the lifespan of the battery.

Pictures:

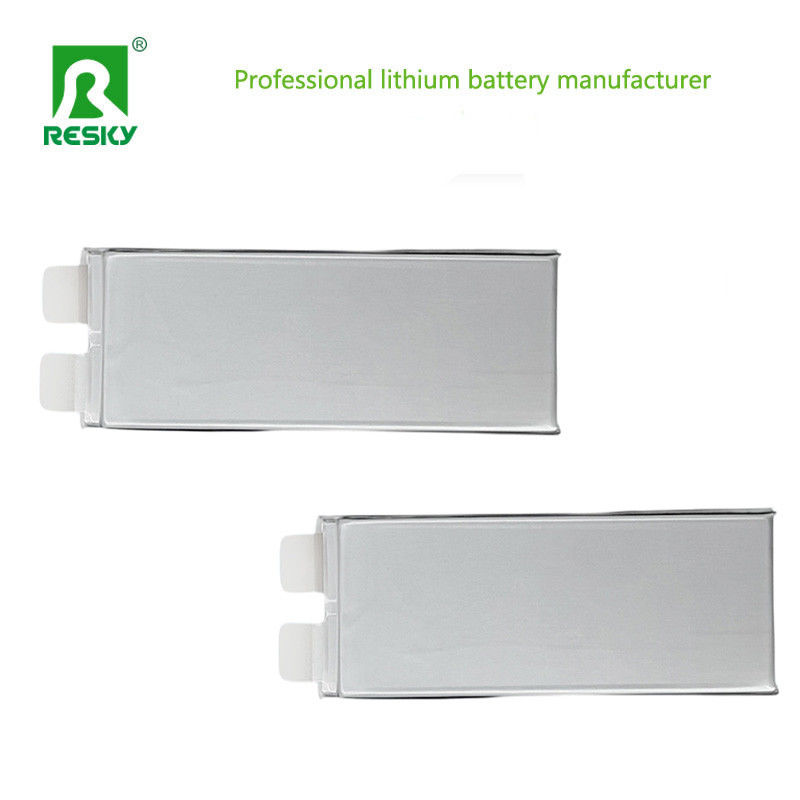

Lipo Battery 10542125 3.7v 7.4v 11.1v 14.8v 6000mAh 20C Rechargeable Lithium Polymer Battery Pack 0

Tags:

Lipo Batteries

Lithium Polymer Battery Pack

Li-Polymer Batteries

Products Details

Home > Products >

Lithium Polymer Battery Cell

Lipo Battery 10542125 3.7v 7.4v 11.1v 14.8v 6000mAh 20C Rechargeable Lithium Polymer Battery Pack

All Category

Lithium Polymer Battery Cell

RC Lithium Battery

Li-Ion Battery Pack

Lithium Polymer Battery Pack

Heated Lithium Battery

Electric Bike Battery

RC Balance Charger

Rechargeable Battery Charger

RC Accessories

Lipo Battery 10542125 3.7v 7.4v 11.1v 14.8v 6000mAh 20C Rechargeable Lithium Polymer Battery Pack

Brand Name:	RESKY
Model Number:	LP10542125
MOQ:	10PCS
Price:	6-10USD
Packaging Details:	Paper box
Payment Terms:	Western Union, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Brand Name:

RESKY

Certification:

CE,ROHS,MSDS,UN38.3

Model Number:

LP10542125

Norminal Capacity:

6000mAh

Working Voltage:

3.7v-22.2v

Con Discharging Current:

25C

Max Discharging Current:

50C

Weight:

128g

Internal Resistance:

2Ω

Size:

10.5*42*125mm

Warranty:

12months

HS Code:

8507600090

Connector:

Xt60, Xt90, T-Type, Anderson, Bullet

Minimum Order Quantity:

10PCS

Price:

6-10USD

Packaging Details:

Paper box

Delivery Time:

10-12Workdays

Payment Terms:

Western Union, T/T

Supply Ability:

50000PCS/DAY

Highlight:

7.4v Lipo Battery

14.8v Lipo Battery

11.1v Lipo Battery

Product Description

Product Description

Lipo Battery 10542125 3.7v 7.4v 11.1v 14.8v 6000mAh 20C Rechargeable Lithium Polymer Battery Pack

NO.	Items	Specifications
1	batteries	3.7V 6000mah lipo battery
2	Charge voltage	4.2V
3	Nominal voltage	3.7V
4	Nominal capacity	6000mAh 25C Discharge
5	Charge current	Standard Charging:0.2C Rapid charge: 25C
6	Standard Charging method	0.5C CC(constant current)charge to 4.2V, then CV(constant voltage 4.2V)charge till charge current decline to ≤0.05C
7	Charging time	Standard Charging:2.75hours(Ref.) Rapid charge: 2hours(Ref.)
8	Max.charge current	0.5C
9	Max.discharge current	50.0C
10	Discharge cut-off voltage	2.5V0.25V(0.2C)
11	Operating temperature	Charging: 0 °C ~45 °C Discharging:0 °C ~45 °C
12	Storage temperature	-10°C~ +45 °C
13	Dimension	Length:125±0.5mm (not including tabs) Width:42±0.5mm Thickness:10.5±0.2mm
14	Drop Test	The cell is to be dropped from a height of meter twice onto concrete ground. No fire, no leakage
15	cycle time	≥500times

Features:

Capacity and Voltage:

Capacity: Measured in milliampere-hours (mAh), this determines how long the RC vehicle will run per charge. A higher mAh rating means longer run time.

Safety and Maintenance:

LiPo batteries, in particular, require careful handling to avoid overcharging, over-discharging, and short-circuiting, which can lead to fire or explosion.

It is recommended to use a charger designed for the specific type of battery and to regularly monitor the battery's health and performance.

Performance Over Time:

RC batteries gradually lose performance over time, manifesting as decreased voltage and reduced run time. Proper care and maintenance can extend the lifespan of the battery.

Pictures:

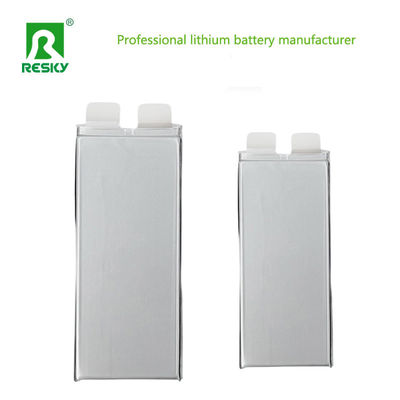

Lipo Battery 10542125 3.7v 7.4v 11.1v 14.8v 6000mAh 20C Rechargeable Lithium Polymer Battery Pack 0
