Pouch Solar Lithium Polymer Battery Cell 803040 3.7V 1000mAh 3.7wh Power

Pouch Solar Lithium Polymer Battery Cell 803040 3.7V 1000mAh 3.7wh Power

Brand Name: RESKY
Model Number: LP803040
MOQ: 10pcs
Price: Negotiable
Packaging Details: Paper box
Payment Terms: T/T,Western Union
Detail Information
Place of Origin:
China
Certification:
CE, RoHS, MSDS, Un38.3
Nominal Capacity:
1000mAh
Continuous Discharging Current:
0.5c
Max Discharging Current:
1c
Weight:
10g
Warranty:
12months
Shipping:
UPS, DHL, FedEx, TNT, By Air, By Sea, Special Line
OEM Service:
Yes
Specification:
8*30*40mm
HS Code:
8507600090
Supply Ability:
100000PCS/Day
Supply Ability:
50000PCS/DAY
Highlight:

Solar Lithium Polymer Battery Cell

,

Lithium Polymer Battery Cell 803040

,

1000mAh Lithium Polymer Battery

Product Description
Pouch Solar Lithium Polymer Battery Cell 803040 3.7V 1000mAh 3.7wh Power
Product Specifications
NO. Items Specifications
1 Batteries 3.7V 1000mAh LiPo battery
2 Charge voltage 4.2V
3 Nominal voltage 3.7V
4 Nominal capacity 1000mAh @ 0.2C Discharge
5 Charge current Standard Charging: 0.5C
Rapid charge: 1.0C
6 Standard Charging method 0.5C CC (constant current) charge to 4.2V, then CV (constant voltage 4.2V) charge till charge current declines to ≤0.05C
7 Charging time Standard Charging: 2.75 hours (Ref.)
Rapid charge: 2 hours (Ref.)
8 Max. charge current 1.0C
9 Max. discharge current 1.0C
10 Discharge cut-off voltage 2.5V ±0.25V (0.2C)
11 Operating temperature Charging: 0°C ~45°C
Discharging: 0°C ~45°C
12 Storage temperature -10°C ~ +45°C
13 Dimension Length: 40±2mm (not including tabs)
Width: 30±0.5mm
Thickness: 8±0.2mm
14 Drop Test The cell is to be dropped from a height of 1 meter twice onto concrete ground. No fire, no leakage
15 Cycle time ≥500 times
Frequently Asked Questions
Pre-Order Questions

Please answer these questions before placing your order to help us provide the correct products:

  • What product will you use the battery with?
  • Do you need a Protection Board for the battery?
  • Do you need cable and connector for the battery?
  • What is your continuous and peak discharging current?
Q: What are your payment and delivery terms?
A: Payment terms: By T/T, 50% deposit, balance before shipment. For small amounts, we accept full payment via PayPal or Western Union.
Q: Can I place a sample order?
A: Yes, sample orders are welcome. We offer free samples (up to 3 pcs), you only need to pay shipping costs.
Q: How are quality issues handled after sale?
  1. Send photos/videos of the problem to us
  2. Return the defective battery by express
  3. Our engineers will analyze within 2 working days
  4. 1 Year Warranty - we repair or replace batteries with non-human factor quality problems
Q: What is your production lead time?
A: 3-5 days for samples, 7-10 workdays for large quantities.
Q: What certifications do you provide?
A: We have CE, CB, KC, MSDS, UN38.3 for most models. Custom designs may require new certification (fees may apply).
Q: Can you print our logo/brand on the product?
A: Yes, we offer free logo printing for sufficiently large orders.
Q: Do you offer custom battery solutions?
A: Yes, our professional engineers can develop solutions tailored to your specific requirements.
Product Images

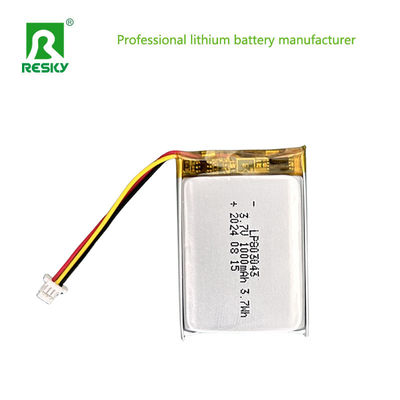

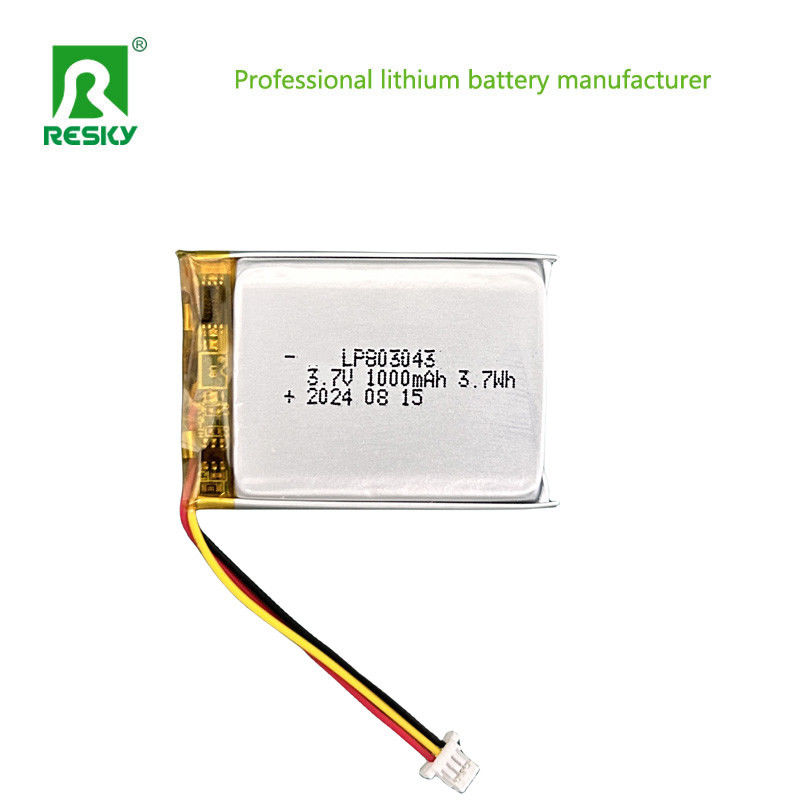

Pouch Solar Lithium Polymer Battery Cell 803040 3.7V 1000mAh 3.7wh Power 0 Pouch Solar Lithium Polymer Battery Cell 803040 3.7V 1000mAh 3.7wh Power 1 Pouch Solar Lithium Polymer Battery Cell 803040 3.7V 1000mAh 3.7wh Power 2 Pouch Solar Lithium Polymer Battery Cell 803040 3.7V 1000mAh 3.7wh Power 3 Pouch Solar Lithium Polymer Battery Cell 803040 3.7V 1000mAh 3.7wh Power 4
