Lithium Polymer Battery Cell

Flat Lithium Polymer Battery Cell 523450 603450 803450 103450 3.7v 2000mAh Lipo Batteries

All Category

RC Accessories

Mrs. Alice

alice@szresky.com

0086 13530058480

Contact Now

Flat Lithium Polymer Battery Cell 523450 603450 803450 103450 3.7v 2000mAh Lipo Batteries

Brand Name:	RESKY
Model Number:	LP803450
MOQ:	10pcs
Price:	Negotiable
Packaging Details:	Paper box
Payment Terms:	Western Union,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, RoHS, MSDS, Un38.3

Document:

Nominal Capacity:

1500mAh

Charging Current:

Max Discharging Current:

Weight:

10PCS

Cycle Life:

500cycles

Warranty:

12months

Shipping:

DHL, FedEx, TNT, By Air, By Sea

Electrolyte:

Li(Nicomn)O2

Specification:

8*34*50mm

Supply Ability:

50000pcs/day

Highlight:

Flat Lithium Polymer Battery Cell

Lithium Polymer Battery Cell 103450

3.7v 2000mAh Lipo Batteries

Product Description

Product Description

Flat Lithium Polymer Battery Cell 523450 603450 803450 103450 3.7v 2000mAh Lipo Batteries

NO.	Items	Specifications
1	batteries	3.7v 1500mah lipo battery
2	Charge voltage	4.2V
3	Nominal voltage	3.7V
4	Nominal capacity	1500mAh 0.2C Discharge
5	Charge current	Standard Charging:0.5C Rapid charge: 1.0C
6	Standard Charging method	0.5C CC(constant current)charge to 4.2V, then CV(constant voltage 4.2V)charge till charge current decline to ≤0.05C
7	Charging time	Standard Charging:2.75hours(Ref.) Rapid charge: 2hours(Ref.)
8	Max.charge current	1.0C
9	Max.discharge current	1.0C
10	Discharge cut-off voltage	2.5V0.25V(0.2C)
11	Operating temperature	Charging: 0 °C ~45 °C Discharging:0 °C ~45 °C
12	Storage temperature	-10°C~ +45 °C
13	Dimension	Length:50±0.5mm (not including tabs) Width: 34±0.5mm Thickness:8±0.2mm
14	Drop Test	The cell is to be dropped from a height of meter twice onto concrete ground. No fire, no leakage
15	cycle time	≥500times

Features:

High Energy Density:

Lipo batteries have a higher energy density compared to traditional nickel-cadmium (NiCd) and nickel-metal hydride (NiMH) batteries.
This means they can store more energy in the same volume and weight, providing longer usage times for devices.

No Memory Effect:

Lipo batteries do not have a memory effect, which means they can be charged and discharged without worrying about reducing their capacity.
This makes them easier to use and maintain compared to some other battery types.

Low Self-Discharge Rate:

The self-discharge rate of Lipo batteries is relatively low, meaning they lose less capacity over time when not in use.

Picures:

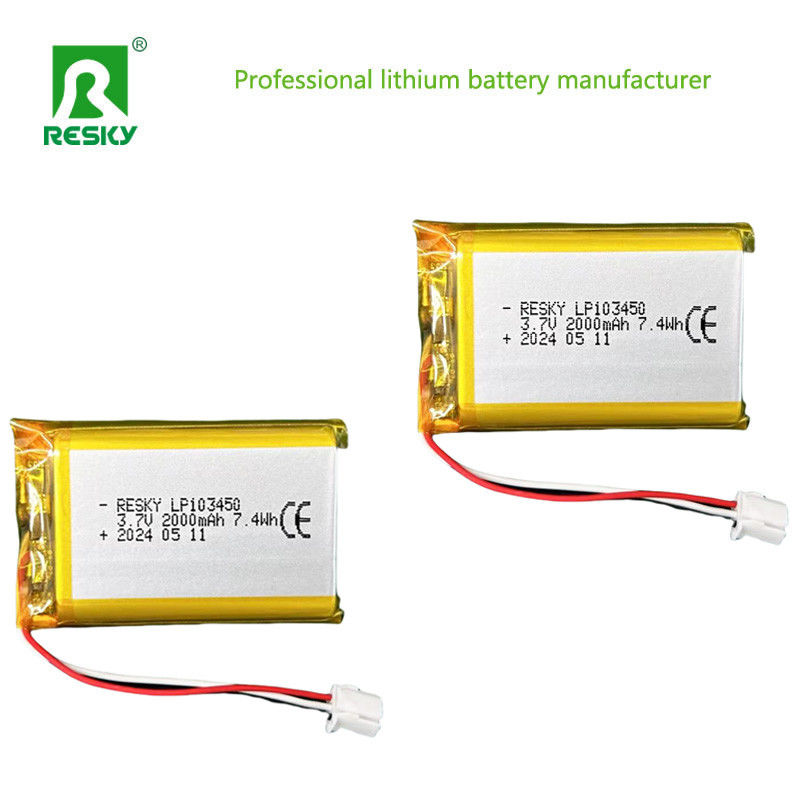

Flat Lithium Polymer Battery Cell 523450 603450 803450 103450 3.7v 2000mAh Lipo Batteries 0

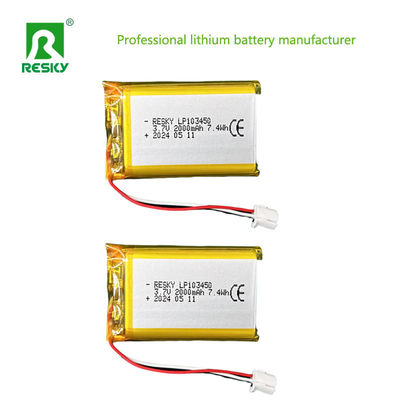

Flat Lithium Polymer Battery Cell 523450 603450 803450 103450 3.7v 2000mAh Lipo Batteries 1

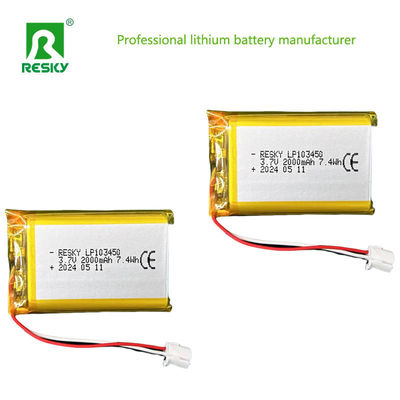

Flat Lithium Polymer Battery Cell 523450 603450 803450 103450 3.7v 2000mAh Lipo Batteries 2

Flat Lithium Polymer Battery Cell 523450 603450 803450 103450 3.7v 2000mAh Lipo Batteries 3

Flat Lithium Polymer Battery Cell 523450 603450 803450 103450 3.7v 2000mAh Lipo Batteries 4

Tags:
