Lithium Polymer Battery Cell

Lithium Polymer Battery Cell 103765 3.7V 3000mAh 11.1wh Small Digital Product

All Category

RC Accessories

Mrs. Alice

alice@szresky.com

0086 13530058480

Contact Now

Lithium Polymer Battery Cell 103765 3.7V 3000mAh 11.1wh Small Digital Product

Brand Name:	RESKY
Model Number:	LP103765
MOQ:	10pcs
Price:	Negotiable
Packaging Details:	Paper box
Payment Terms:	Western Union,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, RoHS, MSDS, Un38.3

Model NO.:

LP103765

Nominal Capacity:

3000mAh

Charging Current:

Continuous Discharging Current:

Weight:

10PCS

Cycle Life:

500cycles

Warranty:

1 Year

Lead Time:

3-7workdays

Size:

10*37*65mm

Supply Ability:

50000pcs/day

Highlight:

Lithium Polymer Battery Cell 3.7V

103765 Lithium Polymer Battery Cell

Product Description

Product Description

Lithium polymer battery cell 103765 3.7V 3000mAh 11.1wh Small Digital Product

NO.	Items	Specifications
1	batteries	3.7v 3000mah lipo battery
2	Charge voltage	4.2V
3	Nominal voltage	3.7V
4	Nominal capacity	3000mAh 0.2C Discharge
5	Charge current	Standard Charging:0.5C Rapid charge: 1.0C
6	Standard Charging method	0.5C CC(constant current)charge to 4.2V, then CV(constant voltage 4.2V)charge till charge current decline to ≤0.05C
7	Charging time	Standard Charging:2.75hours(Ref.) Rapid charge: 2hours(Ref.)
8	Max.charge current	1.0C
9	Max.discharge current	1.0C
10	Discharge cut-off voltage	2.5V0.25V(0.2C)
11	Operating temperature	Charging: 0 °C ~45 °C Discharging:0 °C ~45 °C
12	Storage temperature	-10°C~ +45 °C
13	Dimension	Length:65±2mm (not including tabs) Width:37±0.5mm Thickness:10±0.2mm
14	Drop Test	The cell is to be dropped from a height of meter twice onto concrete ground. No fire, no leakage
15	cycle time	≥500times

Advantages:

Long Cycle Life: These batteries typically have a longer lifecycle, withstanding numerous charge and discharge cycles before significant capacity degradation occurs.

Low Self-Discharge Rate: Lithium polymer batteries exhibit a low self-discharge rate, meaning they retain their charge better over time when not in use. This is particularly beneficial for devices that may be stored for extended periods.

Fast Charging Capability: Many lithium polymer batteries support rapid charging, allowing them to reach full capacity in a fraction of the time compared to other battery types. This is particularly advantageous for applications requiring quick turnarounds or emergency use.

Picures:

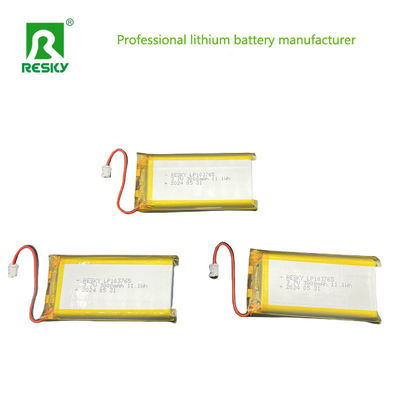

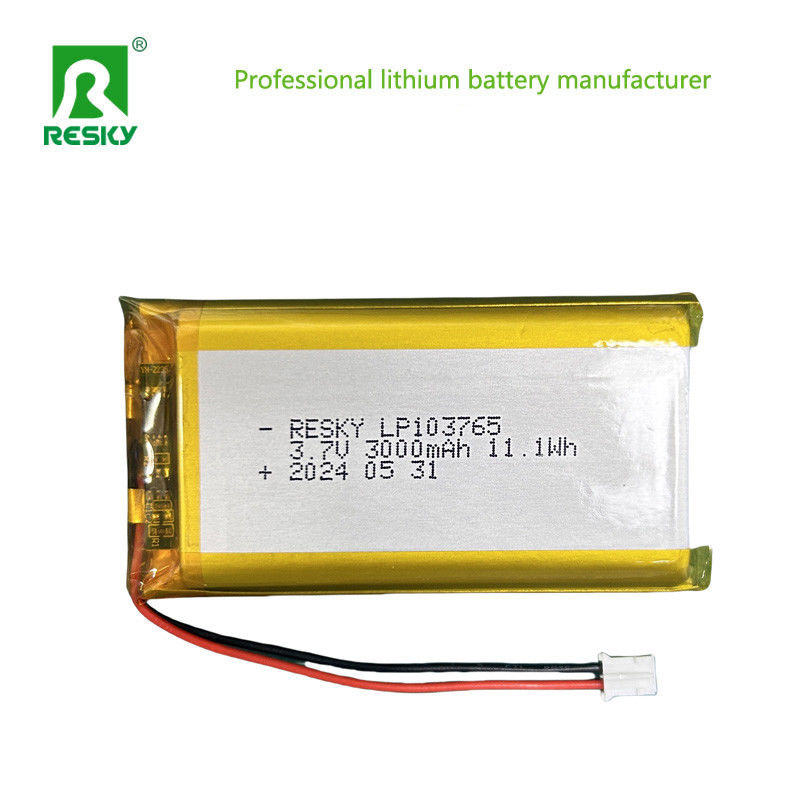

Lithium Polymer Battery Cell 103765 3.7V 3000mAh 11.1wh Small Digital Product 0

Lithium Polymer Battery Cell 103765 3.7V 3000mAh 11.1wh Small Digital Product 1

Lithium Polymer Battery Cell 103765 3.7V 3000mAh 11.1wh Small Digital Product 2

Lithium Polymer Battery Cell 103765 3.7V 3000mAh 11.1wh Small Digital Product 3

Lithium Polymer Battery Cell 103765 3.7V 3000mAh 11.1wh Small Digital Product 4
