10s5p Electric Bike Battery 36V 11Ah Rechargeable Li-ion Battery Pack

Brand Name:	RESKY
Model Number:	RSK-3611
MOQ:	5pcs
Price:	Negotiable
Packaging Details:	Paper box
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, RoHS, MSDS, Un38.3

Rated Capacity:

Standard Voltage:

Electrolyte:

Li-ion

Cells:

18650 2200mAh Cells

Charging Cut-off Voltage:

Charging Current:

Dishcarging Cut-off Voltage:

Continuous Discharging Current:

Weight:

Approx 2.8kg

Warranty:

12months

Supply Ability:

500pcs/day

Highlight:

10s5p Electric Bike Battery

Electric Bike Battery 36V

11Ah Rechargeable Li-ion Battery Pack

Product Description

Product Description

Electric Bike Battery 10s5p 36V 11Ah Rechargeable Power Li-ion Battery Pack

Specification:

Product name	36V 11Ah
Model	RSK-3611
Rated Capacity	11Ah
Nominal Voltage	36V
Over discharge protection voltage	30V±0.05V
Over charge protection voltage	42V±0.05V
AC Impedance New Cell Max.(mΩ)	≤100 mΩ
Maximum Continuous Charge Current	≤5A adjustment
Maximum Continuous Discharge Current	≤10A adjustment
Maximum Pulse discharge current	≤20A adjustment
Operation Temperature Range	Charge: 0~45°C,Discharge: -20~60°C
Storage Temperature Range	Less than 1 year: -20~25°C
Storage Temperature Range	Less than 3 months: -20~40°C
Storage Temperature Range	Less than 30 Days: -25°C~45°C
Storage Temperature Range	Less than 90 Days: -25°C~30°C
Weight	Approx2.1kg
Cycle Characteristic	500-800times

Features:

High Energy Density:

Li-ion batteries offer a high energy-to-weight ratio, making them lightweight yet powerful. This is particularly beneficial for ebikes, as it allows for longer ranges and reduced overall weight.

Low Self-Discharge Rate:

Li-ion batteries have a low self-discharge rate, meaning they retain their charge well over time when not in use. This is useful for ebikes that may not be ridden daily.

Environmentally Friendly:

Li-ion batteries are generally considered more environmentally friendly than traditional lead-acid batteries. They contain no heavy metals such as lead and have a lower environmental impact during production and disposal.

Safety Features:

Many Li-ion ebike battery packs incorporate safety features such as overcharge protection, over-discharge protection, and short-circuit protection. These features help prevent potential hazards and ensure the safe operation of the battery pack.

Warnings:

Do not submerge the battery in the water.

Do not mix fresh batteries with used batteries.

Do not mix batteries with metal stuff together.

Do not insert batteries with the (+) and (-) reversed.

Do not disassemble, dispose in fire, heat or short circuit.

Do not put the battery in a charger or equipment with wrong terminals connected.

Pictures:

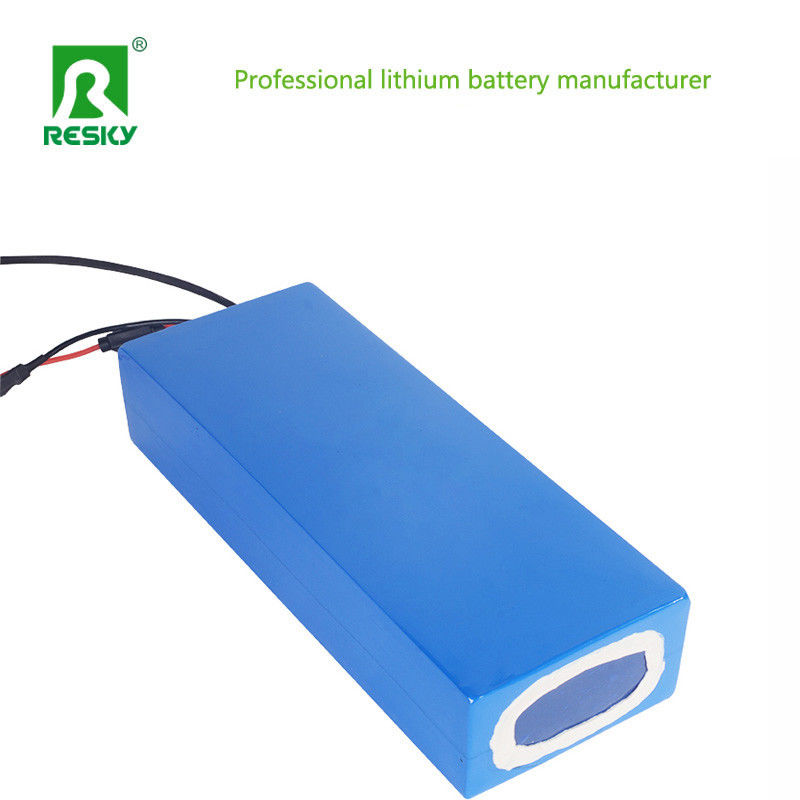

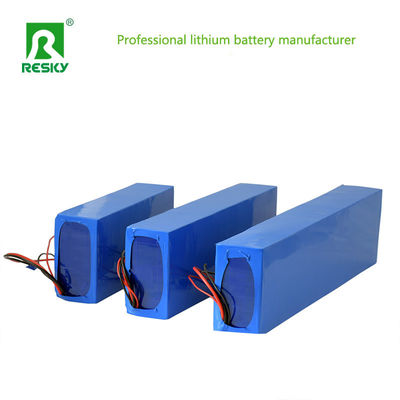

10s5p Electric Bike Battery 36V 11Ah Rechargeable Li-ion Battery Pack 0

10s5p Electric Bike Battery 36V 11Ah Rechargeable Li-ion Battery Pack 1

10s5p Electric Bike Battery 36V 11Ah Rechargeable Li-ion Battery Pack 2

10s5p Electric Bike Battery 36V 11Ah Rechargeable Li-ion Battery Pack 3

10s5p Electric Bike Battery 36V 11Ah Rechargeable Li-ion Battery Pack 4
