Rechargeable Lithium Polymer Batteries Lipo Battery Cell 803040 3.7V 1000mAh

Brand Name:	RESKY
Model Number:	LP803040
MOQ:	10pcs
Price:	Negotiable
Packaging Details:	Paper box
Payment Terms:	Western Union,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, RoHS, MSDS, Un38.3

Nominal Capacity:

1000mAh

Weight:

Cycle Life:

500cycles

Warranty:

1year

Connector:

Jst, Molex....

OEM Service:

Transport Package:

1PCS/Box

Specification:

8*30*40mm

Cycle Life:

500times

Supply Ability:

50000pcs/day

Highlight:

1000mAh Rechargeable Lithium Polymer Batteries

Lipo Battery Cell 803040

Rechargeable Lithium Polymer Batteries 3.7V

Product Description

Product Description

Lithium polymer battery cell 803040 3.7V 1000mAh Rechargeable lipo batteries

NO.	Items	Specifications
1	batteries	3.7v 1000mah lipo battery
2	Charge voltage	4.2V
3	Nominal voltage	3.7V
4	Nominal capacity	1000mAh 0.2C Discharge
5	Charge current	Standard Charging:0.5C Rapid charge: 1.0C
6	Standard Charging method	0.5C CC(constant current)charge to 4.2V, then CV(constant voltage 4.2V)charge till charge current decline to ≤0.05C
7	Charging time	Standard Charging:2.75hours(Ref.) Rapid charge: 2hours(Ref.)
8	Max.charge current	1.0C
9	Max.discharge current	1.0C
10	Discharge cut-off voltage	2.5V0.25V(0.2C)
11	Operating temperature	Charging: 0 °C ~45 °C Discharging:0 °C ~45 °C
12	Storage temperature	-10°C~ +45 °C
13	Dimension	Length: 40±2mm (not including tabs) Width: 30±0.5mm Thickness:8±0.2mm
14	Drop Test	The cell is to be dropped from a height of meter twice onto concrete ground. No fire, no leakage
15	cycle time	≥500times

Advantages:

Improved Safety:

Lithium polymer batteries use solid or gel-state electrolytes instead of liquid electrolytes. This reduces the risk of leakage or explosion if the battery is damaged.

Additionally, many lithium polymer batteries are encapsulated in aluminum-plastic packaging, which provides an extra layer of safety.

Longer Cycle Life:

Lithium polymer batteries typically have a longer cycle life compared to some other battery types. This means they can undergo more charge-discharge cycles without a significant loss in performance.

This contributes to their overall cost-effectiveness and environmental friendliness, as they can be used for longer periods before needing to be replaced.

Wide Operating Temperature Range:

Lithium polymer batteries can operate over a wide range of temperatures, including extreme hot and cold conditions. This makes them suitable for outdoor devices or other applications that require operation in harsh environments.

Environmentally Friendly:

The production process of lithium polymer batteries may be more environmentally friendly compared to some traditional battery technologies, as they do not involve rare metals or harmful substances.

Picures:

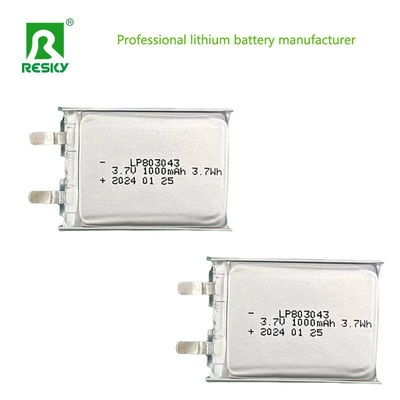

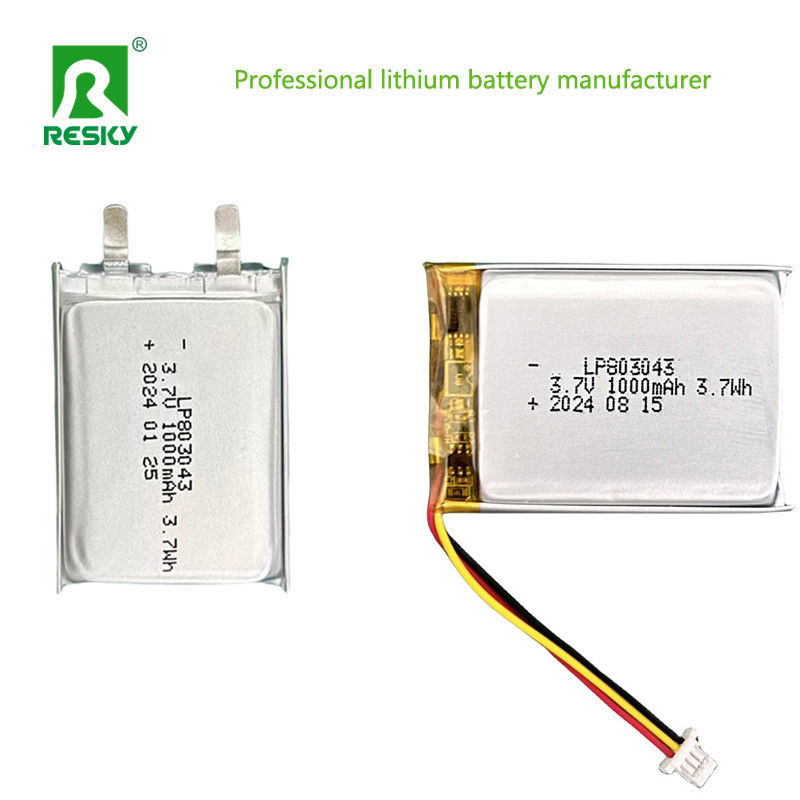

Rechargeable Lithium Polymer Batteries Lipo Battery Cell 803040 3.7V 1000mAh 0

Rechargeable Lithium Polymer Batteries Lipo Battery Cell 803040 3.7V 1000mAh 1

Rechargeable Lithium Polymer Batteries Lipo Battery Cell 803040 3.7V 1000mAh 2

Rechargeable Lithium Polymer Batteries Lipo Battery Cell 803040 3.7V 1000mAh 3

Rechargeable Lithium Polymer Batteries Lipo Battery Cell 803040 3.7V 1000mAh 4
