Pouch Lithium Polymer Battery Cell 902040 3.7V 700mAh 750mAh For LED Flashlight

Brand Name:	RESKY
Model Number:	LP902040
MOQ:	10pcs
Price:	Negotiable
Packaging Details:	Paper box
Payment Terms:	Western Union,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, RoHS, MSDS, Un38.3

Document:

Nominal Capacity:

750mAh

Charging Current:

Continuous Discharging Current:

Max Discharging Current:

Weight:

Cycle Life:

500cycles

Warranty:

12months

Shipping:

UPS, DHL, FedEx, TNT, By Air, By Sea, Special Line

Connector:

Jst, Molex....

Specification:

9*20*40mm

Supply Ability:

50000pcs/day

Highlight:

Lithium Polymer Battery Cell 700mAh

Lithium Polymer Battery Cell 902040

LED Flashlight Lipo Battery Cells

Product Description

Pouch Lithium Polymer Battery Cell 902040 3.7V 700mAh 750mAh For LED Flashlight

Product Specifications

Attribute	Value
Nominal Capacity	750mAh
Charging Current	0.2c
Continuous Discharging Current	0.5c
Max Discharging Current	1c
Weight	11g
Cycle Life	500cycles
Warranty	12months
Shipping	UPS, DHL, FedEx, TNT, by Air, by Sea, Special Line
Connector	Jst, Molex....
Specification	92040mm

Technical Details

Batteries: 3.7V 750mAh LiPo battery
Charge voltage: 4.2V
Nominal voltage: 3.7V
Nominal capacity: 750mAh (0.2C Discharge)
Charge current: Standard Charging: 0.5C, Rapid charge: 1.0C
Standard Charging method: 0.5C CC charge to 4.2V, then CV charge till current ≤0.05C
Charging time: Standard: 2.75 hours, Rapid: 2 hours
Max charge current: 1.0C
Max discharge current: 1.0C
Discharge cut-off voltage: 2.75V (0.2C)
Operating temperature: Charging: 0°C~45°C, Discharging: 0°C~45°C
Storage temperature: -10°C~+45°C
Dimension: 40±2mm (L) × 20±0.5mm (W) × 9±0.2mm (T)
Drop Test: Passes 1m drop test twice onto concrete (no fire, no leakage)
Cycle life: ≥500 cycles

Applications

Unmanned Aerial Vehicles (UAVs) or Drones

Ideal for drones requiring lightweight, high-energy-density batteries for extended flight durations without frequent battery swaps.

Remote-Controlled Toys and Models

Perfect for RC cars, planes, and boats needing high discharge rates and long runtimes for rapid acceleration and sustained performance.

Industrial and Medical Equipment

Used in industrial tools and portable medical devices like defibrillators and ECG machines where reliability and long battery life are crucial.

GPS Tracking Devices

Excellent for GPS trackers requiring compact form factors and long operational life in discreet, lightweight designs.

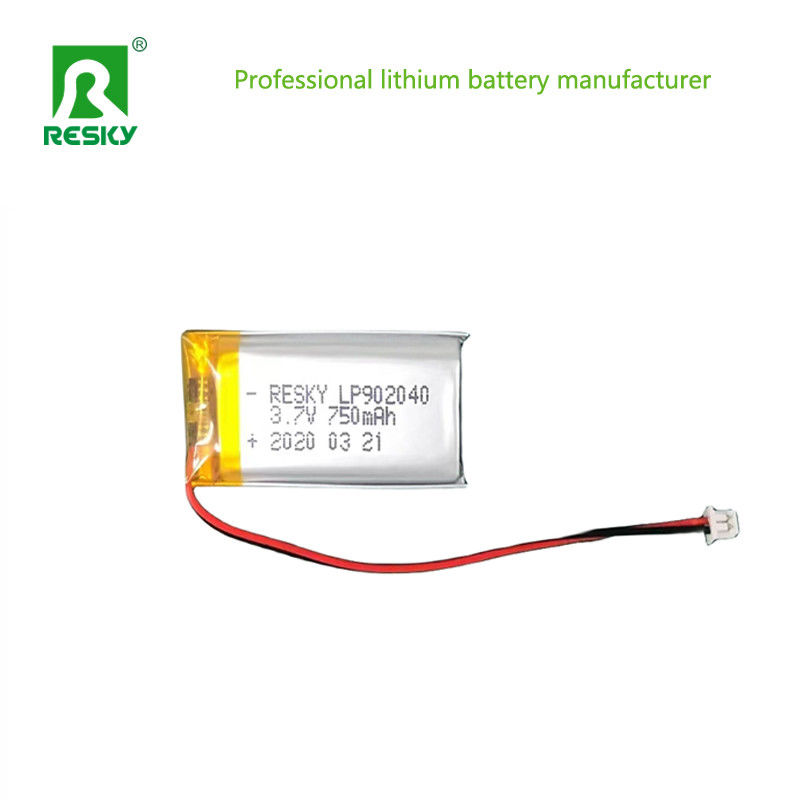

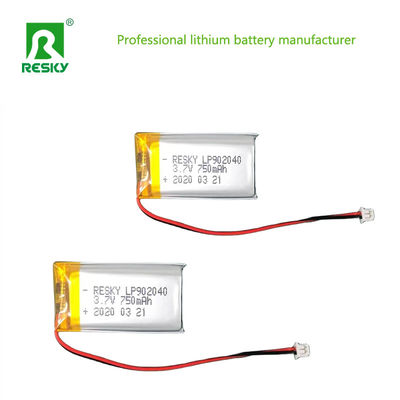

Product Images
