Lithium Polymer Lipo Battery Cell 502030 3.7v 250mAh For Bluetooth Speaker

Brand Name: RESKY
Model Number: LP502030
MOQ: 10pcs
Price: Negotiable
Packaging Details: Paper box
Payment Terms: T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE, RoHS, MSDS, Un38.3
Document:
LP502030 250mAh cell specif...on.pdf
Nominal Capacity:
250mAh
Charging Current:
0.2c
Continuous Discharging Current:
0.5c
Max Discharging Current:
1c
Weight:
11g
Cycle Life:
500cycles
Warranty:
12months
Connector:
Jst, Molex....
OEM Service:
Yes
Specification:
9*20*40mm
Supply Ability:
50000pcs/day
Highlight:

Lipo Battery Cell 502030

,

Lipo Battery Cell 250mAh

,

Bluetooth Speaker Lipo Battery Cell

Product Description
Product Description


Lithium Polymer Battery Cell 502030 3.7v 250mAh Lipo Batteries For Bluetooth Speaker




NO. Items Specifications
1 batteries  3.7v 250mah lipo battery
2 Charge voltage 4.2V
3 Nominal voltage 3.7V
4 Nominal capacity 250mAh     0.2C Discharge
5 Charge current
         		 Standard Charging:0.5C
Rapid charge:     1.0C
6 Standard Charging method 0.5C CC(constant current)charge to 4.2V, then CV(constant voltage 4.2V)charge till charge current decline to ≤0.05C
7 Charging time
         		 Standard Charging:2.75hours(Ref.)
Rapid charge:     2hours(Ref.)
8 Max.charge current 1.0C
9 Max.discharge current 1.0C
10 Discharge cut-off voltage 2.75V(0.2C)
11 Operating temperature Charging:  0 °C ~45 °C
Discharging:0 °C ~45 °C
12 Storage temperature -10°C~ +45 °C
13  Dimension Length: 50±2mm (not including tabs)
Width: 20±0.5mm
 Thickness:5±0.2mm
14 Drop Test The cell is to be dropped from a height of meter twice onto concrete ground. No fire, no leakage
15 cycle time ≥500times





Application:





Flexible Design:



Customizable Shape: They can be manufactured in various shapes and sizes to fit specific device requirements. For example, in wearable devices like smartwatches and fitness trackers, flat lithium polymer batteries can be designed to conform to the curved or slim form factors of these devices.



Thin Profile: They can be made extremely thin, with some capable of reaching thicknesses as low as 0.5mm. This is highly beneficial for applications where space is at a premium, such as in credit card-sized devices or ultra-thin laptops.



High Energy Density: They have a relatively high energy density, meaning they can store a large amount of energy in a small volume and lightweight package. This enables longer usage times for devices. For instance, in smartphones, flat lithium polymer batteries allow for all-day operation without the device being overly bulky or heavy.



Lightweight: Compared to some other battery types, flat lithium polymer batteries are lightweight, which is advantageous for portable applications. In drones, the use of lightweight flat lithium polymer batteries helps to reduce the overall weight of the drone, improving its flight performance and efficiency.



Picures:

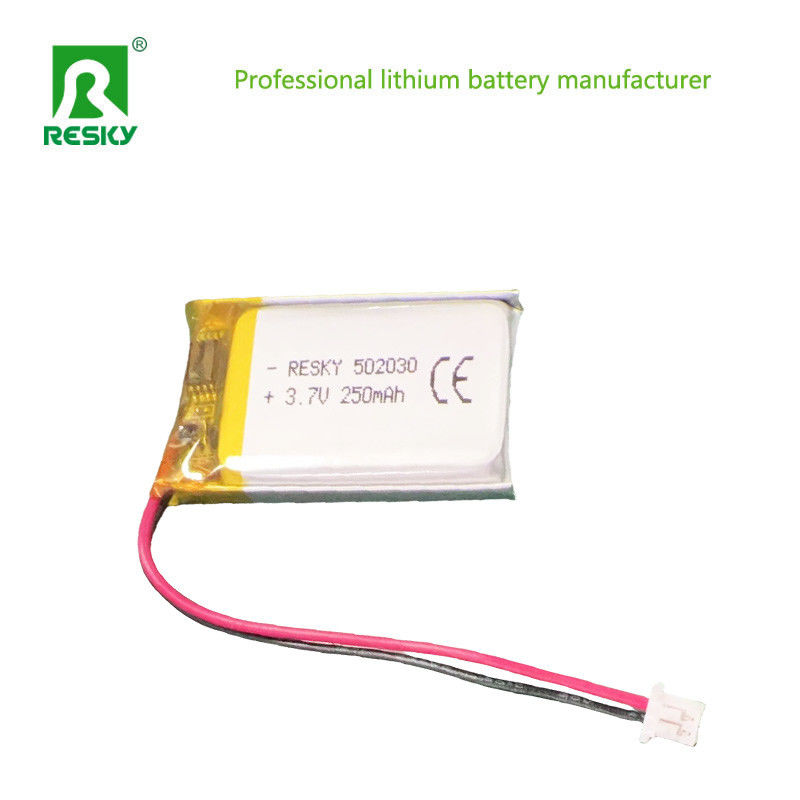

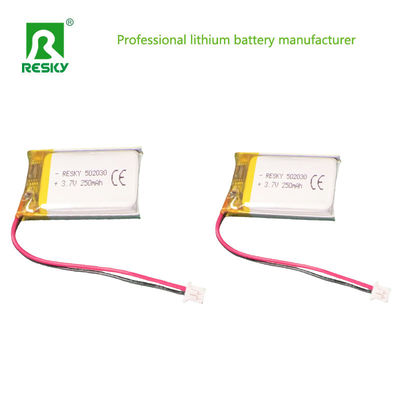

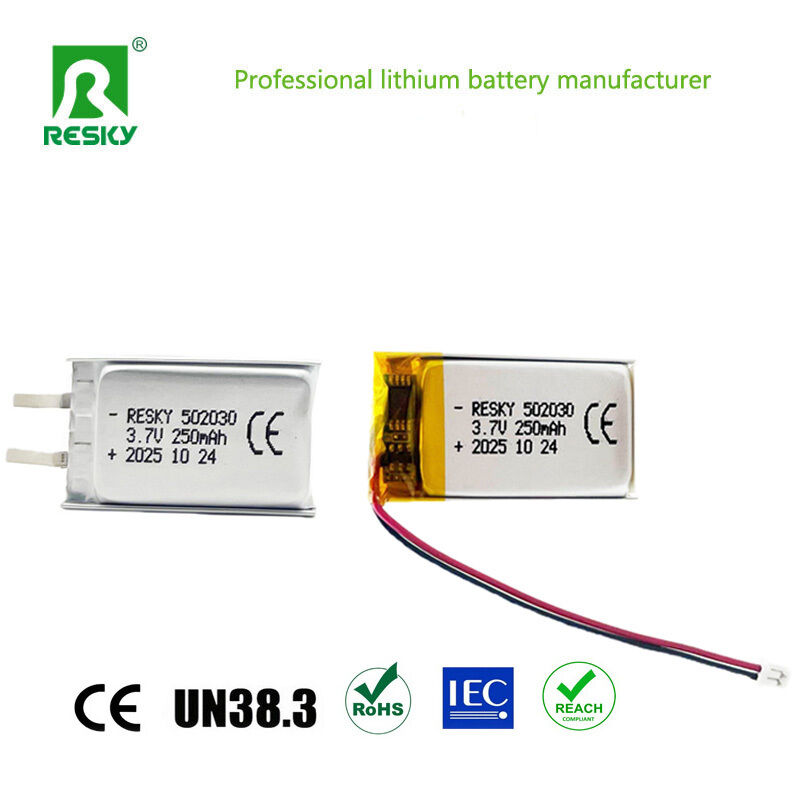

Lithium Polymer Lipo Battery Cell 502030 3.7v 250mAh For Bluetooth Speaker 0

Lithium Polymer Lipo Battery Cell 502030 3.7v 250mAh For Bluetooth Speaker 1

Lithium Polymer Lipo Battery Cell 502030 3.7v 250mAh For Bluetooth Speaker 2

Lithium Polymer Lipo Battery Cell 502030 3.7v 250mAh For Bluetooth Speaker 3

Lithium Polymer Lipo Battery Cell 502030 3.7v 250mAh For Bluetooth Speaker 4
