Power Lithium Polymer Battery Cell 505060 2000mAh 7.4wh 3.7V For Medical Device

Brand Name: RESKY
Model Number: LP505060
MOQ: 10pcs
Price: Negotiable
Packaging Details: Paper box
Payment Terms: Western Union,T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE, RoHS, MSDS, Un38.3
Model NO.:
LP505060
Nominal Capacity:
2000mAh
Max Discharging Current:
1c
Weight:
25g
MOQ:
10PCS
Shipping:
UPS, DHL, FedEx, TNT, By Air, By Sea, Special Line
Lead Time:
3-7workdays
Connector:
Jst, Molex....
Original:
Shenzhen, China
Specification:
5*50*60mm
Supply Ability:
50000pcs/day
Highlight:

7.4wh Lithium Polymer Battery Cell

Product Description
Product Description


Power Lithium polymer battery cell 505060 2000mAh 7.4wh 3.7V for medical device



NO. Items Specifications
1 batteries  3.7v 2000mah lipo battery
2 Charge voltage 4.2V
3 Nominal voltage 3.7V
4 Nominal capacity 2000mAh     0.2C Discharge
5 Charge current
        		 Standard Charging:0.5C
Rapid charge:     1.0C
6 Standard Charging method 0.5C CC(constant current)charge to 4.2V, then CV(constant voltage 4.2V)charge till charge current decline to ≤0.05C
7 Charging time
        		 Standard Charging:2.75hours(Ref.)
Rapid charge:     2hours(Ref.)
8 Max.charge current 1.0C
9 Max.discharge current 1.0C
10 Discharge cut-off voltage 2.5V0.25V(0.2C)
11 Operating temperature Charging:  0 °C ~45 °C
Discharging:0 °C ~45 °C
12 Storage temperature -10°C~ +45 °C
13  Dimension Length:60±2mm (not including tabs)
Width:50±0.5mm
Thickness:5±0.2mm
14 Drop Test The cell is to be dropped from a height of meter twice onto concrete ground. No fire, no leakage
15 cycle time ≥500times



Advantages:



Long Cycle Life: These batteries typically have a longer lifecycle, withstanding numerous charge and discharge cycles before significant capacity degradation occurs.





Low Self-Discharge Rate: Lithium polymer batteries exhibit a low self-discharge rate, meaning they retain their charge better over time when not in use. This is particularly beneficial for devices that may be stored for extended periods.



Improved Safety: Advances in technology have led to the development of safer lithium polymer batteries with enhanced protection mechanisms against overcharging, overheating, and short-circuiting. Although safety concerns still exist, modern designs have significantly mitigated these risks.



Pictures:

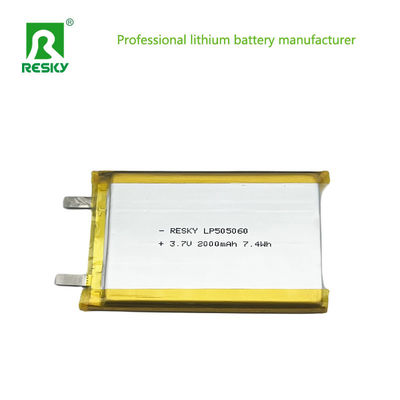

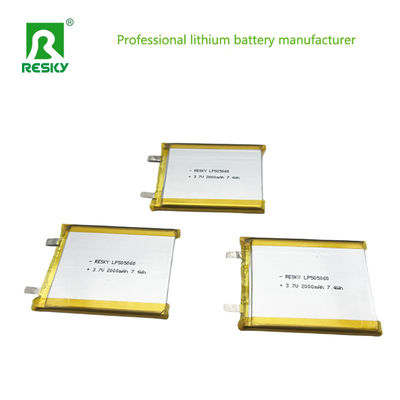

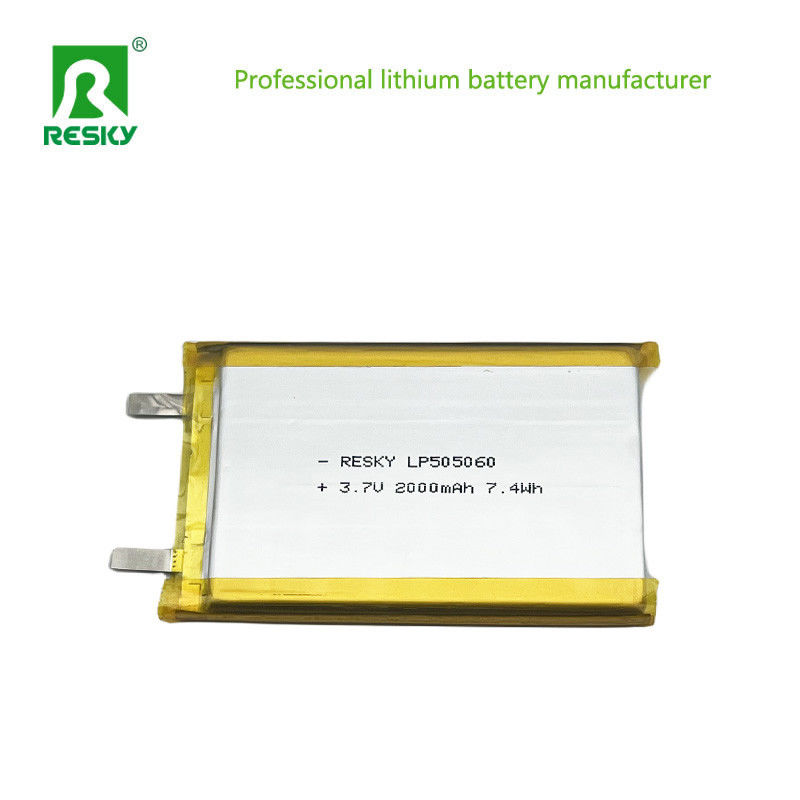

Power Lithium Polymer Battery Cell 505060 2000mAh 7.4wh 3.7V For Medical Device 0

Power Lithium Polymer Battery Cell 505060 2000mAh 7.4wh 3.7V For Medical Device 1

Power Lithium Polymer Battery Cell 505060 2000mAh 7.4wh 3.7V For Medical Device 2

Power Lithium Polymer Battery Cell 505060 2000mAh 7.4wh 3.7V For Medical Device 3

Power Lithium Polymer Battery Cell 505060 2000mAh 7.4wh 3.7V For Medical Device 4




Tags:

Lipo Batteries

Lithium Polymer Battery Pack

Li-Polymer Batteries
