604070 Lithium Polymer Battery Cell 3.7v 2000mAh Power Lipo Batteries For Consumer

Brand Name:	RESKY
Model Number:	LP604070
MOQ:	10pcs
Price:	Negotiable
Packaging Details:	Paper box
Payment Terms:	Western Union,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, RoHS, MSDS, Un38.3

Model NO.:

LP604070

Discharge Rate:

Low Discharge Rate

Nominal Capacity:

2000mAh

Continuous Discharging Current:

Max Discharging Current:

Weight:

Cycle Life:

500cycles

Warranty:

12months

OEM Service:

Specification:

6*40*70mm

Supply Ability:

50000pcs/day

Highlight:

604070 Lithium Polymer Battery Cell

2000mAh Lithium Polymer Battery Cell

Lithium Polymer Battery Cell 3.7v

Product Description

Product Description

Lithium Polymer Battery Cell 604070 3.7v 2000mAh Power Lipo Batteries For Consumer

NO.	Items	Specifications
1	batteries	3.7v 2000mah lipo battery
2	Charge voltage	4.2V
3	Nominal voltage	3.7V
4	Nominal capacity	2000mAh 0.2C Discharge
5	Charge current	Standard Charging:0.5C Rapid charge: 1.0C
6	Standard Charging method	0.5C CC(constant current)charge to 4.2V, then CV(constant voltage 4.2V)charge till charge current decline to ≤0.05C
7	Charging time	Standard Charging:2.75hours(Ref.) Rapid charge: 2hours(Ref.)
8	Max.charge current	1.0C
9	Max.discharge current	1.0C
10	Discharge cut-off voltage	2.5V0.25V(0.2C)
11	Operating temperature	Charging: 0 °C ~45 °C Discharging:0 °C ~45 °C
12	Storage temperature	-10°C~ +45 °C
13	Dimension	Length:70±2mm (not including tabs) Width:40±0.5mm Thickness:6±0.2mm
14	Drop Test	The cell is to be dropped from a height of meter twice onto concrete ground. No fire, no leakage
15	cycle time	≥500times

Advantages:

Thin and Lightweight Design:

Lithium polymer batteries can be designed to be extremely thin and lightweight. This is due to their use of flexible polymer electrolytes, which allow for a more compact battery structure.
This thin design is ideal for portable devices, such as smartphones and tablets, where space and weight are at a premium.

Flexible Shape and Size:

Unlike traditional lithium-ion batteries, which often come in standard shapes and sizes, lithium polymer batteries can be customized to fit various devices and applications.
This flexibility in design makes them suitable for a wide range of products, particularly those that require a specific battery shape or size.

High Energy Density:

Lithium polymer batteries tend to have a higher energy density than some traditional battery types. This means they can store more energy in a smaller volume and weight.
As a result, devices powered by lithium polymer batteries can often operate for longer periods without needing to be recharged.

Picures:

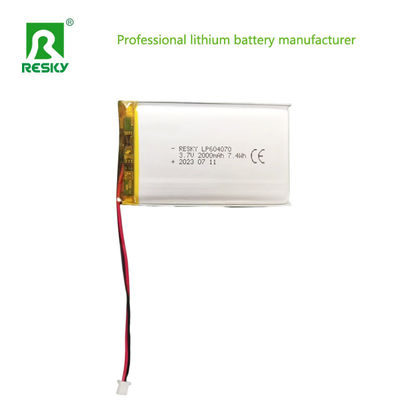

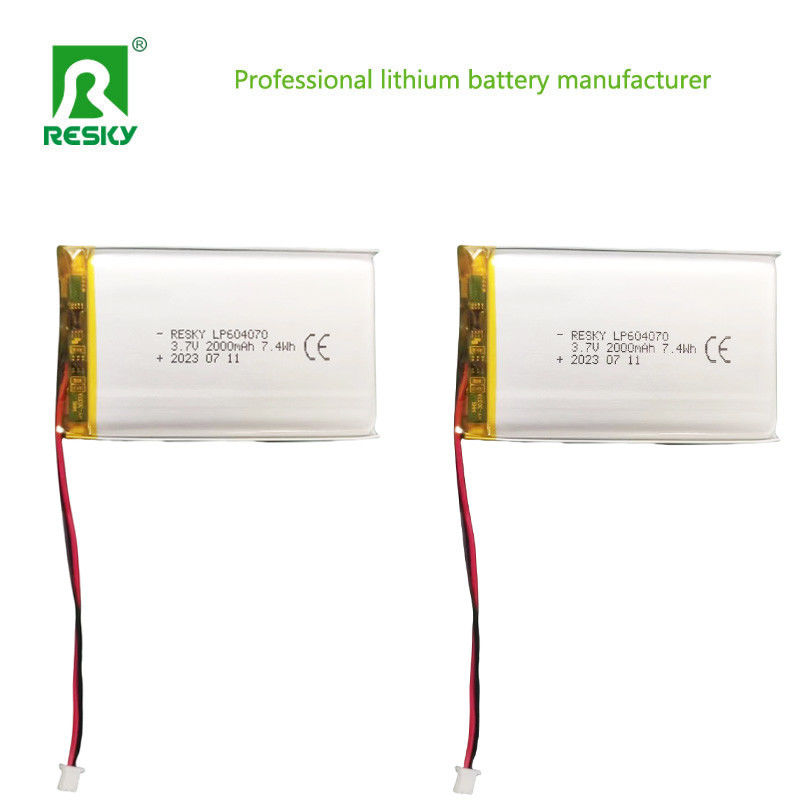

604070 Lithium Polymer Battery Cell 3.7v 2000mAh Power Lipo Batteries For Consumer 0

604070 Lithium Polymer Battery Cell 3.7v 2000mAh Power Lipo Batteries For Consumer 1

604070 Lithium Polymer Battery Cell 3.7v 2000mAh Power Lipo Batteries For Consumer 2

604070 Lithium Polymer Battery Cell 3.7v 2000mAh Power Lipo Batteries For Consumer 3

604070 Lithium Polymer Battery Cell 3.7v 2000mAh Power Lipo Batteries For Consumer 4
