Power Lithium Polymer Battery Cell 606090 3.7V 4.2V 4000mAh 14.8Wh Lipo Batteries

Brand Name:	RESKY
Model Number:	LP606090
MOQ:	10pcs
Price:	Negotiable
Packaging Details:	Paper box
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, RoHS, MSDS, Un38.3

Document:

Model NO.:

LP606090

Discharge Rate:

Low Discharge Rate

Shape:

Square Battery

Rechargeable:

Chargeable

Nominal Capacity:

4000mAh

Cycle Life:

500cycles

Warranty:

12months

Shipping:

UPS, DHL, FedEx, TNT, By Air, By Sea, Special Line

Lead Time:

3-7workdays

Specification:

6*60*90mm

Supply Ability:

50000pcs/day

Highlight:

14.8Wh Lithium Polymer Battery Cell

4000mAh Lithium Polymer Battery Cell

Product Description

Power Lithium Polymer Battery Cell 606090 3.7V 4.2V 4000mAh 14.8Wh Lipo Batteries

Product Attributes

Attribute	Value
Model NO.	LP606090
Discharge Rate	Low Discharge Rate
Shape	Square Battery
Rechargeable	Chargeable
Nominal Capacity	4000mAh
Cycle Life	500cycles
Warranty	12months
Shipping	UPS, DHL, FedEx, TNT, by Air, by Sea, Special Line
Lead Time	3-7workdays
Specification	66090mm

Technical Specifications

NO.	Items	Specifications
1	Batteries	3.7V 4000mah lipo battery
2	Charge voltage	4.2V
3	Nominal voltage	3.7V
4	Nominal capacity	4000mAh 0.2C Discharge
5	Charge current	Standard Charging:0.2C Rapid charge: 1.0C
6	Standard Charging method	0.5C CC(constant current)charge to 4.2V, then CV(constant voltage 4.2V)charge till charge current decline to ≤0.05C
7	Charging time	Standard Charging:2.75hours(Ref.) Rapid charge: 2hours(Ref.)
8	Max.charge current	0.5C
9	Max.discharge current	1.0C
10	Discharge cut-off voltage	2.5V0.25V(0.2C)
11	Operating temperature	Charging: 0°C ~45°C Discharging: 0°C ~45°C
12	Storage temperature	-10°C~ +45°C

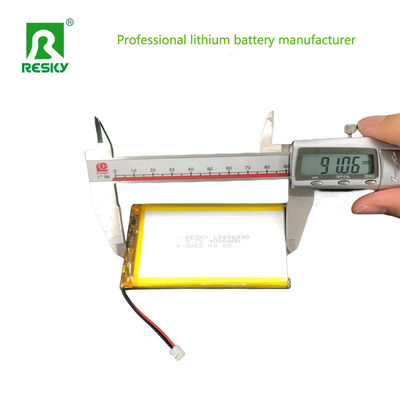

13	Dimension	Length:90±0.5mm (not including tabs) Width:60±0.5mm Thickness:6±0.2mm
14	Drop Test	The cell is to be dropped from a height of meter twice onto concrete ground. No fire, no leakage
15	Cycle time	≥800times

Applications

Portable Devices:

Laptops and Notebooks: Li-poly batteries contribute to the sleek and lightweight design of modern laptops.
Portable Game Consoles: These devices rely on Li-poly batteries for extended gaming sessions without being tethered to a power outlet.
E-readers: Devices like Kindles use Li-poly batteries to ensure long reading times on a single charge.

Electric Vehicles (EVs) and Drones:

Electric Scooters and Bicycles: Li-poly batteries offer high energy density, making them ideal for powering electric transportation options.
Drones: These unmanned aerial vehicles use Li-poly batteries to support long flight durations and stable performance.
Electric Cars: While lithium-ion batteries are more common in full-sized EVs, Li-poly batteries have been explored or used in some hybrid and smaller EV models due to their packaging flexibility.

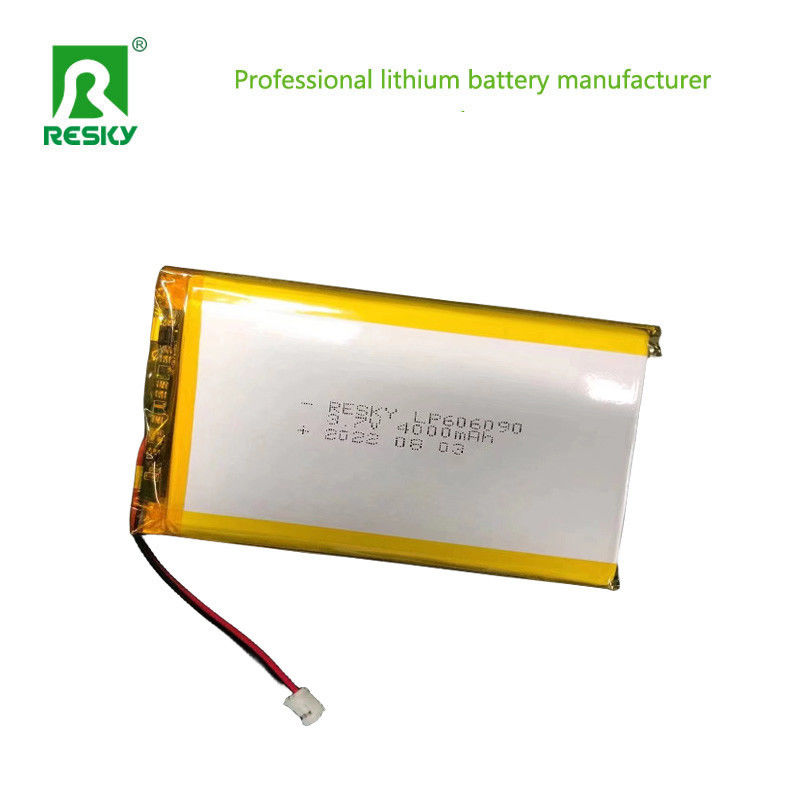

Product Images
