Portable Medical Device Lipo Cells 604070 3.7V 2000mAh 7.4wh

Brand Name:	RESKY
Model Number:	LP604070
MOQ:	10pcs
Price:	Negotiable
Packaging Details:	Paper box
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

CE, RoHS, MSDS, Un38.3

Discharge Rate:

Low Discharge Rate

Shape:

Square Battery

Nominal Capacity:

2000mAh

Weight:

Cycle Life:

500cycles

Warranty:

12months

Connector:

Jst, Molex....

Specification:

6*40*70mm

HS Code:

8507600090

Supply Ability:

100000PCS/Day

Supply Ability:

50000pcs/day

Highlight:

Portable Medical Device Lipo Cells

Lipo Cells 604070

7.4wh Lipo Lithium Battery

Product Description

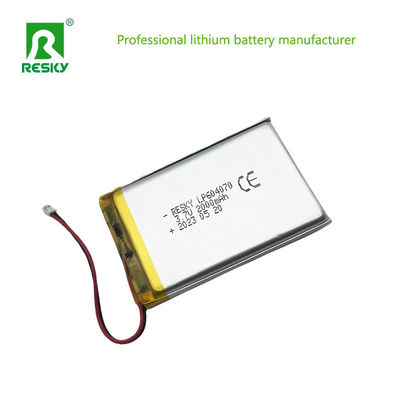

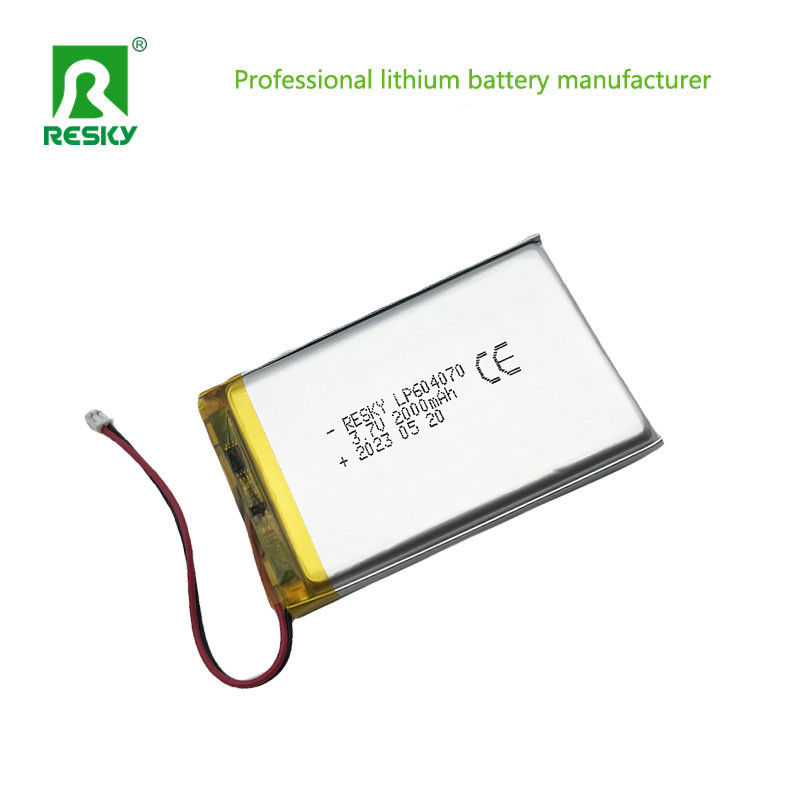

Portable Medical Device Lipo Cells 604070 3.7V 2000mAh 7.4wh

Lithium Polymer Battery Cell 604070 3.7V 2000mAh 7.4Wh designed specifically for portable medical devices, offering reliable power with high energy density.

Technical Specifications

NO.	Items	Specifications
1	Batteries	3.7V 2000mAh LiPo battery
2	Charge voltage	4.2V
3	Nominal voltage	3.7V
4	Nominal capacity	2000mAh @ 0.2C Discharge
5	Charge current	Standard Charging: 0.5C Rapid charge: 1.0C
6	Standard Charging method	0.5C CC charge to 4.2V, then CV charge till current ≤0.05C
7	Charging time	Standard: 2.75 hours (Ref.) Rapid: 2 hours (Ref.)
8	Max. charge current	1.0C
9	Max. discharge current	1.0C
10	Discharge cut-off voltage	2.5V±0.25V (0.2C)
11	Operating temperature	Charging: 0°C ~45°C Discharging: 0°C ~45°C
12	Storage temperature	-10°C ~ +45°C
13	Dimension	Length: 70±2mm (excluding tabs) Width: 40±0.5mm Thickness: 6±0.2mm
14	Drop Test	Dropped from 1m height twice onto concrete - no fire, no leakage
15	Cycle time	≥500 cycles

Applications

Unmanned Aerial Vehicles (UAVs) or Drones: Provides lightweight, high-energy-density power for extended flight durations.
Remote-Controlled Toys and Models: Delivers high discharge rates for rapid acceleration and sustained performance.
Industrial and Medical Equipment: Reliable power source for portable medical devices like defibrillators and ECG machines.
