Lithium Polymer Battery Cell

Prismatic Lithium Polymer Battery Cell 803060 3.7V 1500mAh 5.55wh For Pet Locator

All Category

RC Accessories

Mrs. Alice

alice@szresky.com

0086 13530058480

Contact Now

Prismatic Lithium Polymer Battery Cell 803060 3.7V 1500mAh 5.55wh For Pet Locator

Brand Name:	RESKY
Model Number:	LP803060
MOQ:	10pcs
Price:	Negotiable
Packaging Details:	Paper box
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, RoHS, MSDS, Un38.3

Nominal Capacity:

1500mAh

Weight:

10PCS

Cycle Life:

500cycles

Warranty:

12months

Shipping:

UPS, DHL, FedEx, TNT, By Air, By Sea, Special Line

Original:

Shenzhen, China

Specification:

8*30*60mm

HS Code:

8507600090

Supply Ability:

100000PCS/Day

Supply Ability:

50000pcs/day

Highlight:

Prismatic Lithium Polymer Battery Cell

Product Description

Product Description

Prismatic Lithium Polymer Battery Cell 803060 3.7V 1500mAh 5.55wh For Pet Locator

NO.	Items	Specifications
1	batteries	3.7v 1500mah lipo battery
2	Charge voltage	4.2V
3	Nominal voltage	3.7V
4	Nominal capacity	1500mAh 0.2C Discharge
5	Charge current	Standard Charging:0.5C Rapid charge: 1.0C
6	Standard Charging method	0.5C CC(constant current)charge to 4.2V, then CV(constant voltage 4.2V)charge till charge current decline to ≤0.05C
7	Charging time	Standard Charging:2.75hours(Ref.) Rapid charge: 2hours(Ref.)
8	Max.charge current	1.0C
9	Max.discharge current	1.0C
10	Discharge cut-off voltage	2.5V0.25V(0.2C)
11	Operating temperature	Charging: 0 °C ~45 °C Discharging:0 °C ~45 °C
12	Storage temperature	-10°C~ +45 °C
13	Dimension	Length:60±2mm (not including tabs) Width:30±0.5mm Thickness:8±0.2mm
14	Drop Test	The cell is to be dropped from a height of meter twice onto concrete ground. No fire, no leakage
15	cycle time	≥500times

Application:

Remote-Controlled Toys and Models

LiPo batteries are popular in remote-controlled cars, planes, boats, and other toys due to their ability to provide high discharge rates and long runtimes. This makes them ideal for applications that require rapid acceleration and sustained performance.

Portable Media Players

Devices like MP3 players, portable game consoles, and digital cameras often use LiPo batteries because they are lightweight, have a high energy-to-weight ratio, and can be easily shaped to fit within the device's housing.

Industrial and Medical Equipment

In industrial settings, LiPo batteries are used in tools and equipment that require compact, high-performance power sources. In the medical field, they are found in portable medical devices such as defibrillators and ECG machines, where reliability and long battery life are crucial.

GPS Tracking Devices

LiPo batteries are often used in GPS tracking devices due to their long operational life and ability to be shaped into compact forms, which is essential for devices that need to be discreet and lightweight.

Picures:

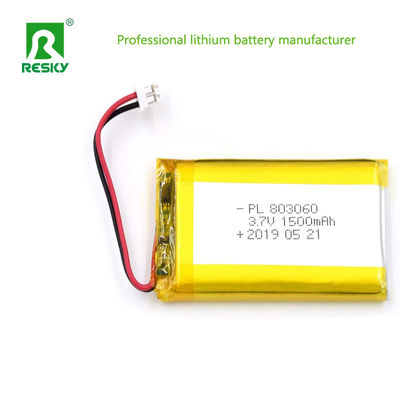

Prismatic Lithium Polymer Battery Cell 803060 3.7V 1500mAh 5.55wh For Pet Locator 0

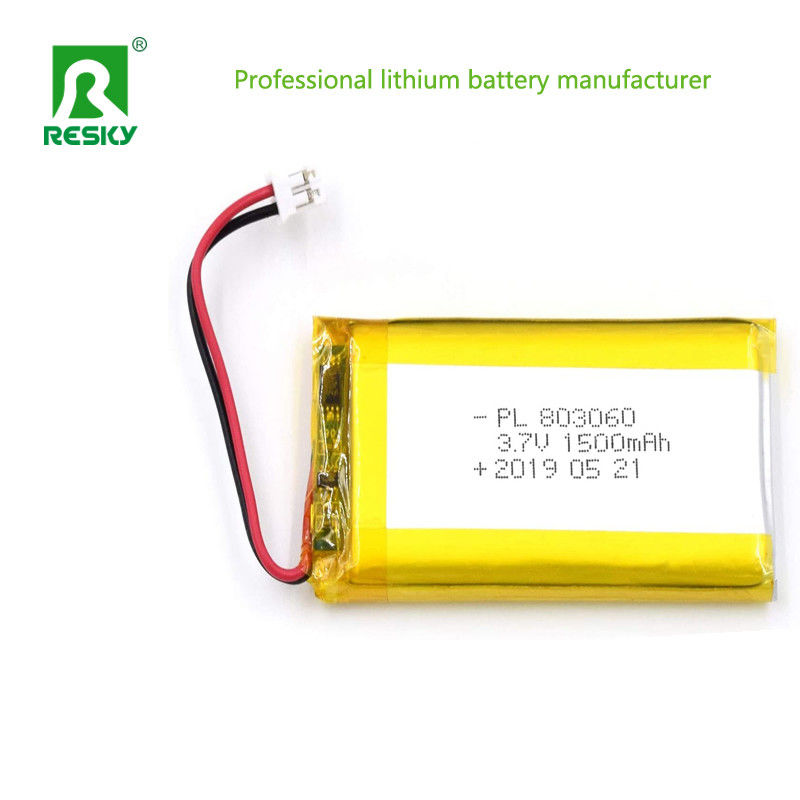

Prismatic Lithium Polymer Battery Cell 803060 3.7V 1500mAh 5.55wh For Pet Locator 1

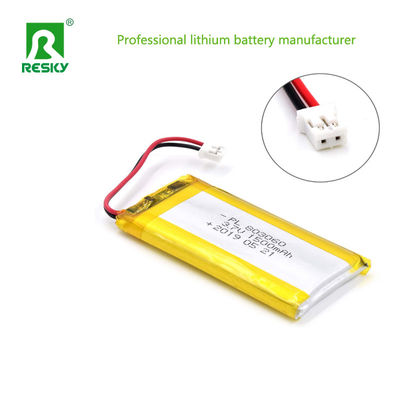

Prismatic Lithium Polymer Battery Cell 803060 3.7V 1500mAh 5.55wh For Pet Locator 2

Prismatic Lithium Polymer Battery Cell 803060 3.7V 1500mAh 5.55wh For Pet Locator 3

Prismatic Lithium Polymer Battery Cell 803060 3.7V 1500mAh 5.55wh For Pet Locator 4
