Solar Lithium Polymer Battery Cell 703048 1000mAh 3.7V For Consumer Electronics

Brand Name: RESKY
Model Number: LP703048
MOQ: 10pcs
Price: Negotiable
Packaging Details: Paper box
Payment Terms: T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE, RoHS, MSDS, Un38.3
Document:
LP703048-1000mAh with PCB s...25.pdf
Model NO.:
LP703048
Discharge Rate:
Low Discharge Rate
Shape:
Square Battery
Nominal Capacity:
1000mAh
Weight:
9g
Cycle Life:
500cycles
Warranty:
12months
Specification:
7*30*48mm
HS Code:
8507600090
Supply Ability:
100000PCS/Day
Supply Ability:
50000pcs/day
Highlight:

1000mAh Lithium Polymer Battery Cell

Product Description
Product Description


Solar Lithium polymer battery cell 703048 1000mAh 3.7V For Consumer Electronics



NO. Items Specifications
1 batteries  3.7v 1000mah lipo battery
2 Charge voltage 4.2V
3 Nominal voltage 3.7V
4 Nominal capacity 1000mAh     0.2C Discharge
5 Charge current
        		 Standard Charging:0.5C
Rapid charge:     1.0C
6 Standard Charging method 0.5C CC(constant current)charge to 4.2V, then CV(constant voltage 4.2V)charge till charge current decline to ≤0.05C
7 Charging time
        		 Standard Charging:2.75hours(Ref.)
       Rapid charge:     2hours(Ref.)
8 Max.charge current 1.0C
9 Max.discharge current 1.0C
10 Discharge cut-off voltage 2.5V0.25V(0.2C)
11 Operating temperature Charging:  0 °C ~45 °C
  Discharging:0 °C ~45 °C
12 Storage temperature -10°C~ +45 °C
13  Dimension Length: 48±2mm (not including tabs)
Width: 30±0.5mm
Thickness:7±0.2mm
14 Drop Test The cell is to be dropped from a height of meter twice onto concrete ground. No fire, no leakage
15 cycle time ≥500times
Knowledge of battery maintenance:



Maintenance of new batteries


The necessary visual inspection should be carried out before the new battery is installed, and it can be used directly after the inspection is free of defects. The battery is mostly half-full before leaving the factory, and the battery has been aging, and there is no need to perform special activation again. Before charging a new battery, ensure that the charger matches the battery to avoid battery damage.

Instructions for fast charging

For non-fast-charge series batteries, it is not recommended to use fast-charge devices to quickly charge the batteries. Fast charging will make the material transfer produced by the internal electrochemical reaction of the battery fail to keep up with the charge transfer, and the electrode material will produce large irreversible changes and lose capacity.

Battery storage



When the battery is not stored for a long time, the battery should be charged to 50%-70%, and the storage temperature should be below 25ºC.


Battery charging

When using an electric vehicle charger to charge an electric vehicle, you should first connect the charger to the electric vehicle, and then connect the charger to the power supply. If the sequence is reversed, it will easily cause a short circuit. Keep ventilated when charging, and place the charger on non-flammable objects, as the flammable parts of the vehicle.

Daily maintenance

During normal use, avoid overcharging and overdischarging the battery. During use, if the battery life drops rapidly, you should find professional maintenance personnel to inspect the vehicle and the battery in time, and you must not disassemble the battery for inspection. When used at low temperatures, the problem of reduced range may occur, which is a normal phenomenon. Care should be taken to avoid extending the range by increasing the charging time. When using it under high temperature in summer, it is strictly forbidden to expose the battery to the sun, charge it, and charge it directly without heat dissipation after use.



Pictures:

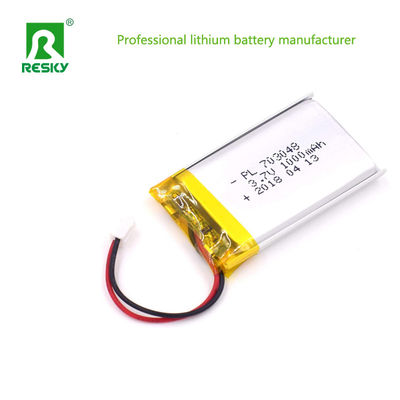

Solar Lithium Polymer Battery Cell 703048 1000mAh 3.7V For Consumer Electronics 0

Solar Lithium Polymer Battery Cell 703048 1000mAh 3.7V For Consumer Electronics 1

Solar Lithium Polymer Battery Cell 703048 1000mAh 3.7V For Consumer Electronics 2

Solar Lithium Polymer Battery Cell 703048 1000mAh 3.7V For Consumer Electronics 3

Solar Lithium Polymer Battery Cell 703048 1000mAh 3.7V For Consumer Electronics 4
