Customized Lipo Battery Cells 552535 3.7V 430mAh 400mAh Power

Brand Name:	RESKY
Model Number:	LP552535
MOQ:	10PCS
Price:	Negotiable
Packaging Details:	Paper box
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

CE, RoHS, MSDS, Un38.3

Shape:

Square Battery

Electrolyte:

Li(Nicomn)O2

Rechargeable:

Chargeable

Nominal Capacity:

400mAh

Weight:

11g

Warranty:

12months

Shipping:

UPS, DHL, FedEx, TNT, By Air, By Sea, Special Line

OEM Service:

Yes

Specification:

5.5*25*35mm

HS Code:

8507600090

Supply Ability:

50000pcs/day

Highlight:

Customized Lipo Battery Cells

Lipo Battery Cells 552535

3.7V 430mAh Lipo Battery Cells

Product Description

Customized Lipo Battery Cells 552535 3.7V 430mAh 400mAh Power

High-performance Lithium Polymer Battery Cell with model number 552535, offering 3.7V nominal voltage and 430mAh capacity. Designed for reliable power in compact devices.

Technical Specifications

Item	Specification
Battery Type	3.7V 430mAh LiPo Battery
Charge Voltage	4.2V
Nominal Voltage	3.7V
Nominal Capacity	430mAh (0.2C Discharge)
Charge Current	Standard: 0.5C Rapid: 1.0C
Standard Charging Method	0.5C CC charge to 4.2V, then CV charge till current ≤0.05C
Charging Time	Standard: 2.75 hours (Ref.) Rapid: 2 hours (Ref.)
Max Charge Current	1.0C
Max Discharge Current	1.0C
Discharge Cut-off Voltage	2.5V±0.25V (0.2C)
Operating Temperature	Charging: 0°C ~45°C Discharging: 0°C ~45°C
Storage Temperature	-10°C ~ +45°C
Dimensions	Length: 35±2mm (excluding tabs) Width: 25±0.5mm Thickness: 5.5±0.2mm
Drop Test	Withstands 1m drops onto concrete (twice) - No fire, no leakage
Cycle Life	≥500 cycles

Key Advantages

Flexible Design: Customizable shapes and sizes to fit specific device requirements
Enhanced Safety: Solid/gel-state electrolytes and aluminum-plastic packaging minimize leakage and explosion risks
Wide Temperature Range: Reliable performance in extreme hot and cold environments

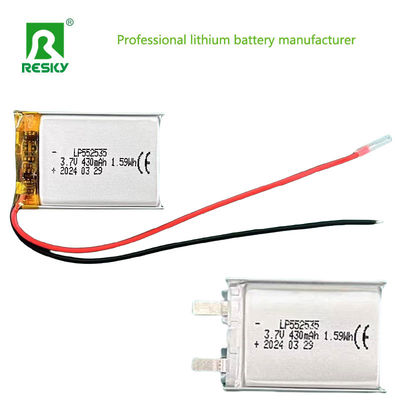

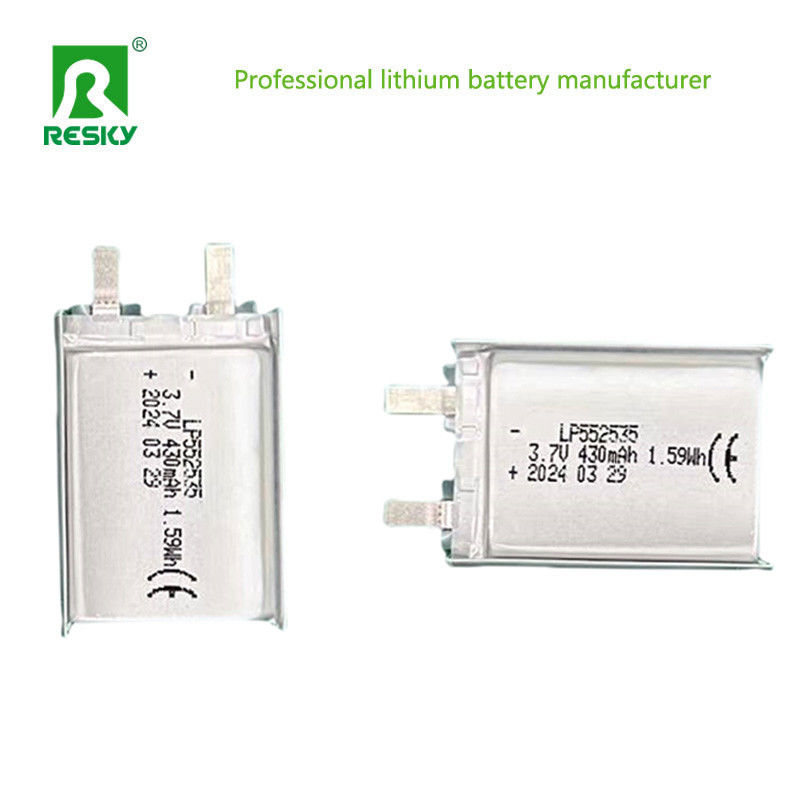

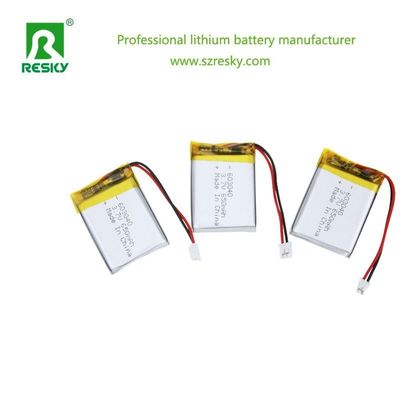

Product Images
