Lithium Polymer Battery Cell

Lithium Polymer Battery Cell 3.7V 603040 750mAh Rechargeable Batteries For 3D Lamp

All Category

RC Accessories

Mrs. Alice

alice@szresky.com

0086 13530058480

0086 13530058480

Contact Now

Lithium Polymer Battery Cell 3.7V 603040 750mAh Rechargeable Batteries For 3D Lamp

Brand Name:	RESKY
Model Number:	LP603040
MOQ:	10pcs
Price:	Negotiable
Packaging Details:	Paper box
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, RoHS, MSDS, Un38.3

Model NO.:

LP603040

Shape:

Square Battery

Nominal Capacity:

650mAh

Weight:

Cycle Life:

500cycles

Warranty:

12months

Shipping:

UPS, DHL, FedEx, TNT, By Air, By Sea, Special Line

Lead Time:

3-7workdays

Specification:

6*30*40mm

HS Code:

8507600090

Supply Ability:

50000pcs/day

Highlight:

603040 Lithium Polymer Battery Cell

750mAh Lithium Polymer Battery Cell

Product Description

Lithium Polymer Battery Cell 3.7V 603040 750mAh Rechargeable Batteries For 3D Lamp

Technical Specifications

NO.	Items	Specifications
1	Batteries	3.7V 750mAh LiPo battery
2	Charge voltage	4.2V
3	Nominal voltage	3.7V
4	Nominal capacity	750mAh @ 0.2C Discharge
5	Charge current	Standard Charging: 0.5C Rapid charge: 1.0C
6	Standard Charging method	0.5C CC (constant current) charge to 4.2V, then CV (constant voltage 4.2V) charge till charge current declines to ≤0.05C
7	Charging time	Standard Charging: 2.75 hours (Ref.) Rapid charge: 2 hours (Ref.)
8	Max. charge current	1.0C
9	Max. discharge current	1.0C
10	Discharge cut-off voltage	2.5V ±0.25V (0.2C)
11	Operating temperature	Charging: 0°C ~45°C Discharging: 0°C ~45°C
12	Storage temperature	-10°C ~ +45°C
13	Dimension	Length: 40±2mm (not including tabs) Width: 30±0.5mm Thickness: 6±0.2mm
14	Drop Test	The cell is to be dropped from a height of 1 meter twice onto concrete ground. No fire, no leakage
15	Cycle time	≥500 times

Applications

Portable Devices:

Laptops and Notebooks: Contributes to sleek and lightweight designs
Portable Game Consoles: Enables extended gaming sessions
E-readers: Ensures long reading times on single charge

Industrial and Commercial Applications:

Automated Guided Vehicles (AGVs): Powers navigation in warehouses
Robotics: Provides efficient operation in industrial settings
Tools and Equipment: Increases portability and runtime

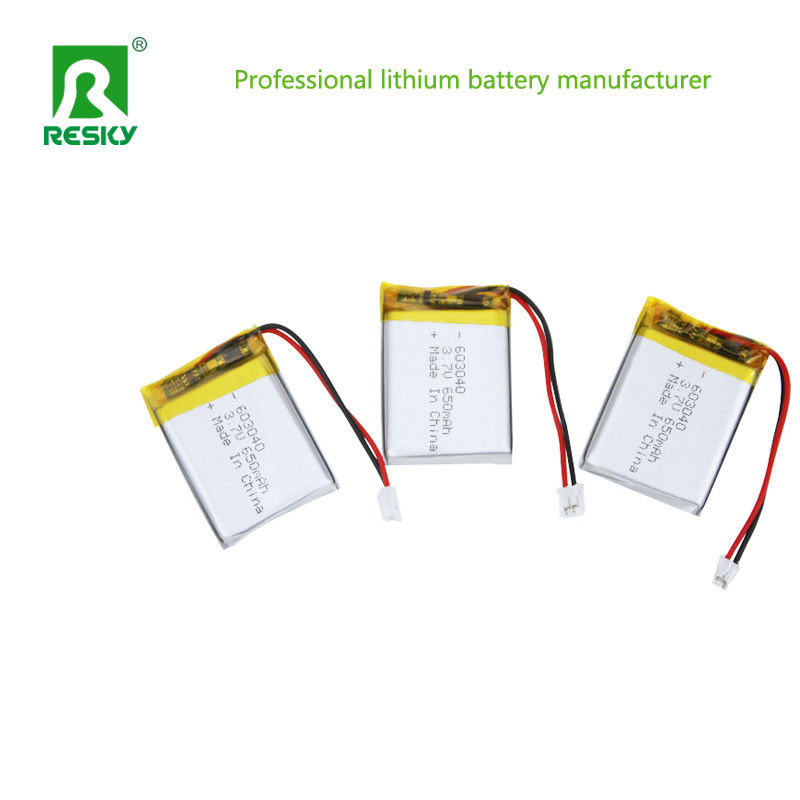

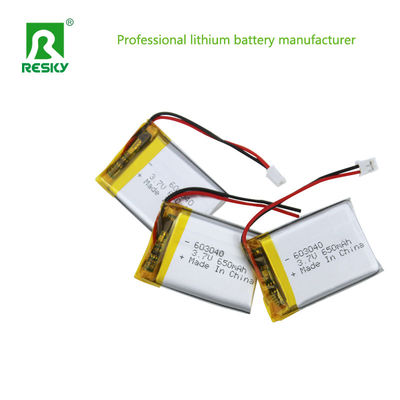

Product Images
