Digital Lithium polymer battery cell 304045 3.7V 500mAh Lipo Battery with PCB

Brand Name:	RESKY
Model Number:	LP304045
MOQ:	10pcs
Price:	Negotiable
Packaging Details:	Paper box
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

CE, RoHS, MSDS, Un38.3

Model NO.:

LP304045

Nominal Capacity:

500mAh

Weight:

10PCS

Cycle Life:

500cycles

Warranty:

12months

Shipping:

UPS, DHL, FedEx, TNT, By Air, By Sea, Special Line

Lead Time:

3-7workdays

Connector:

Jst, Molex....

Specification:

3*40*45mm

Supply Ability:

50000pcs/day

Highlight:

PCB Lithium polymer battery cell

500mAh Lithium polymer battery cell

304045 Lithium polymer battery cell

Product Description

Digital Lithium Polymer Battery Cell 304045 3.7V 500mAh Lipo Battery with PCB

Technical Specifications

NO.	Items	Specifications
1	Batteries	3.7V 500mAh Lipo Battery
2	Charge voltage	4.2V
3	Nominal voltage	3.7V
4	Nominal capacity	500mAh 0.2C Discharge
5	Charge current	Standard Charging: 0.5C Rapid charge: 1.0C
6	Standard Charging method	0.5C CC(constant current) charge to 4.2V, then CV(constant voltage 4.2V) charge till charge current declines to ≤0.05C
7	Charging time	Standard Charging: 2.75 hours (Ref.) Rapid charge: 2 hours (Ref.)
8	Max. charge current	1.0C
9	Max. discharge current	1.0C
10	Discharge cut-off voltage	2.5V 0.25V(0.2C)
11	Operating temperature	Charging: 0°C ~45°C Discharging: 0°C ~45°C
12	Storage temperature	-10°C ~ +45°C
13	Dimension	Length: 45±2mm (not including tabs) Width: 40±0.5mm Thickness: 3±0.2mm
14	Drop Test	The cell is to be dropped from a height of meter twice onto concrete ground. No fire, no leakage
15	Cycle time	≥500 times

Applications

Electric Vehicles (EVs) and Drones:

Electric Scooters and Bicycles: Li-poly batteries offer high energy density, making them ideal for powering electric transportation options.

Drones: These unmanned aerial vehicles use Li-poly batteries to support long flight durations and stable performance.

Electric Cars: While lithium-ion batteries are more common in full-sized EVs, Li-poly batteries have been explored or used in some hybrid and smaller EV models due to their packaging flexibility.

Medical Devices:

Portable Health Monitors: Devices such as heart rate monitors, blood glucose meters, and portable ECG machines often incorporate Li-poly batteries for reliability and patient convenience.

Implantable Devices: In some cases, Li-poly batteries are used in implantable medical devices like pacemakers, though stringent safety and reliability standards must be met.

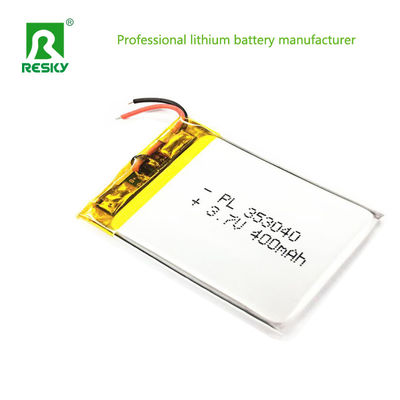

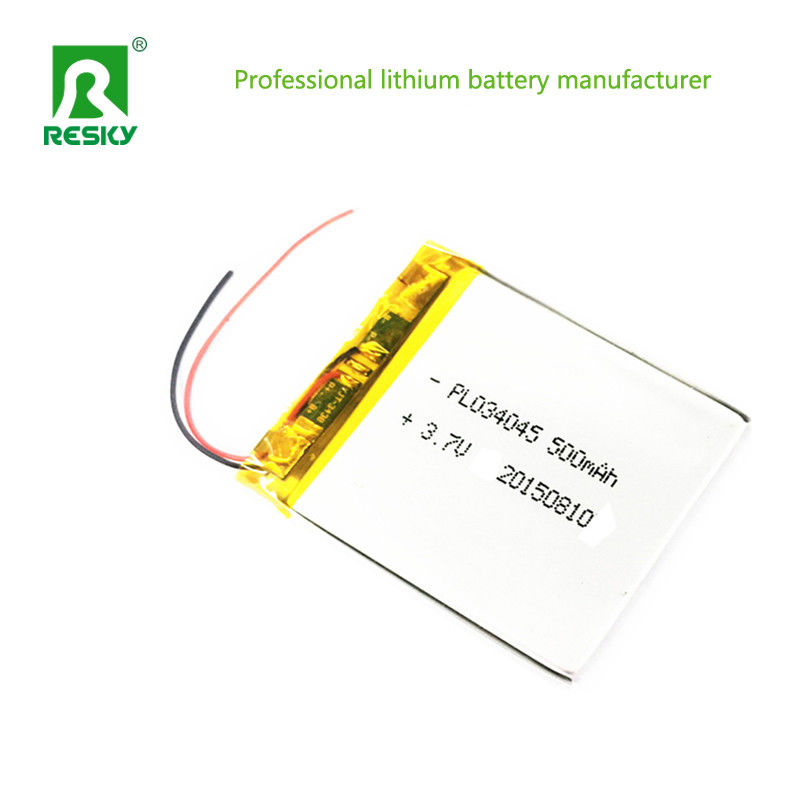

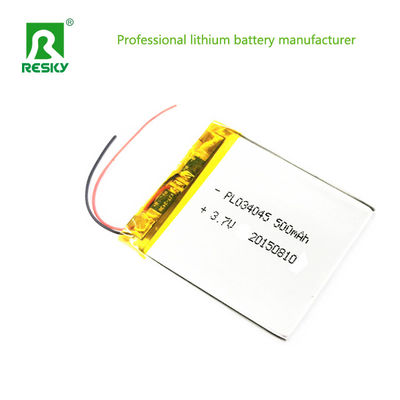

Product Images
