Lithium Polymer Battery Cell

105080 805080 Lithium Ion Polymer Battery 3.7V 5000mAh 18.5wh For Power Bank

All Category

RC Accessories

Mrs. Alice

alice@szresky.com

0086 13530058480

0086 13530058480

Contact Now

105080 805080 Lithium Ion Polymer Battery 3.7V 5000mAh 18.5wh For Power Bank

Brand Name:	RESKY
Model Number:	LP105080
MOQ:	10pcs
Price:	Negotiable
Packaging Details:	Paper box
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Certification:

CE, RoHS, MSDS, Un38.3

Document:

Model NO.:

LP105080

Nominal Capacity:

5000mAh

Continuous Discharging Current:

Max Discharging Current:

Weight:

10PCS

Cycle Life:

500cycles

Specification:

10*50*80mm

HS Code:

8507600090

Supply Ability:

10000PCS/Day

Supply Ability:

50000pcs/day

Highlight:

3.7V Lithium Ion Polymer Battery

18.5wh Lithium Ion Polymer Battery

5000mAh Lithium Ion Polymer Battery

Product Description

105080 805080 Lithium Ion Polymer Battery 3.7V 5000mAh 18.5wh For Power Bank

Technical Specifications

NO.	Items	Specifications
1	Batteries	3.7V 5000mAh LiPo battery
2	Charge voltage	4.2V
3	Nominal voltage	3.7V
4	Nominal capacity	5000mAh @ 0.2C Discharge
5	Charge current	Standard Charging: 0.5C Rapid charge: 1.0C
6	Standard Charging method	0.5C CC charge to 4.2V, then CV (4.2V) charge till current ≤0.05C
7	Charging time	Standard: 2.75 hours (Ref.) Rapid: 2 hours (Ref.)
8	Max. charge current	1.0C
9	Max. discharge current	1.0C
10	Discharge cut-off voltage	2.5V±0.25V (0.2C)
11	Operating temperature	Charging: 0°C ~45°C Discharging: 0°C ~45°C
12	Storage temperature	-10°C ~ +45°C
13	Dimension	Length: 80±2mm (excl. tabs) Width: 50±0.5mm Thickness: 10±0.5mm
14	Drop Test	1m drop onto concrete twice - No fire, no leakage
15	Cycle time	≥500 cycles

Key Advantages

High Energy Density

Lithium polymer battery cells offer significantly higher energy density compared to traditional battery types, enabling them to store more energy per unit weight or volume. This makes them ideal for devices where space is constrained and long operational times are required.

They can store large amounts of energy in compact packages, enabling longer runtimes for portable electronics without significantly increasing size or weight.

Lightweight and Flexible Design

Due to their polymeric composition, these batteries can be designed in various shapes and sizes, offering greater flexibility in device integration. Their lightweight nature helps reduce overall product weight.

The thin, adaptable form factor allows for space-efficient packaging in portable electronics, drones, medical devices, and wearables where weight and size are critical factors.

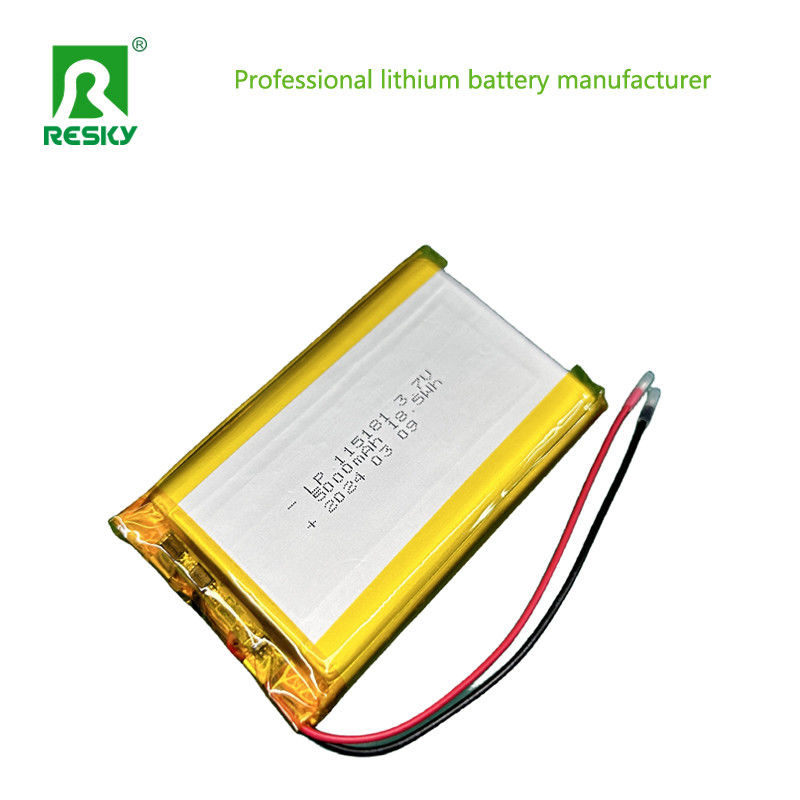

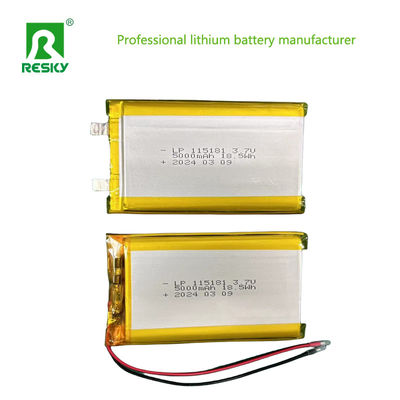

Product Images
