Lithium Polymer Battery Cell

Power Lipo Battery 401230 3.7v 105mAh Rechargeable Lithium Ion Polymer Battery For Smart Watch

All Category

RC Accessories

Mrs. Alice

alice@szresky.com

0086 13530058480

Contact Now

Power Lipo Battery 401230 3.7v 105mAh Rechargeable Lithium Ion Polymer Battery For Smart Watch

Brand Name:	RESKY
Model Number:	LP401230
MOQ:	100PCS
Price:	Negotiable
Packaging Details:	Blister tray packaging with paper box
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, RoHS, MSDS,Un38.3

Charging Cut-off Voltage:

Discharge Rate:

Rated Capacity:

105mAh

Standard Voltage:

Electrolyte:

Li(Nicomn)O2

Charging Current:

Continuous Discharging Current:

Weight:

Storage Time:

Charge Each 6 Months

OEM Service:

Supply Ability:

50000pcs/day

Highlight:

200mAh Lithium Polymer Battery Cell

3.7V Lithium Polymer Battery Cell

Rechargeable Lithium Polymer Battery Cell

Product Description

Product Description

Power Lipo Battery 401230 3.7v 105mAh Rechargeable Lithium Ion Polymer Battery For Smart Watch

NO.	Items	Specifications
1	batteries	3.7v 105mah lipo battery
2	Charge voltage	4.2V
3	Nominal voltage	3.7V
4	Nominal capacity	105mAh 0.2C Discharge
5	Charge current	Standard Charging:0.2C Rapid charge: 1.0C
6	Standard Charging method	0.5C CC(constant current)charge to 4.2V, then CV(constant voltage 4.2V)charge till charge current decline to ≤0.05C
7	Charging time	Standard Charging:2.75hours(Ref.) Rapid charge: 2hours(Ref.)
8	Max.charge current	0.5C
9	Max.discharge current	1.0C
10	Discharge cut-off voltage	2.5V0.25V(0.2C)
11	Operating temperature	Charging: 0 °C ~45 °C Discharging:0 °C ~45 °C
12	Storage temperature	-10°C~ +45 °C
13	Dimension	Length:30±0.5mm (not including tabs) Width:12±0.5mm Thickness:4±0.2mm
14	Drop Test	The cell is to be dropped from a height of meter twice onto concrete ground. No fire, no leakage
15	cycle time	≥500times

Advantages:

Low Self-Discharge Rate

Lithium polymer batteries have a relatively low self-discharge rate, which means they can hold their charge for a longer period of time when not in use. This is beneficial for devices that are not frequently used or for those that need to be stored for an extended period before use. For example, a fully charged lithium polymer battery may lose only a small amount of its charge after several months of storage, whereas other types of batteries may lose a significant portion of their charge over the same period.

High Discharge Rate Capability

They can deliver high current outputs, making them suitable for applications that require rapid energy release, such as power tools and electric vehicles. This high discharge rate capability allows the battery to provide the necessary power to drive the device's motor or other high-power components without significant voltage drop or performance degradation.

Long Cycle Life

With proper charging and discharging management, lithium polymer batteries can withstand a large number of charge-discharge cycles. This means that they can be used for a long time before their capacity significantly degrades. For example, some high-quality lithium polymer batteries can last for hundreds or even thousands of cycles, which is much longer than the cycle life of some other battery chemistries.

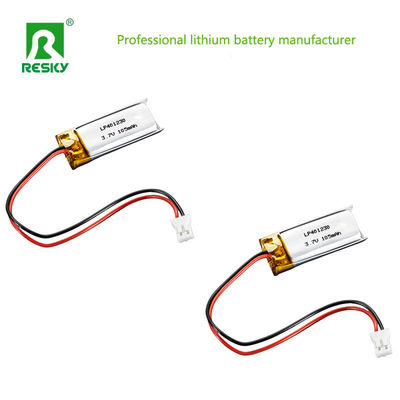

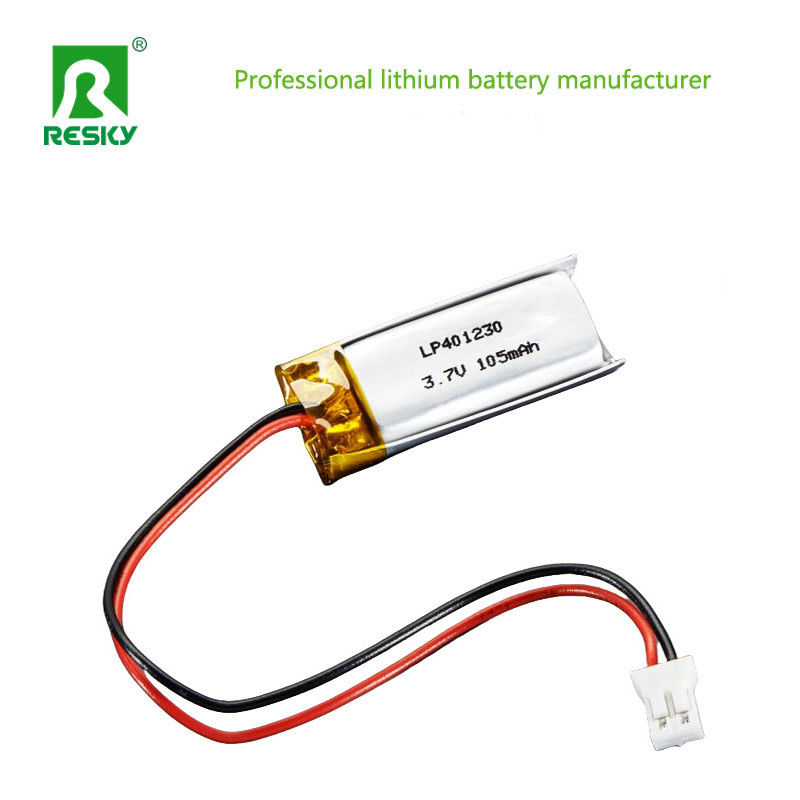

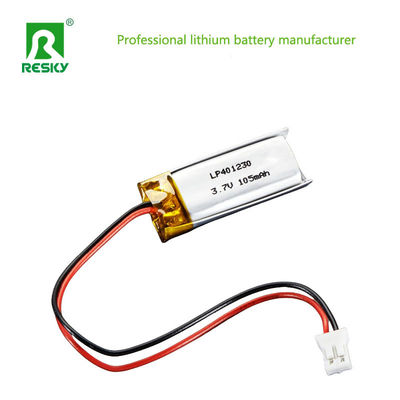

Product pictures:
