Lithium polymer battery cell 105080 805080 3.7V 5000mAh battery for Power Bank

Brand Name:	RESKY
Model Number:	LP105080
MOQ:	10PCS
Price:	Negotiable
Packaging Details:	Blister tray package with paper box
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ROHS,MSDS,UN38.3

Document:

Supply Ability:

50000PCS/DAY

Highlight:

5000mAh Lithium polymer battery cell

3.7V Lithium polymer battery cell

805080 Lithium polymer battery cell

Product Description

Product Description

Lithium polymer battery cell 105080 805080 3.7V 5000mAh battery for Power Bank

NO.	Items	Specifications
1	batteries	3.7v 5000mah lipo battery
2	Charge voltage	4.2V
3	Nominal voltage	3.7V
4	Nominal capacity	5000mAh 0.2C Discharge
5	Charge current	Standard Charging:0.5C Rapid charge: 1.0C
6	Standard Charging method	0.5C CC(constant current)charge to 4.2V, then CV(constant voltage 4.2V)charge till charge current decline to ≤0.05C
7	Charging time	Standard Charging:2.75hours(Ref.) Rapid charge: 2hours(Ref.)
8	Max.charge current	1.0C
9	Max.discharge current	1.0C
10	Discharge cut-off voltage	2.5V0.25V(0.2C)
11	Operating temperature	Charging: 0 °C ~45 °C Discharging:0 °C ~45 °C
12	Storage temperature	-10°C~ +45 °C
13	Dimension	Length:80±2mm (not including tabs) Width:50±0.5mm Thickness:10±0.5mm
14	Drop Test	The cell is to be dropped from a height of meter twice onto concrete ground. No fire, no leakage
15	cycle time	≥500times

Performance and Safety Characteristics

High Discharge Rate Capability: They are capable of delivering high currents and can support rapid charge and discharge cycles. This makes them suitable for applications that require quick bursts of power, such as in digital cameras for taking multiple photos in quick succession or in power tools for delivering high torque.

Good Cycle Life: With proper care and use, lithium polymer battery cells can typically withstand hundreds of charge-discharge cycles before their capacity significantly degrades. This long cycle life makes them a cost-effective choice in the long run for applications that require frequent battery replacement.

Enhanced Safety: They are generally considered to be safer than some other lithium-based battery chemistries. They are less prone to thermal runaway and have built-in safety features such as overcharge protection, overdischarge protection, and short-circuit protection. However, it's important to note that like any battery, they still need to be used and stored properly to ensure safety.

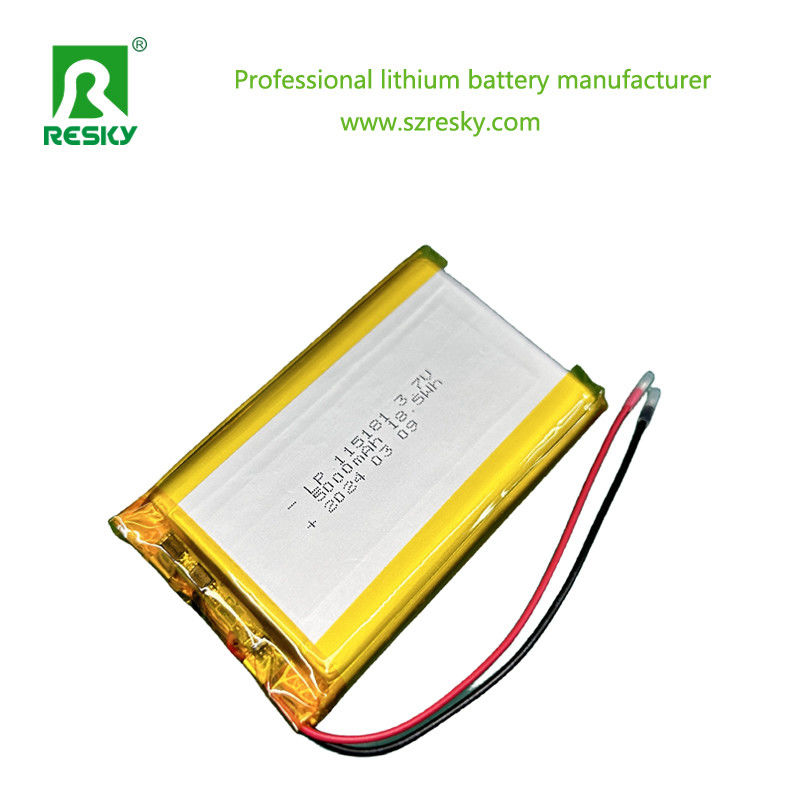

Lithium polymer battery cell 105080 805080 3.7V 5000mAh battery for Power Bank 0

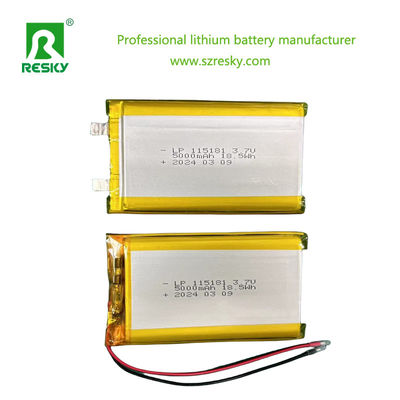

Lithium polymer battery cell 105080 805080 3.7V 5000mAh battery for Power Bank 1

Lithium polymer battery cell 105080 805080 3.7V 5000mAh battery for Power Bank 2

Lithium polymer battery cell 105080 805080 3.7V 5000mAh battery for Power Bank 3

Lithium polymer battery cell 105080 805080 3.7V 5000mAh battery for Power Bank 4
