Lithium Polymer Battery Cell

Power Lithium Polymer Battery Cell 503040 600mAh 3.7V For Smart Watch

All Category

Lithium Polymer Battery Cell

RC Lithium Battery

Li-Ion Battery Pack

Lithium Polymer Battery Pack

Heated Lithium Battery

Electric Bike Battery

RC Balance Charger

Rechargeable Battery Charger

RC Accessories

Mrs. Alice

alice@szresky.com

0086 13530058480

Contact Now

Power Lithium Polymer Battery Cell 503040 600mAh 3.7V For Smart Watch

Brand Name:	RESKY
Model Number:	LP503040
MOQ:	10pcs
Price:	Negotiable
Packaging Details:	Paper box
Payment Terms:	Western Union,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, RoHS, MSDS, Un38.3

Model NO.:

LP503040

Nominal Capacity:

600mAh

Charging Current:

Continuous Discharging Current:

Max Discharging Current:

Weight:

10PCS

Lead Time:

3-7workdays

Connector:

Jst, Molex....

Specification:

5*30*40mm

Supply Ability:

50000pcs/day

Highlight:

503040 Lithium Polymer Battery Cell

600mAh Lithium Polymer Battery Cell

Product Description

Product Description

Power Lithium polymer battery cell 503040 600mAh 3.7V for Smart Watch

NO.	Items	Specifications
1	batteries	3.7v 600mah lipo battery
2	Charge voltage	4.2V
3	Nominal voltage	3.7V
4	Nominal capacity	600mAh 0.2C Discharge
5	Charge current	Standard Charging:0.5C Rapid charge: 1.0C
6	Standard Charging method	0.5C CC(constant current)charge to 4.2V, then CV(constant voltage 4.2V)charge till charge current decline to ≤0.05C
7	Charging time	Standard Charging:2.75hours(Ref.) Rapid charge: 2hours(Ref.)
8	Max.charge current	0.5C
9	Max.discharge current	1.0C
10	Discharge cut-off voltage	2.5V0.25V(0.2C)
11	Operating temperature	Charging: 0 °C ~45 °C Discharging:0 °C ~45 °C
12	Storage temperature	-10°C~ +45 °C
13	Dimension	Length: 40±2mm (not including tabs) Width: 30±0.5mm Thickness:5±0.2mm
14	Drop Test	The cell is to be dropped from a height of meter twice onto concrete ground. No fire, no leakage
15	cycle time	≥500times

Application:

Consumer Electronics:

Smartphones and Tablets: Li-poly batteries are the primary power source for these devices, enabling long battery life and compact designs.

Wearable Devices: From smartwatches to fitness trackers, Li-poly batteries provide the necessary power for extended use without adding significant weight.

Cameras: Digital cameras, especially mirrorless and DSLR models, often use Li-poly batteries to support high-energy operations like continuous shooting and video recording.

Military and Aerospace:

Portable Military Electronics: Li-poly batteries are used in various military devices for their high energy density and reliability.

Satellites and Spacecraft: In aerospace applications, Li-poly batteries are carefully engineered to meet strict safety and performance requirements.

Pictures:

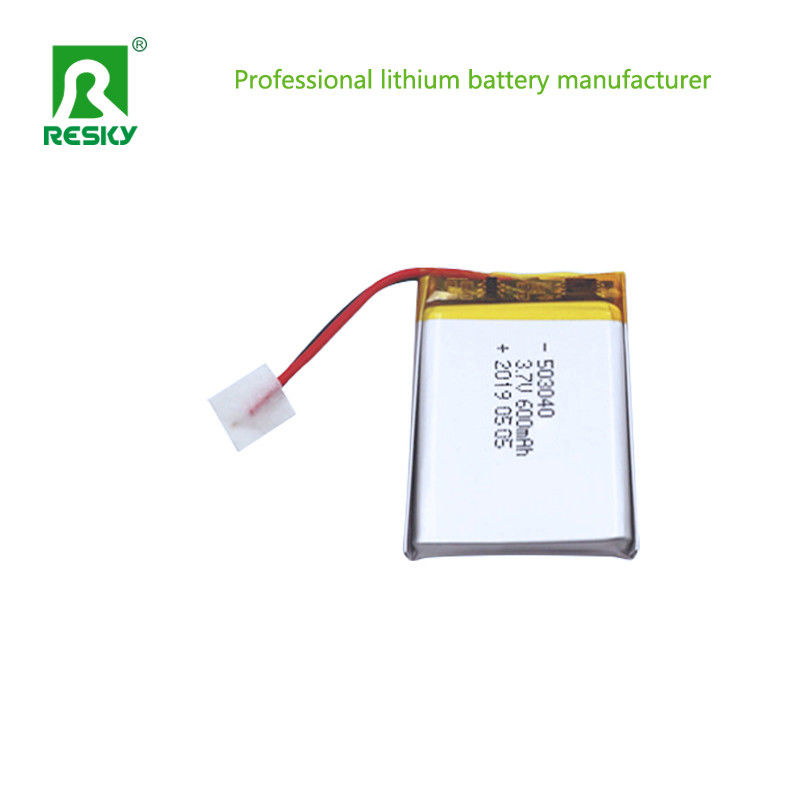

Power Lithium Polymer Battery Cell 503040 600mAh 3.7V For Smart Watch 0

Power Lithium Polymer Battery Cell 503040 600mAh 3.7V For Smart Watch 1

Power Lithium Polymer Battery Cell 503040 600mAh 3.7V For Smart Watch 2

Power Lithium Polymer Battery Cell 503040 600mAh 3.7V For Smart Watch 3

Power Lithium Polymer Battery Cell 503040 600mAh 3.7V For Smart Watch 4
