Li-Ion Battery Pack

LED Light Li-ion Battery Pack 18650 14.8V 4S 2600mAh Lithium Ion Battteries

All Category

RC Accessories

Mrs. Alice

alice@szresky.com

0086 13530058480

0086 13530058480

Contact Now

LED Light Li-ion Battery Pack 18650 14.8V 4S 2600mAh Lithium Ion Battteries

Brand Name:	RESKY
Model Number:	RSK-14.8v2600mAh
MOQ:	10pcs
Price:	Negotiable
Packaging Details:	Paper box
Payment Terms:	Western Union,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, RoHS, MSDS, Un38.3

Rated Capacity:

2600mAh

Standard Voltage:

14.8V

Structure:

Charging Cut-off Voltage:

16.8V

Charging Current:

Discharging Cut-off Voltage:

Continuous Discharging Current:

Weight:

Warranty:

1year

HS Code:

8507600090

Supply Ability:

10000pcs/day

Highlight:

LED Light Li-ion Battery Pack

4S Li-ion Battery Pack

2600mAh Lithium Ion Battteries

Product Description

LED Light Li-ion Battery Pack 18650 14.8V 4S 2600mAh Lithium Ion Batteries

Product Specifications

Attribute	Value
Rated Capacity	2600mAh
Standard Voltage	14.8V
Structure	4s1p
Charging Cut-off Voltage	16.8V
Charging Current	1A
Discharging Cut-off Voltage	12V
Continuous Discharging Current	1A
Weight	268g
Warranty	1 year
HS Code	8507600090

Technical Details

Model: 18650-4S1P

Nominal voltage: 14.8V

Nominal capacity: 2600mAh

Size: customized

Max charge current: 0.5C

Charging method: Constant current 1C to 16.8V, then charge with constant voltage 16.8V till charge current less than 0.01C

Max discharge current: 1C

Discharge cut-off voltage: 12V, the over-discharge detection voltage of PCM

Operating environment: Charging, 0°C ~ 45°C ; 65±20%RH; Discharging, -20°C~60°C ; 65±20%RH

Storage environment: -20°C~45°; 65±20%RH;

Lifespan (80% Prime Capacity): >500 times

Charging Attention: It is dangerous that charging with higher current or voltage than Product Specification may cause damage to the cell electrical, mechanical safety performance.

Product Advantages

Green product
Long standby time
One year warranty
Excellent safety performance
Excellent storage performance and low self-discharge rate
Short circuit testing passed
Overcharge testing passed
Over discharge testing passed
150°C thermal shock test passed
1.2m drop testing passed

Key Features

Provide both single cells and battery packs
100% inspection before delivery
Inspects inner resistance, discharge platform and self-discharge
IEC standard, capacity ranges from 120mAh to 200Ah
Manufacturer of 18650 lithium ion battery, lithium polymer battery etc.
Established quality control systems under ISO9001
Customized packs, tags, labels, plugs, connectors, over current protection, temperature control protection are available

Important Safety Warnings

Do not submerge the battery in the water.
Do not mix fresh batteries with used batteries.
Do not mix batteries with metal stuff together.
Do not insert batteries with the (+) and (-) reversed.
Do not disassemble, dispose in fire, heat or short circuit.
Do not put the battery in a charger or equipment with wrong terminals connected.

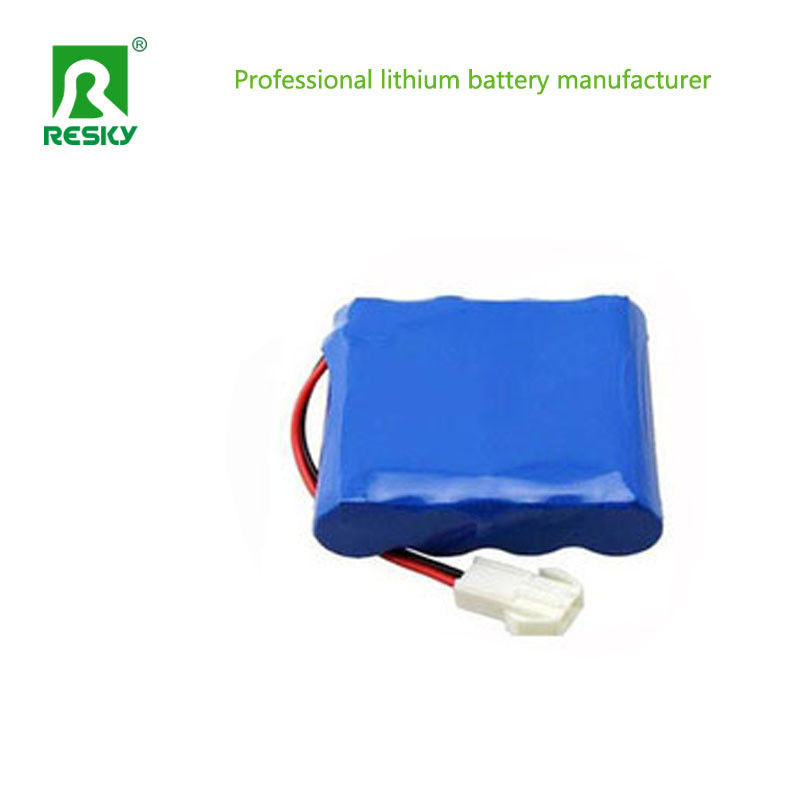

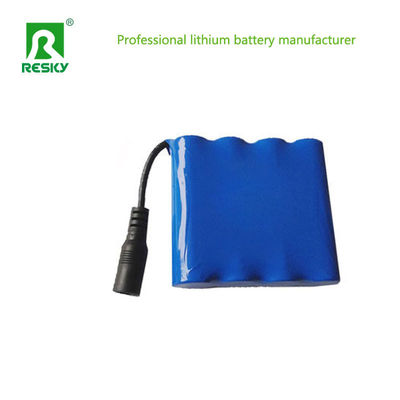

Product Images
