Rechargeable Lifepo4 Battery Cell 502030 3.7v 250mAh 0.925wh Power Lithium Ion Polymer Battery

Brand Name:	RESKY
Model Number:	LP502030
MOQ:	10pcs
Price:	Negotiable
Packaging Details:	Paper box
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, RoHS, MSDS, Un38.3,IEC62133, ECT

Document:

Nominal Capacity:

250mAh

Charging Current:

Continuous Discharging Current:

Max Discharging Current:

Weight:

Cycle Life:

500cycles

Warranty:

12months

Connector:

Jst, Molex....

OEM Service:

Specification:

9*20*40mm

Supply Ability:

50000pcs/day

Highlight:

Rechargeable Lifepo4 battery 3.7v 250mAh

Lithium polymer battery pack 502030 size

Power lithium ion battery with warranty

Product Description

Rechargeable LiFePO4 Battery Cell 502030 3.7V 250mAh 0.925Wh Power Lithium Ion Polymer Battery

Product Specifications

NO.	Items	Specifications
1	Batteries	3.7V 250mAh LiPo battery
2	Charge voltage	4.2V
3	Nominal voltage	3.7V
4	Nominal capacity	250mAh @ 0.2C Discharge
5	Charge current	Standard Charging: 0.5C Rapid charge: 1.0C
6	Standard Charging method	0.5C CC charge to 4.2V, then CV charge till current ≤0.05C
7	Charging time	Standard: 2.75 hours (Ref.) Rapid: 2 hours (Ref.)
8	Max. charge current	1.0C
9	Max. discharge current	1.0C
10	Discharge cut-off voltage	2.75V (0.2C)
11	Operating temperature	Charging: 0°C ~45°C Discharging: 0°C ~45°C
12	Storage temperature	-10°C ~ +45°C
13	Dimension	Length: 50±2mm Width: 20±0.5mm Thickness: 5±0.2mm
14	Drop Test	1m drop onto concrete twice. No fire, no leakage
15	Cycle time	≥500 cycles

Key Features

Strong voltage compatibility: 3.7V nominal voltage is compatible with most low-power devices without additional power supply circuitry.
Safety and durability: Includes protection against overcharge, over-discharge, and short circuits with approximately 500 cycle times and ≤3% monthly self-discharge rate.
Flexible installation: Soft-pack packaging allows slight bending to fit irregular spaces in micro devices.

Main Applications

Smart Wearable Devices: Smart bracelets, GPS watches, motion trackers with 1-2 days of low-power use.

Miniature Digital Devices: Bluetooth headsets, voice recorders, MP3 players, cameras with 3-6 hours of use.

IoT Terminals: Wireless sensors, RFID tags, data collectors with long standby times.

Medical Devices: Blood glucose meters, pulse oximeters, massagers with stable discharge.

Toys and Models: Remote control cars, drones, robots with compact size and low-rate discharge.

Backup Power: Auxiliary power for smart door locks, emergency power for small devices.

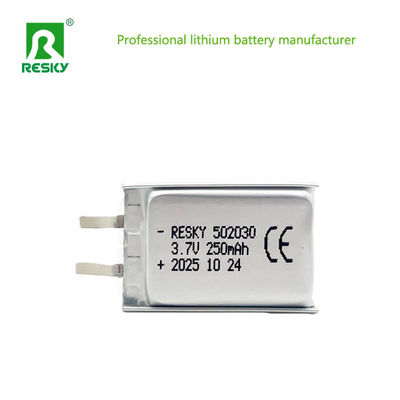

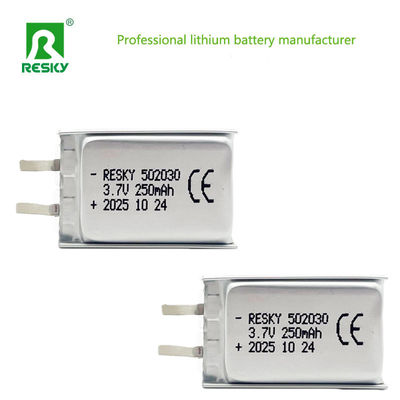

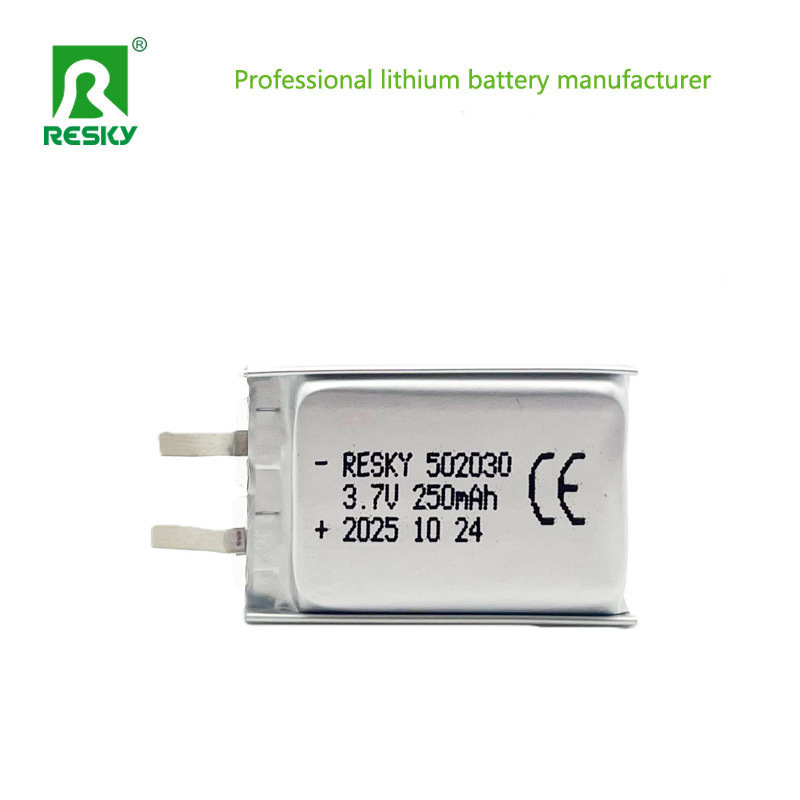

Product Images
