Lithium Polymer Battery Pack

Square Lipo Battery Cell 803450 3.7v 1500mAh 5.55wh Solar Rechargeable Lithium Polymer Battery

All Category

RC Accessories

Mrs. Alice

alice@szresky.com

0086 13530058480

0086 13530058480

Contact Now

Square Lipo Battery Cell 803450 3.7v 1500mAh 5.55wh Solar Rechargeable Lithium Polymer Battery

Brand Name:	RESKY
Model Number:	LP803450
MOQ:	10pcs
Price:	Negotiable
Packaging Details:	Paper box
Payment Terms:	Western Union,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, RoHS, MSDS, Un38.3, IEC62133,ect

Document:

Nominal Capacity:

1500mAh

Charging Current:

Max Discharging Current:

Weight:

10PCS

Cycle Life:

500cycles

Warranty:

12months

Shipping:

DHL, FedEx, TNT, By Air, By Sea

Electrolyte:

Li(Nicomn)O2

Specification:

8*34*50mm

Supply Ability:

50000pcs/day

Highlight:

Square Lipo Battery 3.7v 1500mAh

Solar Rechargeable Lithium Polymer Battery

803450 Lipo Battery with warranty

Product Description

Square Lipo Battery Cell 803450 3.7V 1500mAh 5.55Wh Solar Rechargeable Lithium Polymer Battery

Product Attributes

Nominal Capacity	1500mAh
Charging Current	0.2C
Max Discharging Current	1C
Weight	15g
MOQ	10PCS
Cycle Life	500 cycles
Warranty	12 months
Shipping	DHL, FedEx, TNT, by Air, by Sea
Electrolyte	Li(Nicomn)O2
Specification	8×34×50mm

Technical Specifications

No.	Parameter	Value
1	Batteries	3.7V 1500mAh LiPo battery
2	Charge voltage	4.2V
3	Nominal voltage	3.7V
4	Nominal capacity	1500mAh 0.2C Discharge
5	Charge current	Standard Charging: 0.5C Rapid charge: 1.0C
6	Standard Charging method	0.5C CC charge to 4.2V, then CV charge till current ≤0.05C
7	Charging time	Standard: 2.75 hours Rapid: 2 hours
8	Max. charge current	1.0C
9	Max. discharge current	1.0C
10	Discharge cut-off voltage	2.5V±0.25V (0.2C)
11	Operating temperature	Charging: 0°C~45°C Discharging: 0°C~45°C
12	Storage temperature	-10°C~+45°C
13	Dimension	Length: 50±0.5mm Width: 34±0.5mm Thickness: 8±0.2mm
14	Drop Test	1m drop onto concrete twice - no fire, no leakage
15	Cycle time	≥500 times

Key Features

Slim and Lightweight: Compact 8×34×50mm dimensions and 15g weight enable easy integration into small or flat devices.
High Performance: NCM/NCA ternary cathode provides energy density of 160-180 Wh/kg.
Extended Runtime: 1500mAh capacity supports 6-10 hours continuous use in small devices.
Universal Compatibility: 3.7V standard voltage works with most small electronic device power systems.
Enhanced Safety: Built-in protection against overcharge, over-discharge, and short circuits.
Long Service Life: 500-800 cycles at 0.5C charge/discharge with ≤3% monthly self-discharge.
Flexible Installation: Soft-pack design conforms to irregular device structures with optional pre-installed circuit boards.

Main Applications

Smart Wearables: Smart bracelets, watches, fitness trackers (1-2 days usage)

Audio Devices: Bluetooth speakers, earphone cases, MP3 players (3-8 hours runtime)

Medical Equipment: Pulse oximeters, glucose meters, mini massagers

IoT Devices: Wireless sensors, mini cameras, smart lock power

Outdoor Gear: Mini headlamps, GPS trackers, walkie-talkie backup

Mobile Accessories: Battery cases, wireless chargers, mini power banks

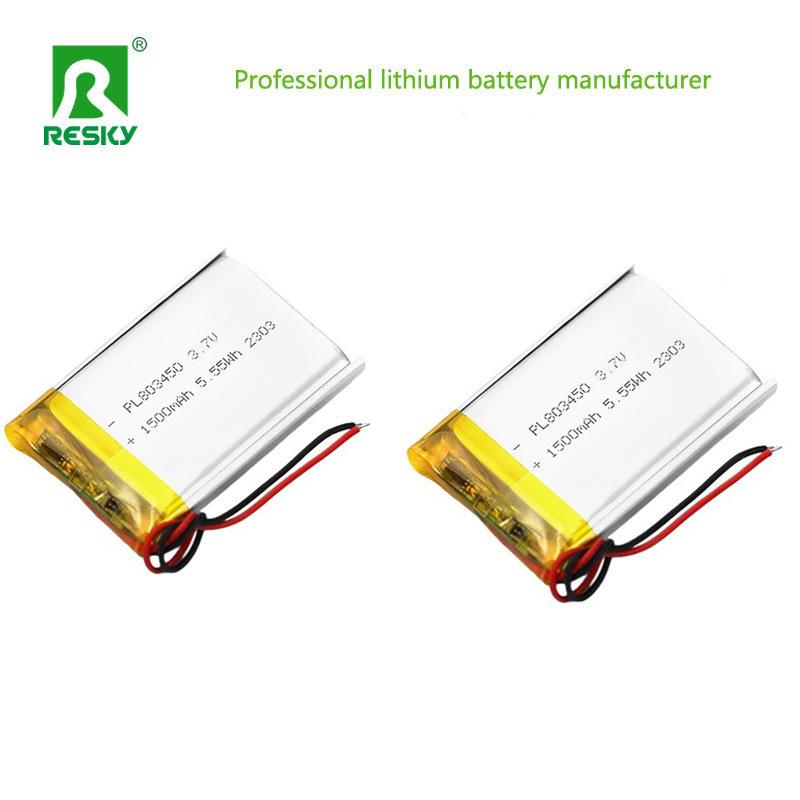

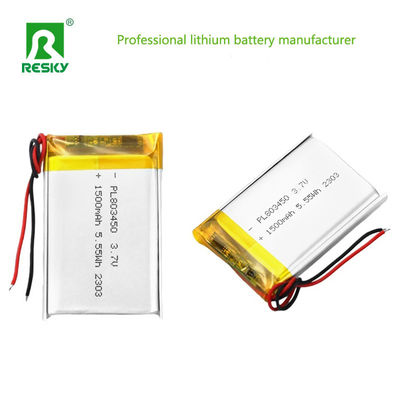

Product Images
