Lithium Polymer Battery Pack

Lithium Battery Cell LP602560 3.7v 4.2v 1000mAh Rechargeable Lipolymer Batteries For GPS Tracker

All Category

RC Accessories

Mrs. Alice

alice@szresky.com

0086 13530058480

0086 13530058480

Contact Now

Lithium Battery Cell LP602560 3.7v 4.2v 1000mAh Rechargeable Lipolymer Batteries For GPS Tracker

Brand Name:	RESKY
Model Number:	LP602560
MOQ:	100pcs
Price:	Negotiable
Packaging Details:	Paper box
Payment Terms:	Western Union,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, RoHS, MSDS, Un38.3, IEC62133,ect

Shape:

Square Battery

Electrolyte:

Li(Nicomn)O2

Rechargeable:

Chargeable

Nominal Capacity:

1000mAh

Weight:

Connector:

Jst, Molex....

Color:

Blue PVC

Specification:

6*25*60mm

HS Code:

8507600090

Supply Ability:

100000PCS/Day

Supply Ability:

50000pcs/day

Highlight:

3.7v lithium polymer battery cell

1000mAh rechargeable battery for GPS tracker

LP602560 lipolymer battery with 4.2v

Product Description

Lithium Battery Cell LP602560 3.7v 4.2v 1000mAh Rechargeable Lipolymer Batteries For GPS Tracker

Product Specifications

NO.	Items	Specifications
1	Batteries	3.7v 1000mAh lipo battery
2	Charge voltage	4.2V
3	Nominal voltage	3.7V
4	Nominal capacity	1000mAh @ 0.2C Discharge
5	Charge current	Standard Charging: 0.2C Rapid charge: 1.0C
6	Standard Charging method	0.5C CC(constant current) charge to 4.2V, then CV(constant voltage 4.2V) charge till charge current decline to ≤0.05C
7	Charging time	Standard Charging: 2.75 hours (Ref.) Rapid charge: 2 hours (Ref.)
8	Max. charge current	0.5C
9	Max. discharge current	1.0C
10	Discharge cut-off voltage	2.5V±0.25V (0.2C)
11	Operating temperature	Charging: 0°C ~45°C Discharging: 0°C ~45°C
12	Storage temperature	-10°C~ +45°C
13	Dimension	Length: 60±0.5mm (not including tabs) Width: 25±0.5mm Thickness: 6±0.2mm
14	Drop Test	The cell is to be dropped from a height of meter twice onto concrete ground. No fire, no leakage
15	Cycle time	≥800 times

Advantages and Disadvantages of Li(NiCoMn)O₂ & LiMn₂O₄ Polymer Batteries

Li(NiCoMn)O₂ Polymer Batteries

Advantages:

Higher Energy Density: Volumetric energy density reaches 450-500Wh/L, 20%-25% higher than Lithium Manganese Oxide at the same size.
Longer Cycle Life: Typical charge and discharge cycle life is 300-500 times (at 80% depth of charge and discharge).
Strong Low-Temperature Adaptability: Discharge efficiency remains at 50%-70% at -20°C.
Excellent Discharge Stability: Over 85% of the battery is in the 3.2-3.7V range, resulting in minimal voltage fluctuations.

Disadvantages:

High Cost: The raw materials contain nickel and cobalt, making them 15%-20% more expensive than lithium manganese oxide.
Safety relies on protection: The thermal runaway temperature is approximately 150-200°C, requiring protection circuit boards.

LiMn₂O₄ Polymer Batteries

Advantages:

Significant Cost Advantage: Contains no nickel and cobalt, and the raw material cost is 15%-20% lower.
Strong Initial Rate Discharge: Instantaneous peak discharge can reach 8C.
Easy Processing: The uniform particles of the positive electrode material make it easy to manufacture thin cells.

Disadvantages:

Short cycle life: Only 200-300 cycles.
Poor high-temperature stability: Annual capacity loss at 60°C reaches 25%-30%.
Low energy density: Volumetric energy density is only 350-400Wh/L.

Applications

Smart Wearables: Medium-Screen Health Watches, Multi-Function Bracelets
IoT Monitoring Devices: Outdoor Temperature and Humidity Sensors, Smart Door Lock Backup Power Supplies
Portable Consumer Electronics: Small Action Cameras, Wireless Microphones
Home Medical Assistive Devices: Portable Blood Oximeters, Mini Nebulizers

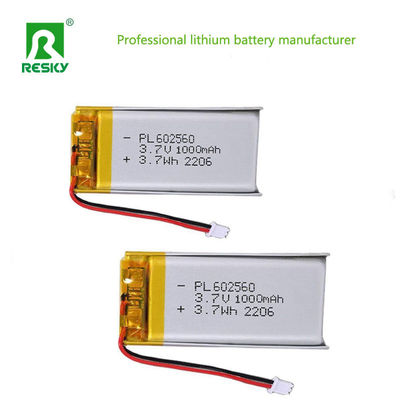

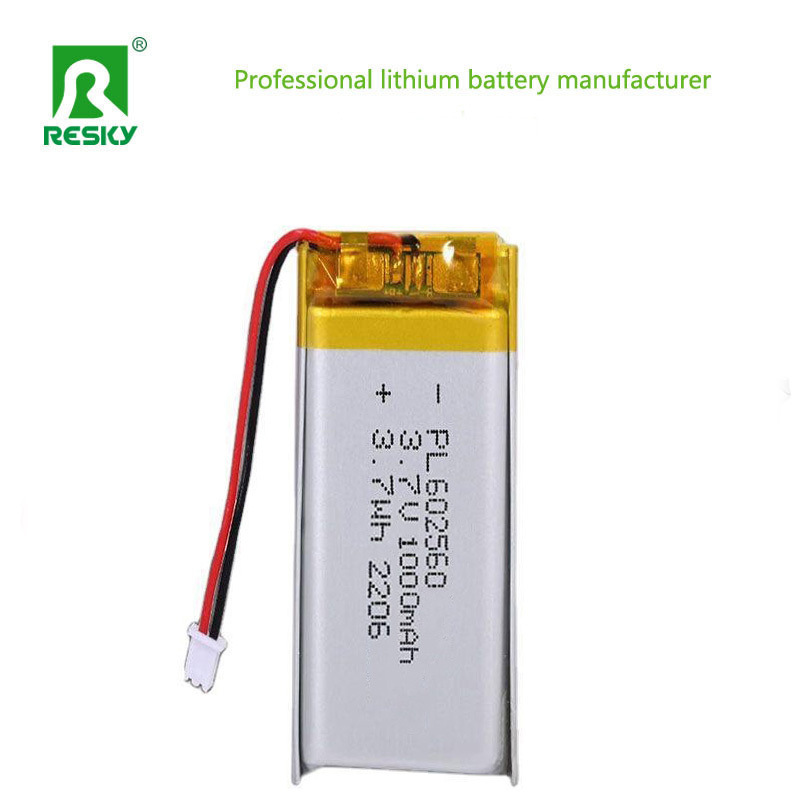

Product Images
